Specifications
Brand Name :
Voltech
Model Number :
AT3600
Place of Origin :
UK
MOQ :
1 set
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
in stock
Insulation resistance :
7000V
Surge testing :
5000V
Condition :
Used
Functions :
Tested, in Full Working Conditions
Description
Voltech AT3600 Automatic Transformer Tester 7000V With Surge Testing 5000V
Product Overview

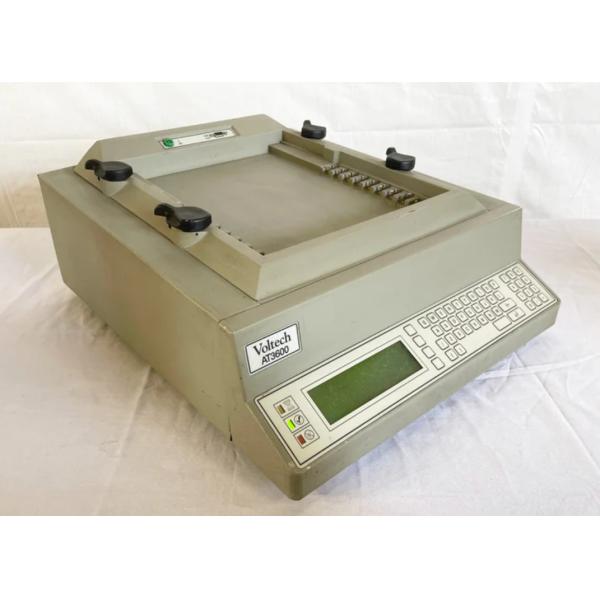

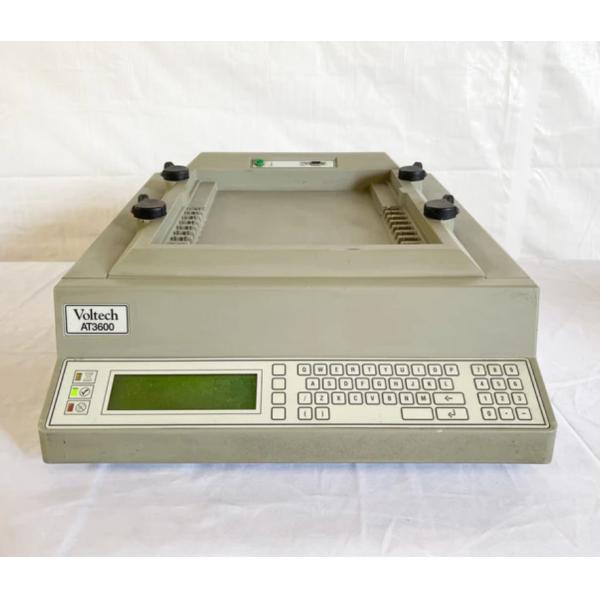

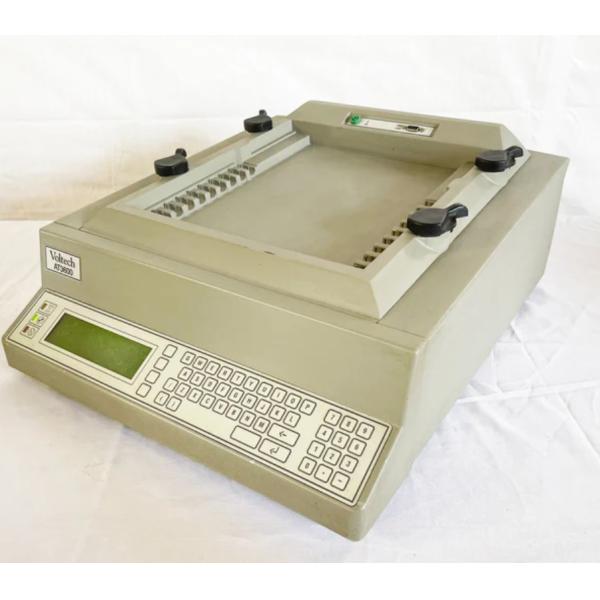

Voltech AT3600 Automatic Transformer Tester 7000V

The AT3600 tester is designed for fast, accurate and reliable testing of transformers and other wound components in production or goods inwards environments. As a complex instrument with multiple setup and usage configurations, it's essential to thoroughly understand the product capabilities to maximize its effectiveness in your specific application.

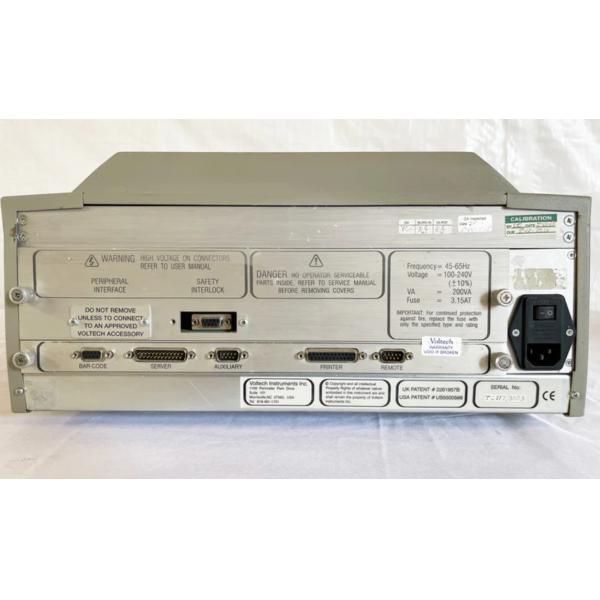

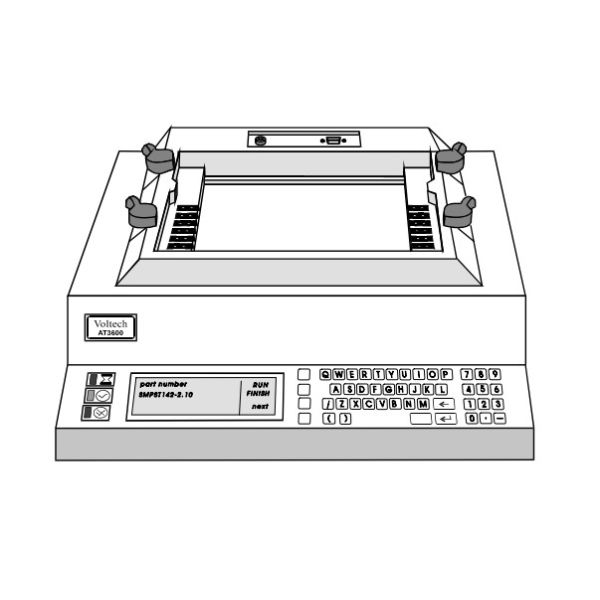

The Voltech AT3600 features ergonomic design for convenient manual operation while fully supporting robotic handling. Versatile interfaces enable connections to printing devices, barcode scanners, safety interlocks, process control devices, and robotic handling systems. Operators can input serial numbers manually or scan barcodes before inserting products into fixtures. The system provides pass/fail verification and downloads test results to central file servers for archiving and management analysis.

Key Features
Fast and extremely accurate: 10 standard tests per second at 0.05% basic accuracy
Integral 20 node matrix for testing 10 windings in 4-wire Kelvin mode
Integral 5kV AC/7kVDC hi-pot testing capability
Easy operation in production lines with clear pass/fail indication
Stand-alone or network capability with PC software
Easy-to-program editor software with graphic winding diagrams
Server software exports results for 100% quality auditing
Comprehensive testing solutions for laminates, ferrites, and measurement needs
System Overview Topics
  • Features and functionality of the AT3600 tester
  • Internal functionality and system architecture
  • Test execution methodology for each test type
  • Test program structure and components
  • Program creation, archiving, and deployment in actual testing
  • Test fixture configurations and compatibility
  • Typical manual and robotic test scenarios
  • Safety systems and protocols
Available Test Programs
R - Winding Resistance
LS - Series Inductance
LP - Parallel Inductance
QL - Q Factor
RLS - Equivalent Series Resistance
RLP - Equivalent Parallel Resistance
LL - Leakage Inductance
C - Capacitance
TR - Turns Ratio
MAGI - Magnetizing Current
VOC - Open Circuit Voltage
IR - Insulation Resistance
LSB - Series inductance with bias
LPB - Parallel inductance with bias
Z - Winding Impedance
TPL - Turn Ratio from Inductance
ILK - Leak Current
WATT - Wattage
SURG - Stress Test - Surge
RLOS - Return Loss
ILOS - Insertion Loss
LBAL - Longitudinal Balance
GBAL - General Long Balance
PHAS - Interwinding Phase
ANGL - Impedance Phase Angle
D - D Factor
LVOC - Low Open Circuit Volts
ZB - Winding Z with Bias
LSBX - Series L with ext bias
LPBX - Parallel L with ext Bias
ZBX - Z with ext Bias
