Agilent 11896A Polarization Controller with 1250 to 1600 nm Wavelength Range, 35 dB² to 55 dB² Optical Return Loss, and >40 dB⁴ Extinction Ratio
Agilent 11896A Polarization Controller with 1250 to 1600 nm Wavelength Range, 35 dB² to 55 dB² Optical Return Loss, and >40 dB⁴ Extinction Ratio
Agilent 11896A Polarization Controller with 1250 to 1600 nm Wavelength Range, 35 dB² to 55 dB² Optical Return Loss, and >40 dB⁴ Extinction Ratio
Agilent 11896A Polarization Controller with 1250 to 1600 nm Wavelength Range, 35 dB² to 55 dB² Optical Return Loss, and >40 dB⁴ Extinction Ratio
Agilent 11896A Polarization Controller with 1250 to 1600 nm Wavelength Range, 35 dB² to 55 dB² Optical Return Loss, and >40 dB⁴ Extinction Ratio
Agilent 11896A Polarization Controller with 1250 to 1600 nm Wavelength Range, 35 dB² to 55 dB² Optical Return Loss, and >40 dB⁴ Extinction Ratio
Agilent 11896A Polarization Controller with 1250 to 1600 nm Wavelength Range, 35 dB² to 55 dB² Optical Return Loss, and >40 dB⁴ Extinction Ratio
Agilent 11896A Polarization Controller with 1250 to 1600 nm Wavelength Range, 35 dB² to 55 dB² Optical Return Loss, and >40 dB⁴ Extinction Ratio
Specifications
Brand Name :
Agilent
Model Number :
11896A
Certification :
ISO17025
Place of Origin :
U.S.A
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T，Western Union
Supply Ability :
In Stock
Delivery Time :
1~3 Working Days
Packaging Details :
Carton
BrandHP 11896A :
Agilent
model name :
HP 11896A
product name :
polarization state controller
Operating wavelength range :
1250 to 1600 nm
Optical return loss :
35 dB² to 55 dB²
Polarization extinction ratio :
>40 dB⁴
Maximum allowable input power :
+23 dBm
Operating temperature :
0℃ to 55℃
Weight :
4.5 kg (10 lb)
Description
Agilent 11896A Polarization Controller, 1250 to 1600 nm Polarization Controller
Product Description
The Agilent 11896A polarization controller provides manual and automatic polarization state adjustments over a wide wavelength range (1250 to 1600 nm). All possible states of polarization are achieved with extremely small optical insertion-loss variations (±0.002 dB). This performance combination maximizes measurement accuracy for power sensitive measurements such as polarization-dependent loss, gain and optical/electrical responsitivity because the measurement uncertainty contributed by the polarization controller is minimized.
Specifications and Characteristics
This section contains specifications and characteristics for the Agilent 11896A polarization controller. The specifications in this chapter apply over the temperature range 0°C to +55°C (unless otherwise noted). All specifications apply after the instrument's temperature has been stabilized after 1 hour continuous operation and self-calibration routines have been run. Fiber pigtail interfaces are assumed for all cases, except where otherwise stated.
Specifications: Specifications describe warranted performance.
Characteristics: Characteristics provide useful, but nonwarranted, information about the functions and performance of the instrument. Characteristics are printed in italics.
Calibration cycle: Agilent Technologies warrants instrument specifications over the recommended calibration interval. To maintain specifications, periodic recalibrations are necessary. We recommend that the Agilent 11896A polarization controller be calibrated at an Agilent Technologies service facility every 24 months.
Available Options
Option Description
Option 010 Deletes FC/PC front-panel connector interfaces
Option 025 One meter pigtail fiber with FC/PC connector interfaces
Frequently Asked Questions
Can you ship the order to Canada or Australia?
Yes, we can. We send orders worldwide.
What delivery method do you use and delivery time?
We can ship by EMS, DHL, FedEx, UPS, and TNT with tracking numbers. The usual delivery time is 4-7 workdays.
What is your payment term?
100% T/T payment before shipment.
How can I ask any other question?
You can contact us online or leave us messages below.

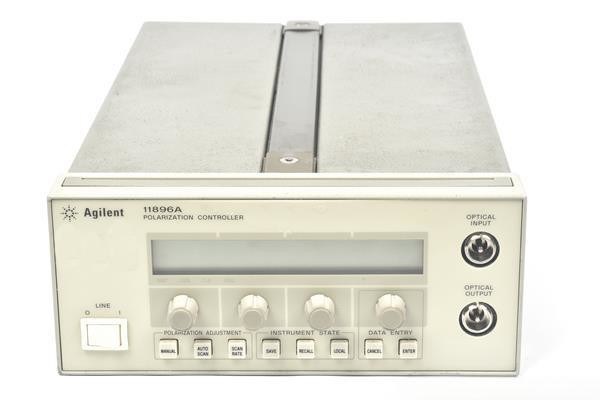

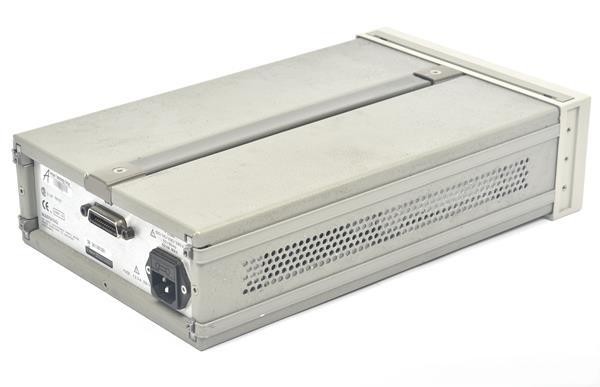

Product Images
Agilent 11896A Polarization Controller with 1250 to 1600 nm Wavelength Range, 35 dB² to 55 dB² Optical Return Loss, and >40 dB⁴ Extinction Ratio Agilent 11896A Polarization Controller with 1250 to 1600 nm Wavelength Range, 35 dB² to 55 dB² Optical Return Loss, and >40 dB⁴ Extinction Ratio Agilent 11896A Polarization Controller with 1250 to 1600 nm Wavelength Range, 35 dB² to 55 dB² Optical Return Loss, and >40 dB⁴ Extinction Ratio Agilent 11896A Polarization Controller with 1250 to 1600 nm Wavelength Range, 35 dB² to 55 dB² Optical Return Loss, and >40 dB⁴ Extinction Ratio
