Specifications
Brand Name :
Boonton
Model Number :
4542
Place of Origin :
USA
MOQ :
1 set
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
in stock
Product name :
RF Power Meter
Condition :
Used
RF Frequency Range :
10 kHz to 40 GHz
Video bandwidth :
70MHz
Functions :
Tested, in Full Working Conditions
RF Channels :
2
Description
Boonton 4542 RF Power Meter Dual Channel 10 kHz to 40 GHz, 5 GS
Product Overview

The Boonton 4542 RF Power Meter is the instrument of choice for capturing, displaying and analyzing RF signals. Applications include pulsed RF signals like radar or GSM-based technologies, as well as pseudorandom, noise-like signals such as CDMA, EVDO, WLAN, WiMAX, UMTS, HSPA, LTE, OFDM or HDTV.

Using Peak Power sensors, the Boonton 4542 can measure true average power of modulated waveforms, while providing important information about the instantaneous peak power value. Large digits allow clear, legible measurement reading. The 4542 has a 4" display providing high resolution and great detail of the signal trace.

The Boonton 4542 offers Pulse, Modulated/CW, and Statistical operating modes, making it well suited for all requirements of R&D, manufacturing and control operations. Features like high dynamic range, rise time of less than 7ns and an effective time resolution of 200 ps provide the greatest detail in signal waveform analysis. A variety of trigger settings, including pre and post trigger in combination with a high sampling rate allow the 4542 to capture any pulse. A wide range of power sensors and voltage probes is available for these instruments.

Key Features
  • 200ps time resolution
  • 7ns rise time
  • Video bandwidth up to 70MHz
  • 17 default presets plus storage for 25 user defined presets
  • Fast statistical analysis including CCDF
  • Text view of up to 14 out of 28 parameters per channel simultaneously (power / voltage, time, statistics, channel math)
  • Bright, clear 4" color LCD display
  • GPIB, LAN, USB device (B-type connector) interfaces
  • High bandwidth, wide dynamic range sensors available
Ordering Information
Model Number Description
4541 RF Power Meter, single channel, front panel input
4542 RF Power Meter, dual channel, front panel inputs
-02 Rear sensor inputs
-03 Calibrator, rear panel output
Accessories
Part Number Description
95403001A 19" Rack Mount Kit
95006201A Transit case, holds the 4540 Series and up to 4 sensors
Frequently Asked Questions
Can you ship orders to Canada or Australia?
Yes, we can. We send orders worldwide.
What delivery method do you use and what is the delivery time?
We can ship by EMS, DHL, FedEx, UPS, TNT with tracking number. Usual delivery time is 4-7 workdays.
What is your payment term?
100% T/T payment before shipment.
How can I ask any other question?
You can contact us online or leave us messages below.

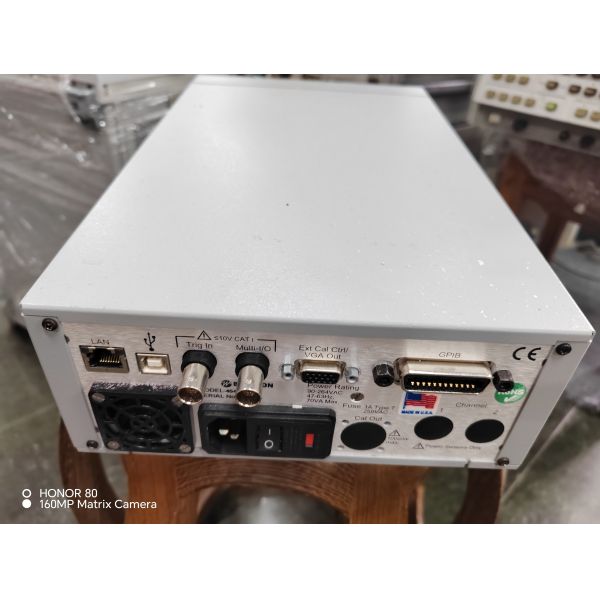

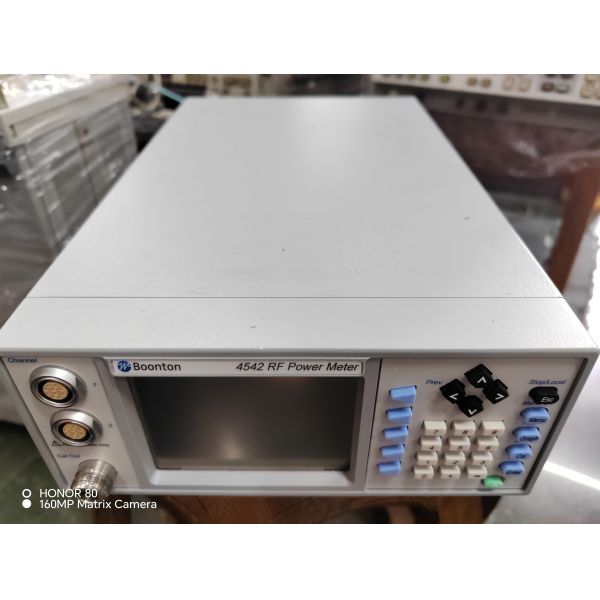

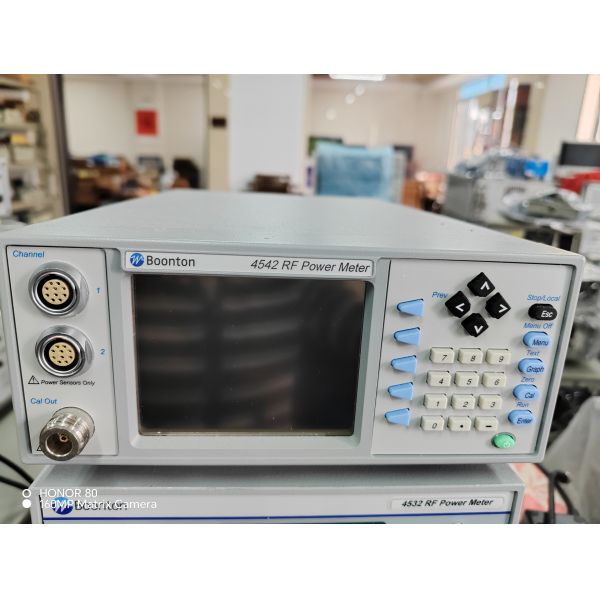

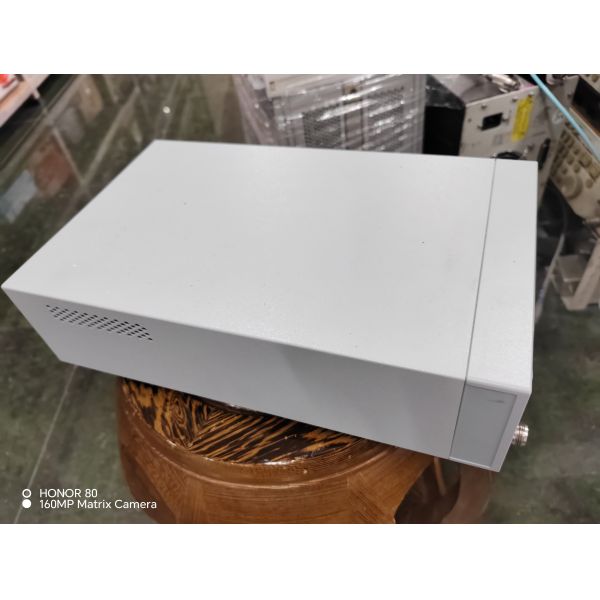

Product Images
