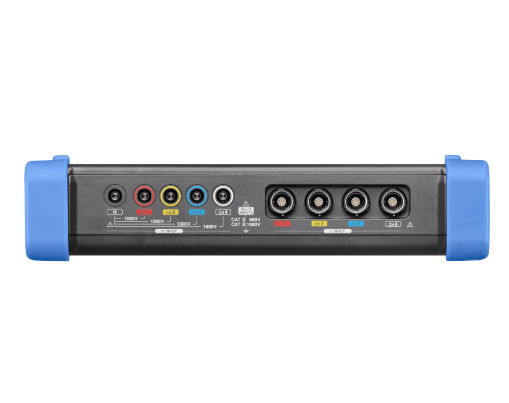

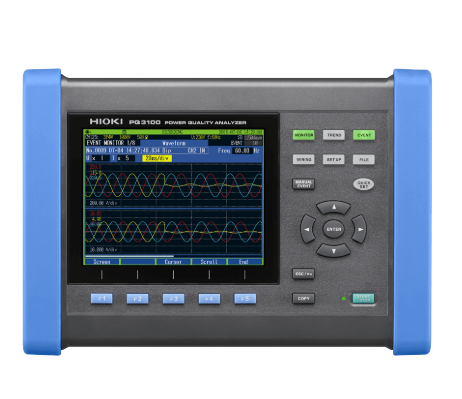

HIOKI PQ3100 3-Phase 4-Wire Power Quality Analyzer with EC61000-4-30 Class S Standards and 200 kHz Sampling Frequency
HIOKI PQ3100 3-Phase 4-Wire Power Quality Analyzer with EC61000-4-30 Class S Standards and 200 kHz Sampling Frequency
HIOKI PQ3100 3-Phase 4-Wire Power Quality Analyzer with EC61000-4-30 Class S Standards and 200 kHz Sampling Frequency
HIOKI PQ3100 3-Phase 4-Wire Power Quality Analyzer with EC61000-4-30 Class S Standards and 200 kHz Sampling Frequency
HIOKI PQ3100 3-Phase 4-Wire Power Quality Analyzer with EC61000-4-30 Class S Standards and 200 kHz Sampling Frequency
HIOKI PQ3100 3-Phase 4-Wire Power Quality Analyzer with EC61000-4-30 Class S Standards and 200 kHz Sampling Frequency
HIOKI PQ3100 3-Phase 4-Wire Power Quality Analyzer with EC61000-4-30 Class S Standards and 200 kHz Sampling Frequency
HIOKI PQ3100 3-Phase 4-Wire Power Quality Analyzer with EC61000-4-30 Class S Standards and 200 kHz Sampling Frequency
Specifications
Brand Name :
HIOKI
Model Number :
PQ3100
Place of Origin :
Japan
MOQ :
1 Piece
Price :
Negotiation
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
In Stock
Delivery Time :
1~3 Working Days
Packaging Details :
Carton
Product Name :
Power Quality Analyzer
Fundamental frequency :
DC/50 Hz/60 Hz
Sampling frequency :
200 kHz for all parameters
Condition :
New
Functions :
Tested, in Full Working Conditions
Warranty :
1 year
Description
HIOKI PQ3100 3-Phase 4-Wire Power Quality Analyzer EC61000-4-30 Class S Standards

HIOKI PQ3100 3-Phase 4-Wire Power Quality Analyzer EC61000-4-30 Class S Standards

Hioki portable power meters and analyzers are best-in-class power measuring instruments for measuring single to three-phase lines with a high degree of precision and accuracy. The PQ3100 is a comprehensive but easy-to-use power quality analyzer for monitoring and recording power supply anomalies, allowing their causes to be quickly investigated, and also for assessing power supply problems such as voltage drops, flicker, harmonics, and other electrical issues.

Key Features
  • Record data including voltage, current, power, harmonics, and flicker simultaneously along a single time axis
  • Measure up to 6000 A AC
  • Capture all power anomalies, including instantaneous outages, voltage drops, and frequency fluctuations, while simultaneously recording trend data
  • Quick Set: Easy-to-understand on-screen guide for measurement procedures
  • Bundled PQ ONE application software makes it easy to create reports
  • Record waveforms for up to 1 second before and 10 seconds after an anomaly occurs
  • Accurately measure DC currents over extended periods of time (with an AC/DC auto-zero current sensor)
  • Directly supply power to connected current sensors
  • Send measured values to Hioki data loggers using a Bluetooth® wireless technology compatible adapter (LR8410 Link-compatible products), Ver. 2.0
Model Specifications
Model Number Description

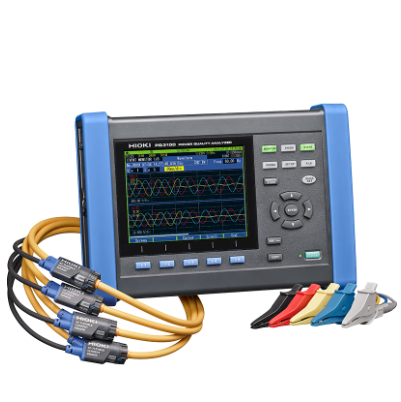

PQ3100 Main unit, current sensor is sold separately
PQ3100-91 Kit includes 600 A sensor x 2 and other options
PQ3100-92 Kit includes 600 A sensor x 4 and other options
PQ3100-94 Kit includes 6000 A sensor x 4 and other options
