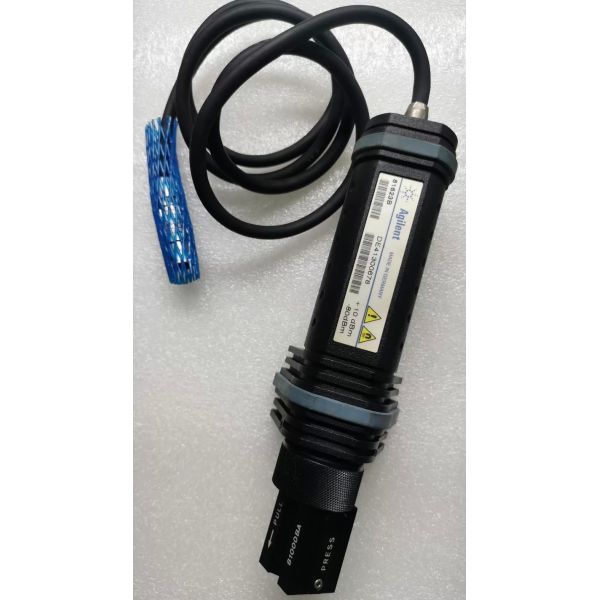

Keysight Agilent 81623B Germanium Optical Power Head 750-1800nm Ge Sensor ISO17025 Calibrated with Certificate
Keysight Agilent 81623B Germanium Optical Power Head 750-1800nm Ge Sensor ISO17025 Calibrated with Certificate
Keysight Agilent 81623B Germanium Optical Power Head 750-1800nm Ge Sensor ISO17025 Calibrated with Certificate
Keysight Agilent 81623B Germanium Optical Power Head 750-1800nm Ge Sensor ISO17025 Calibrated with Certificate
Keysight Agilent 81623B Germanium Optical Power Head 750-1800nm Ge Sensor ISO17025 Calibrated with Certificate
Keysight Agilent 81623B Germanium Optical Power Head 750-1800nm Ge Sensor ISO17025 Calibrated with Certificate
Keysight Agilent 81623B Germanium Optical Power Head 750-1800nm Ge Sensor ISO17025 Calibrated with Certificate
Keysight Agilent 81623B Germanium Optical Power Head 750-1800nm Ge Sensor ISO17025 Calibrated with Certificate
Specifications
Power Range :
+10 dBm to -80 dBm
Condition :
Pre-Owned, Tested in Full Working Condition
Payment Terms :
T/T,PayPal,Western Union
Warranty :
7 Days ROR (Functional Issues)
Supply Ability :
In Stock
Model Number :
81623B
Connector Interface :
Threaded Adapter Ring System
Certification :
ISO 17025 Calibrated with Data Certificate
Price :
Negotiation
Product Type :
Optical Power Head
Place of Origin :
Germany
Delivery Time :
3-7 Working Days
Calibration :
ISO 17025 with Data Certificate Available
MOQ :
1 Set
Packaging Details :
Export-grade double-layer carton with shock-proof foam insert, vacuum-sealed ESD protection
Sensor Type :
Germanium (Ge)
Brand Name :
Keysight / Agilent
Wavelength Range :
750 nm to 1800 nm
Description

Keysight Agilent 81623B Germanium Optical Power Head 750-1800nm Ge Sensor

Product Overview

The Keysight Agilent 81623B is a Germanium (Ge) optical power head designed for precision fiber optic power measurements across the 750 nm to 1800 nm wavelength range. Equipped with a high-sensitivity 5 mm diameter Germanium photodiode, it delivers excellent responsivity in the near-infrared spectrum, making it ideal for both short-wavelength (850 nm multimode) and long-wavelength (1310/1550 nm singlemode) applications. Compatible with the Keysight 816x Lightwave mainframe series. This unit is pre-owned, fully tested, and can be ISO 17025 calibrated with a data certificate upon request.

Key Features & Specifications

  • Wavelength Range: 750 nm to 1800 nm
  • Sensor Type: Germanium (Ge) photodiode, 5 mm diameter
  • Power Range: +10 dBm to -80 dBm typical
  • Uncertainty: ±2.5% typical at reference conditions
  • Wavelength Flatness: Excellent across full wavelength range
  • Broad Spectral Coverage: Covers both 850 nm MM and 1310/1550 nm SM bands

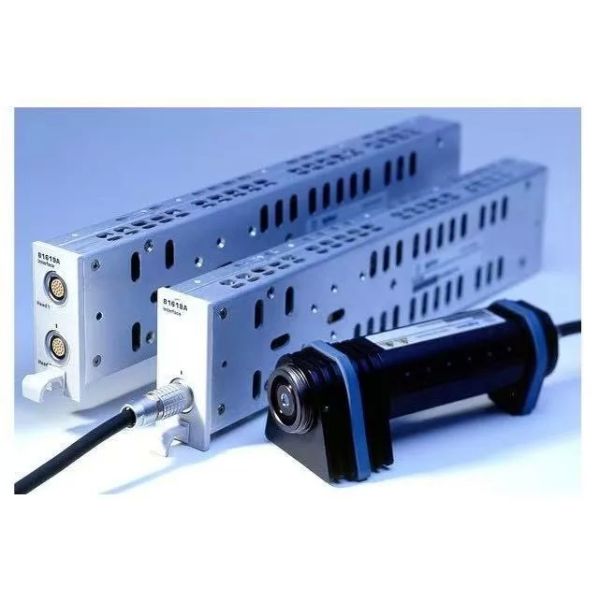

  • Compatibility: Works with Keysight 8163B, 8164B, 8166B Lightwave mainframes
  • Connector Interface: Threaded adapter ring for FC, SC, ST, LC, and bare fiber adapters
  • Condition: Pre-Owned, tested in full working condition

Why Germanium (Ge)?

Germanium sensors offer distinct advantages over silicon-based photodiodes:
