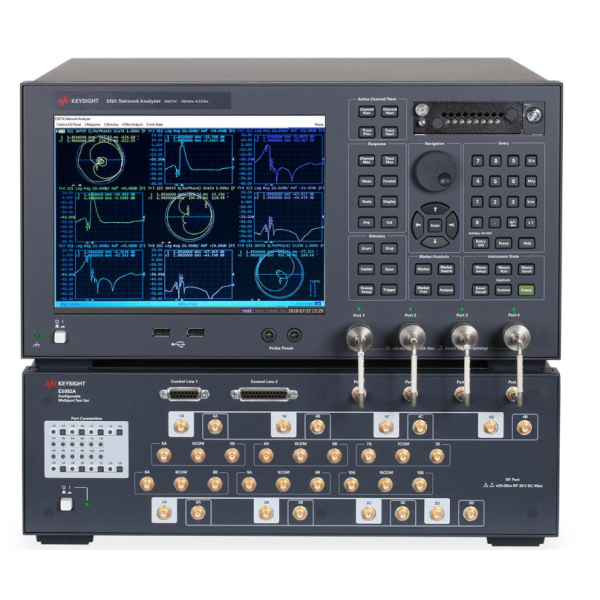

Keysight E5071C ENA Series RF Vector Network Analyzer with 9kHz to 8.5GHz Frequency Range and 123dB Dynamic Range for High Precision S Parameter Measurement
Keysight E5071C ENA Series RF Vector Network Analyzer with 9kHz to 8.5GHz Frequency Range and 123dB Dynamic Range for High Precision S Parameter Measurement
Keysight E5071C ENA Series RF Vector Network Analyzer with 9kHz to 8.5GHz Frequency Range and 123dB Dynamic Range for High Precision S Parameter Measurement
Keysight E5071C ENA Series RF Vector Network Analyzer with 9kHz to 8.5GHz Frequency Range and 123dB Dynamic Range for High Precision S Parameter Measurement
Keysight E5071C ENA Series RF Vector Network Analyzer with 9kHz to 8.5GHz Frequency Range and 123dB Dynamic Range for High Precision S Parameter Measurement
Keysight E5071C ENA Series RF Vector Network Analyzer with 9kHz to 8.5GHz Frequency Range and 123dB Dynamic Range for High Precision S Parameter Measurement
Specifications
Output Power :
-85dBm to +10dBm
Brand Name :
Keysight Technologies
Measurement Speed :
< 45ms per sweep (1601 points)
Frequency Range :
9kHz to 8.5GHz
Dynamic Range :
123dB (typical)
Port Configuration :
2-Port / 4-Port
Trace Noise :
< 0.004dB RMS at 1kHz IFBW
Place of Origin :
Malaysia
Price :
Negotiable
Model Number :
E5071C
Certification :
ISO 17025, CE
MOQ :
1 Set
Packaging Details :
Export-grade foam padded carton with shock-proof protection
Payment Terms :
T/T,PayPal,Western Union
Description
Keysight E5071C ENA Series RF Vector Network Analyzer 9kHz to 8.5GHz High Precision S Parameter Measurement System
Product Overview

The Keysight E5071C ENA series is an industry-standard RF network analyzer that delivers high precision S parameter measurement across a frequency range of 9kHz to 8.5GHz. With 123dB dynamic range and fast sweep speeds, the E5071C is the premier choice for passive and active RF component characterization in R&D, quality assurance, and high-volume manufacturing environments. Its wide dynamic range and low trace noise ensure highly accurate and repeatable measurements for even the most demanding applications.

Key Features
  • Wide frequency coverage from 9kHz to 8.5GHz for comprehensive RF component testing
  • High precision measurement with 123dB dynamic range and less than 0.004dB RMS trace noise
  • Ultra-fast sweep speed of less than 45ms per sweep at 1601 points for production throughput
  • 2-port or 4-port configuration with standard N-type (f) connectors
  • Advanced calibration techniques including full 4-port SOLT and ECal support
  • Built-in bias tee option for active device testing with DC bias
  • Time domain analysis with gating for filter tuning and fault location
  • E5071C code compatibility across ENA family for seamless test program migration
  • Large 10.4-inch LCD touch screen with intuitive user interface
Applications
  • Passive component S parameter measurement (filters, cables, connectors, antennas)
  • Active component characterization (amplifiers, mixers, RF modules)
  • Production line testing with high throughput and repeatability
  • Wireless communication component testing (cellular, WiFi, Bluetooth)
  • PCB trace impedance measurement and signal integrity analysis
  • Material dielectric property measurement
Technical Specifications
Parameter Specification
Frequency Range 9kHz to 8.5GHz
Dynamic Range 123dB (typical at 10Hz IFBW)
Output Power -85dBm to +10dBm
Trace Noise Magnitude < 0.004dB RMS at 1kHz IFBW
Measurement Points 2 to 1601 points per sweep
Port Connectors N-type (f), 50 Ohm
Display 10.4-inch TFT LCD touch screen
Interface GPIB, USB, LAN, VGA
Our Services
  • Complete performance verification and calibration before shipment
  • 90-day standard warranty with extended warranty options available
  • Lifetime technical support and remote setup assistance
  • Worldwide shipping via DHL, FedEx, UPS with full tracking
Frequently Asked Questions
Is the unit fully tested and calibrated?
Yes, each E5071C undergoes full performance verification and ISO 17025 calibration before delivery.
What warranty is included?
We provide a 90-day warranty. Extended warranty options are available.
Do you ship internationally?
Yes, worldwide shipping available via DHL, FedEx, UPS, or TNT.
What payment methods do you accept?
T/T bank transfer, PayPal, and Western Union are accepted.
