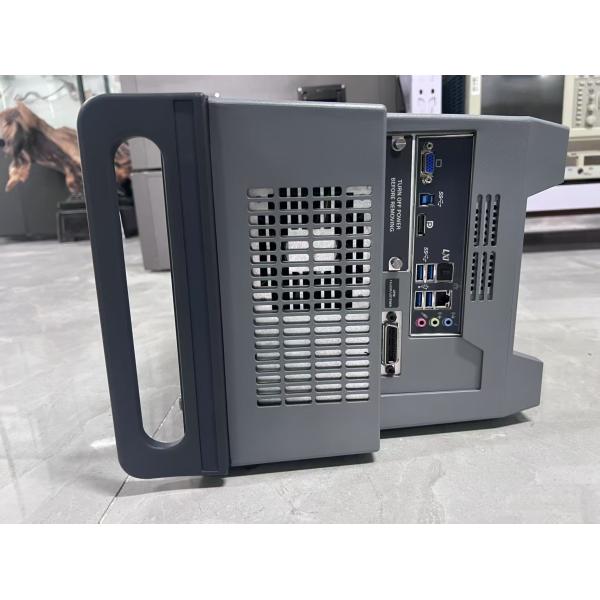

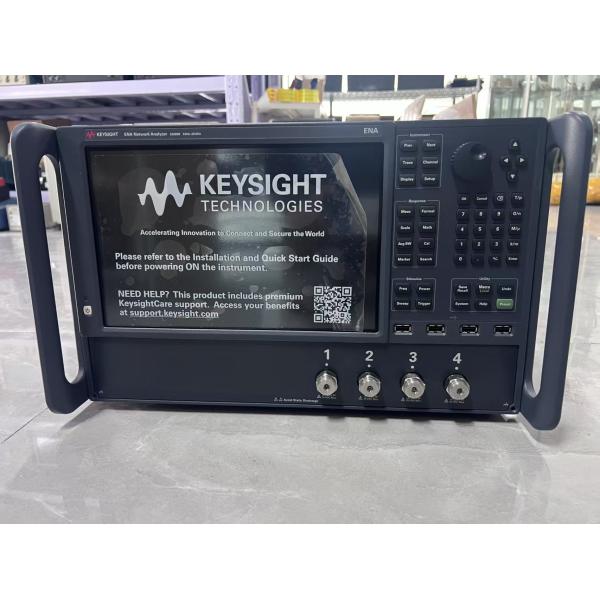

Keysight E5080B 4-port Vector Network Analyzer with 9 kHz to 20 GHz Range and Integrated DC Sources
Keysight E5080B 4-port Vector Network Analyzer with 9 kHz to 20 GHz Range and Integrated DC Sources
Keysight E5080B 4-port Vector Network Analyzer with 9 kHz to 20 GHz Range and Integrated DC Sources
Keysight E5080B 4-port Vector Network Analyzer with 9 kHz to 20 GHz Range and Integrated DC Sources
Keysight E5080B 4-port Vector Network Analyzer with 9 kHz to 20 GHz Range and Integrated DC Sources
Keysight E5080B 4-port Vector Network Analyzer with 9 kHz to 20 GHz Range and Integrated DC Sources
Keysight E5080B 4-port Vector Network Analyzer with 9 kHz to 20 GHz Range and Integrated DC Sources
Keysight E5080B 4-port Vector Network Analyzer with 9 kHz to 20 GHz Range and Integrated DC Sources
Keysight E5080B 4-port Vector Network Analyzer with 9 kHz to 20 GHz Range and Integrated DC Sources
Keysight E5080B 4-port Vector Network Analyzer with 9 kHz to 20 GHz Range and Integrated DC Sources
Specifications
Brand Name :
Keysight
Model Number :
E5080B
Certification :
ISO17025
Place of Origin :
Malaysia
MOQ :
1
Price :
Negotiation
Payment Terms :
Western Union, MoneyGram, T/T
Supply Ability :
In Stock
Delivery Time :
1~3 Working Days
Packaging Details :
Carton
Frequency range :
9 kHz to 20 GHz
VNA Type :
Benchtop
Ports :
4 ports test set
Condition :
New
Description
Keysight E5080B VNA Complete Measurement Solution for Passive Components Amplifiers and Mixers with Integrated DC Sources 4-port test set, 9 kHz to 20 GHz with second source 4K0
Keysight ENA Vector Network Analyzer E5080B 4K0 4 port test set 9 kHz to 20GHz
Product Overview

The Keysight E5080B is the most flexible and integrated ENA network analyzer, featuring the same intuitive GUI as Keysight's high-performance network analyzers with E5071C code compatibility.

  • Frequency range: 9 kHz to 4.5/6.5/9/14/20 GHz, 100 kHz to 26.5/32/44/53 GHz
  • Choose from a wide range of measurement applications to gain deeper insight into your RF test
  • Second source available on 4-port models (Opt. 4x2)
Technical Specifications
Maximum Frequency53 GHz
Minimum Frequency9 kHz / 100 kHz
SA Start Frequency9 kHz / 100 kHz
System Dynamic Range> 140 dB
Output Power10 dBm
Trace Noise0.0015 dBrms (10 kHz IFBW)
Number of Built-In Ports2 or 4 ports (2nd source optional on 4-ports)
Harmonics-25 dBc (Typical)
Best Speed at 201 Point, 1 Sweep1.6 msec
Instrument TypeBenchtop
DANL @1 GHz-150 dBm/Hz (Typical)
Phase Noise @1 GHz (1 MHz offset)-128 dBc/Hz (Typical)
Phase Noise @1 GHz (10 kHz offset)-103 dBc/Hz (Typical)
TOI @1 GHz (3rd Order Intercept)+22 dBm
Temperature Stability0.005 dB/⁰C (Typical)
Weight14 kg (2-port), 15 kg (4-port)
Applications
  • S-Parameters
  • Signal Integrity
  • Balance Measurements
Components
  • Cables
  • Antennas
  • Mixers/Frequency Converters
  • Filters/Duplexers
  • Amplifiers
  • Connectors
  • Isolators
System Features
  • Internal Bias-tees (optional, up to 20 GHz)
  • Built-in DC Sources (optional)
  • GPIB Interface (optional)
  • Device Handler I/O
  • Device Test, Application I/O
  • Removal SSD
  • Digital Interfaces (Ethernet, USB2.0/3.0, DisplayPort)
Available Options for E5080B
Option CodeDescription
021Add pulse modulator to internal 1st source
022Add pulse modulator to internal 2nd source
090Spectrum analysis hardware, 9 kHz to 4.5 GHz
091Spectrum analysis hardware, 9 kHz to 6.5 GHz
092Spectrum analysis hardware, 9 kHz to 9 GHz
093Spectrum analysis hardware, 9 kHz to 14 GHz
094Spectrum analysis hardware, 9 kHz to 20 GHz
095Spectrum analysis hardware, 100 kHz to 26.5 GHz
096Spectrum analysis hardware, 100 kHz to 32 GHz
097Spectrum analysis hardware, 100 kHz to 44 GHz
098Spectrum analysis hardware, 100 kHz to 53 GHz
120Add internal bias tees for 2-port E5080B up to 20 GHz
140Add internal bias tees for 4-port E5080B up to 20 GHz
172Add GPIB interface
175Add analog input and output
1A7Calibration + Uncertainties + Guardbanding
1E5Add high stability timebase
1NCEquipped with type-N connectors
2402-port test set, 9 kHz to 4.5 GHz
2602-port test set, 9 kHz to 6.5 GHz
2902-port test set, 9 kHz to 9 GHz
2D02-port test set, 9 kHz to 14 GHz
2H02-port test set, 9 kHz to 18 GHz
2K02-port test set, 9 kHz to 20 GHz
2L02-port test set, 100 kHz to 26.5 GHz
2M02-port test set, 100 kHz to 32 GHz
2N02-port test set, 100 kHz to 44 GHz
2P02-port test set, 100 kHz to 53 GHz
4404-port test set, 9 kHz to 4.5 GHz
4424-port test set, 9 kHz to 4.5 GHz with second source
4604-port test set, 9 kHz to 6.5 GHz
4624-port test set, 9 kHz to 6.5 GHz with second source
4904-port test set, 9 kHz to 9 GHz
4924-port test set, 9 kHz to 9 GHz with second source
4D04-port test set, 9 kHz to 14 GHz
4D24-port test set, 9 kHz to 14 GHz with second source
4H04-port test set, 9 kHz to 18 GHz
4H24-port test set, 9 kHz to 18 GHz with second source
4K04-port test set, 9 kHz to 20 GHz with second source
4K24-port test set, 9 kHz to 20 GHz with second source
4L04-port test set, 100 kHz to 26.5 GHz
4L24-port test set, 100 kHz to 26.5 GHz with second source
4M04-port test set, 100 kHz to 32 GHz
4M24-port test set, 100 kHz to 32 GHz with second source
4N04-port test set, 100 kHz to 44 GHz
4N24-port test set, 100 kHz to 44 GHz with second source
4P04-port test set, 100 kHz to 53 GHz
4P24-port test set, 100 kHz to 53 GHz with second source
A6JANSI Z540-1-1994 Calibration
S96007A/BAutomatic Fixture Removal
S96010A/BTime Domain Analysis
S96011A/BEnhanced Time Domain Analysis with TDR
S96025A/BBasic Pulsed-RF Measurements
S96029A/BNoise Figure Measurements with Vector Correction
S96082A/BScalar Mixer/Converter Measurements
S96083A/BVector and Scalar Mixer/Converter Measurements
S96084A/BEmbedded LO Capability
S96086A/BGain-Compression Measurements
S96089BDifferential and I/Q Device Measurements
S96090A/BSpectrum Analysis
S96552BMultiport Calibration Assistant
U8487A10 MHz - 50 GHz USB Thermocouple Power Sensor
WIN10Windows 10 Operating System
Keysight E5080B 4-port Vector Network Analyzer with 9 kHz to 20 GHz Range and Integrated DC SourcesKeysight E5080B 4-port Vector Network Analyzer with 9 kHz to 20 GHz Range and Integrated DC SourcesKeysight E5080B 4-port Vector Network Analyzer with 9 kHz to 20 GHz Range and Integrated DC Sources
