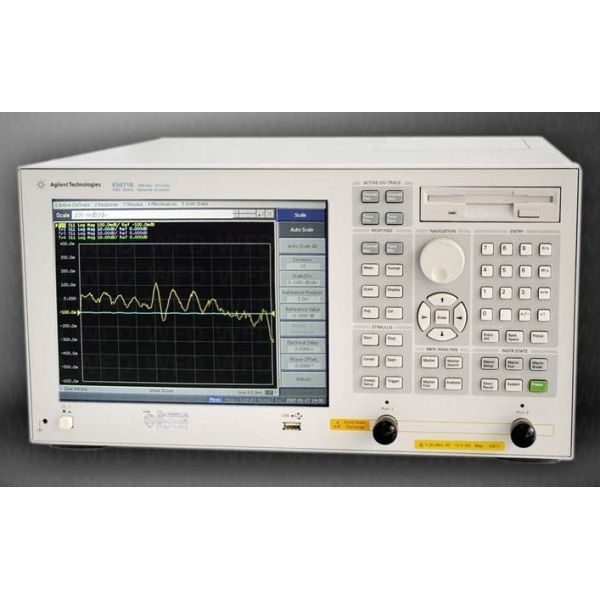

Agilent E5071B 2-Port ENA RF Network Analyzer with 300 kHz to 8.5 GHz Range, 9.6 Microsecond Sweep Speed, and 16-Channel Display
Agilent E5071B 2-Port ENA RF Network Analyzer with 300 kHz to 8.5 GHz Range, 9.6 Microsecond Sweep Speed, and 16-Channel Display
Agilent E5071B 2-Port ENA RF Network Analyzer with 300 kHz to 8.5 GHz Range, 9.6 Microsecond Sweep Speed, and 16-Channel Display
Agilent E5071B 2-Port ENA RF Network Analyzer with 300 kHz to 8.5 GHz Range, 9.6 Microsecond Sweep Speed, and 16-Channel Display
Agilent E5071B 2-Port ENA RF Network Analyzer with 300 kHz to 8.5 GHz Range, 9.6 Microsecond Sweep Speed, and 16-Channel Display
Agilent E5071B 2-Port ENA RF Network Analyzer with 300 kHz to 8.5 GHz Range, 9.6 Microsecond Sweep Speed, and 16-Channel Display
Specifications
Sweep Speed :
9.6 microsecond per point
Measurement Points :
2 to 20,001
Place of Origin :
Malaysia
Supply Ability :
In stock
Payment Terms :
T/T,L/C,PayPal
Output Power Range :
-50 dBm to +10 dBm
Programming :
Built-in VBA macro automation
Model Number :
E5071B
Test Port Connector :
Type N, female
Price :
Request a Quote
Frequency Range :
300 kHz to 8.5 GHz
Measurement Channels :
Up to 16 independent channels
Certification :
CE, CSA, IEC 61010-1
MOQ :
1 Piece
Impedance :
50 Ohm
IF Bandwidth :
10 Hz to 100 kHz
Display :
10.4 inch Color LCD
Delivery Time :
3-5 Weeks
Number of Test Ports :
2
Handler I/O :
Built-in for parts handler integration
Brand Name :
Agilent / Keysight
Description
Agilent E5071B 2-Port ENA RF Network Analyzer 300 kHz to 8.5 GHz High-Speed Production VNA
Agilent E5071B 2-Port ENA RF Network Analyzer

The Agilent E5071B ENA series RF network analyzer is engineered for high-throughput production testing from 300 kHz to 8.5 GHz. With ultra-fast sweep speeds, built-in automation, and comprehensive multi-channel capabilities, this 2-port VNA minimizes test time and maximizes production yield.

Key Features
  • 9.6 microsecond per point sweep speed: Industry-leading measurement throughput for production lines
  • 16-channel multi-window display: Run independent measurement setups simultaneously
  • Built-in VBA macro automation: Macro Setup/Run/Break keys for automated test sequences
  • Handler I/O interface: High-speed handshake with parts handler for automated sorting
  • Full 2-port SOLT calibration: Complete error correction for accurate pass/fail testing
  • GPIB, USB, LAN interfaces: Flexible integration into any test system architecture
Technical Specifications
Parameter Specification
Frequency Range 300 kHz to 8.5 GHz
Test Port Connector Type N, female
Number of Ports 2
Impedance 50 Ohm
Sweep Speed 9.6 microsecond per point
System Dynamic Range 125 dB typ. at 10 Hz IFBW
Output Power Range -50 dBm to +10 dBm
IF Bandwidth 10 Hz to 100 kHz
Measurement Points 2 to 20,001
Display 10.4 inch Color LCD
Interfaces GPIB, USB (USBTMC), LAN 10/100 Base-T, Handler I/O, VGA
Applications
  • High-volume RF filter production testing
  • Automated pass/fail component sorting with handler integration
  • Multi-channel parallel device characterization
  • Antenna switch module production verification
  • Duplexer and coupler manufacturing test
Contact us for pricing and availability on the Agilent E5071B ENA production network analyzer.
