Chroma 19073 Hipot Tester with 1M to 50G Insulation Resistance 5kV AC and 6kV DC Output Fast Cut-off 0.4ms
Chroma 19073 Hipot Tester with 1M to 50G Insulation Resistance 5kV AC and 6kV DC Output Fast Cut-off 0.4ms
Chroma 19073 Hipot Tester with 1M to 50G Insulation Resistance 5kV AC and 6kV DC Output Fast Cut-off 0.4ms
Chroma 19073 Hipot Tester with 1M to 50G Insulation Resistance 5kV AC and 6kV DC Output Fast Cut-off 0.4ms
Chroma 19073 Hipot Tester with 1M to 50G Insulation Resistance 5kV AC and 6kV DC Output Fast Cut-off 0.4ms
Chroma 19073 Hipot Tester with 1M to 50G Insulation Resistance 5kV AC and 6kV DC Output Fast Cut-off 0.4ms
Chroma 19073 Hipot Tester with 1M to 50G Insulation Resistance 5kV AC and 6kV DC Output Fast Cut-off 0.4ms
Chroma 19073 Hipot Tester with 1M to 50G Insulation Resistance 5kV AC and 6kV DC Output Fast Cut-off 0.4ms
Chroma 19073 Hipot Tester with 1M to 50G Insulation Resistance 5kV AC and 6kV DC Output Fast Cut-off 0.4ms
Chroma 19073 Hipot Tester with 1M to 50G Insulation Resistance 5kV AC and 6kV DC Output Fast Cut-off 0.4ms
Chroma 19073 Hipot Tester with 1M to 50G Insulation Resistance 5kV AC and 6kV DC Output Fast Cut-off 0.4ms
Chroma 19073 Hipot Tester with 1M to 50G Insulation Resistance 5kV AC and 6kV DC Output Fast Cut-off 0.4ms
Specifications
Brand Name :
Chroma
Model Number :
19073
Certification :
ce
Place of Origin :
TAIWAN
MOQ :
1 set
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
in stock
Packaging Details :
carton
Product name :
Hipot Tester
Form Factor :
Rackmount
Measurement Frequency Range :
50 MHz
Condition :
Pre-Owned
Functions :
Tested, in Full Working Conditions
Color :
Grey
Description
Chroma 19073 Hipot Tester Insulation Resistance Measurement From 1M To 50G
Chroma 19073 Hipot Tester AC/DC/IR HIPOT TESTER
Product Overview

The Chroma 19073 Hipot Tester is a compact, three-in-one instrument combining AC Hipot, DC Hipot, and Insulation Resistance testing capabilities. Designed to meet UL, CSA, TUV, VDE, and CE safety test requirements, this tester provides reliable and stable results for comprehensive electrical safety testing.

Key Features
  • Compact size Hipot tester
  • Three instruments in one: AC Hipot, DC Hipot, Insulation Resistance
  • Meets UL, CSA, TUV, VDE, CE safety test requirements
  • Fast cut-off: 0.4 ms, fast discharge: within 0.2 sec
  • Provides reliable and stable test results
  • Storage of 10 Tests Setups with 60 Steps per setup
  • Compatible with the model 19570 Ground Bond Tester
  • Open/Short Check (OSC)
  • Ground Fault Interrupt (GFI)
Technical Specifications
  • AC/DC/IR 3 in 1 hipot tester
  • AC 5kV and DC 6kV output
  • 1kV insulation resistance test
  • Insulation resistance measurement from 1M to 50G
  • Ground continuity check
  • Open Short Check (OSC) function
  • GFI shutdown the instrument when imbalance current > 0.5mA
  • Flashover (ARC) detection
  • NIST Calibration included
Open Short Check (OSC)

The O.S.C function is used to check whether the connection is open, or a short circuit, between the instrument and DUT (device under test) before the Electrical Safety Test is performed. If the connection is bad between the instrument and DUT, like bad leads or relay oxidation, the test may result in a PASS determination. In some cases, the DUT has a short before testing. Testing continually leads to instrumentation damage due to it suffering the high load current. Therefore, we check for the open and short circuit to ensure the test is effective and to protect the instruments.

Panel Description

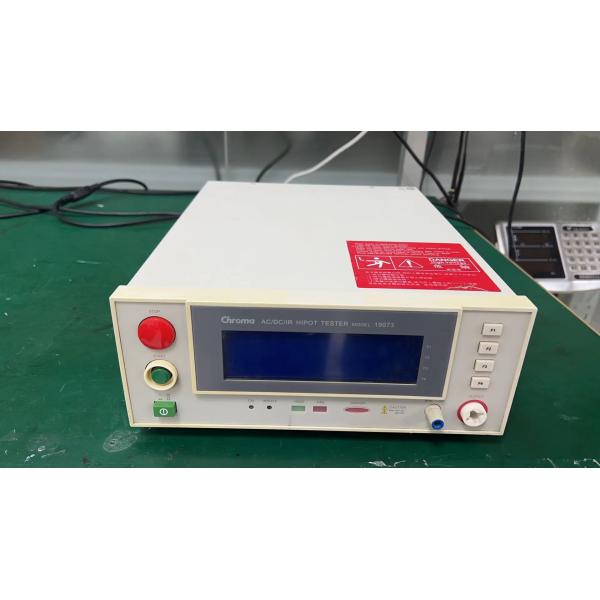

Front Panel:
1. LINE Switch
2. Window Display
3. Stop Button
4. Start Button
5. Function Keys (F1~F4)
6. Pass Indicator
7. Fail Indicator
8. Test Indicator
9. HV Output
10. RTN/LOW

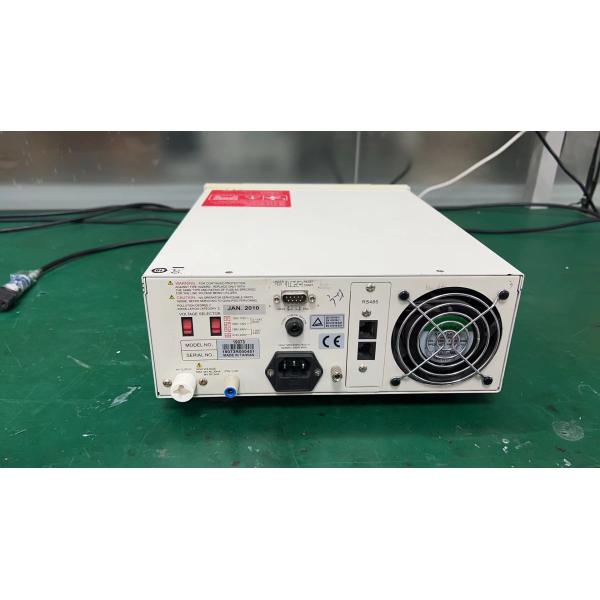

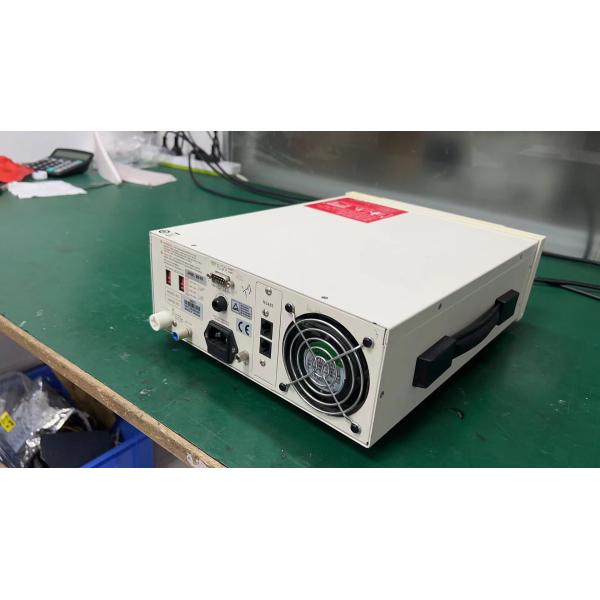

11. 8 channels HV Output (19053 only) 		Rear Panel:
12. Remote I/O
13. LINE Voltage Selector
14. Power Cord Receptacle
15. RTN/LOW
16. GPIB/Printer Interface (Option)
17. Scan Interface (Option)
18. Fan
19. Remote Interface
20. RS-232 Interface
21. Continuity Test O/P
Chroma 19073 Hipot Tester with 1M to 50G Insulation Resistance 5kV AC and 6kV DC Output Fast Cut-off 0.4ms
Available Options

RS-232 Interface

Chroma 19073 Hipot Tester with 1M to 50G Insulation Resistance 5kV AC and 6kV DC Output Fast Cut-off 0.4ms Chroma 19073 Hipot Tester with 1M to 50G Insulation Resistance 5kV AC and 6kV DC Output Fast Cut-off 0.4ms Chroma 19073 Hipot Tester with 1M to 50G Insulation Resistance 5kV AC and 6kV DC Output Fast Cut-off 0.4ms Chroma 19073 Hipot Tester with 1M to 50G Insulation Resistance 5kV AC and 6kV DC Output Fast Cut-off 0.4ms
Frequently Asked Questions
1. Can you ship order to Canada or Australia?

Yes, we can. We send orders worldwide.

2. What delivery method do you use and delivery time?

We can ship by EMS, DHL, FedEx, UPS, TNT with tracking number. Usual delivery time is 4-7 workdays.

3. What is your payment term?

100% T/T payment before shipment.

4. How can I ask any other question?

You can contact us online or leave us messages below.
