Specifications
Brand Name :
Rohde & Schwarz
Model Number :
ZNA43
Certification :
CNAS
Place of Origin :
Germany
MOQ :
1
Price :
Negotiation
Payment Terms :
Western Union, MoneyGram, T/T
Supply Ability :
In Stock
Delivery Time :
1~3 Working Days
Packaging Details :
Carton
PORTS :
four port
FREQUENCY :
10 MHz to 43.5 GHz
Description

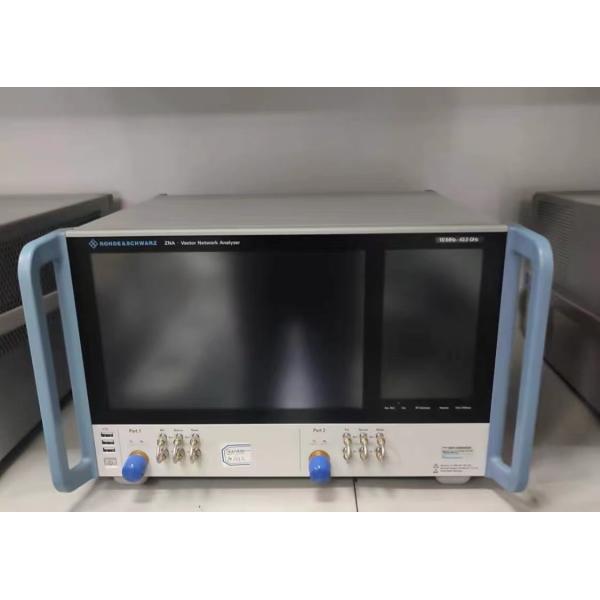

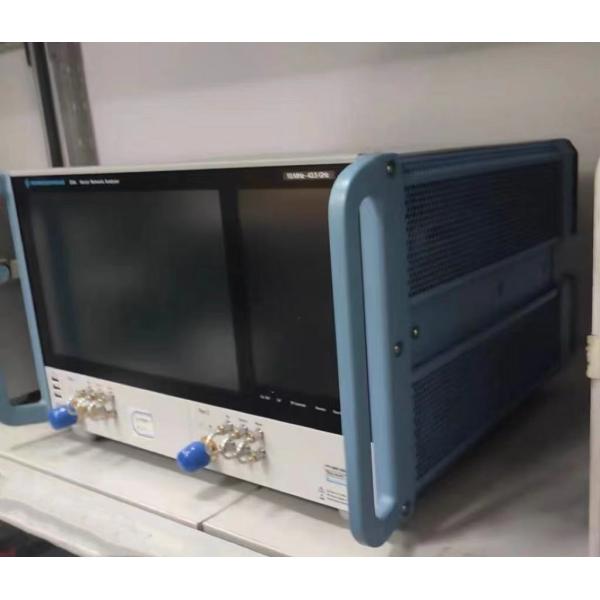

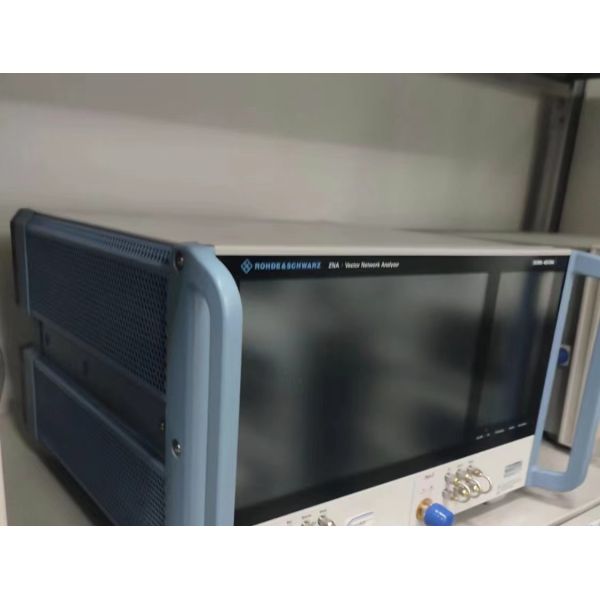

Rohde & Schwarz ZNA43 VNA Vector Network Analyzer 10 MHz to 43.5GHz four port
Masters the most challenging measurement tasks

The R&S®ZNA vector network analyzers are the high-end series of the R&S VNA portfolio: excellent RF-performance is combined with a wide range of software features and a unique hardware concept. The touch-only operation together with the DUT-centric approach makes the R&S®ZNA a powerful, universal and compact measurement system for characterizing both passive and active devices.

Key Features
  • 10 MHz to 26.5/43.5/50/67 GHz (R&S®ZNA26/43/50/67)
  • Two or four port models available
  • Excellent RF-performance
  • Up to four integrated sources
  • Unique and intuitive touch-only operation
  • Exceptional stability, low trace noise and excellent raw data
  • Four internal, phase coherent sources
  • True multichannel receiver architecture
  • Pulse generators and modulators
  • Comprehensive trigger and synchronization capabilities
Technical Specifications
  • Dynamic range of 147 dB (typ.) and up to 170 dB (typ., with options)
  • Noise floor < -120 dBm (spec.)
  • Noise level down to -157 dBm (typ., with options)
  • 0.03 dB receiver linearity in the range from -50 dBm to 0 dBm
  • Power sweep range of 100 dB (typ.)
  • Trace noise of < 0.001 dB (at 1 kHz IF bandwidth)
  • Acoustic noise as low as 42 dB(A)
Operation and Interface

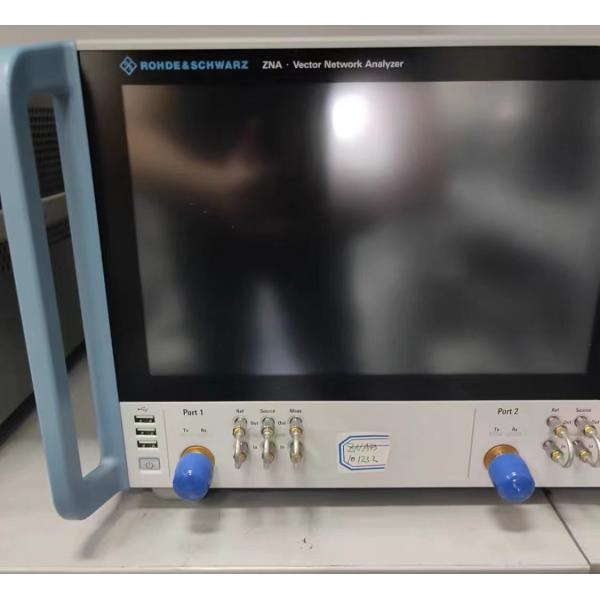

Users can operate the R&S®ZNA via two independent touchscreens: innovative control panel on the right instead of mechanical keys and 12.1" touch display on the left for configuring and displaying measurements. The dual-screen operating concept offers utmost flexibility in configuring measurements.

Hardware Options
Description Applications and Benefits Hardware Option
Direct source and receiver access Facilitates external test setups for high-power measurements across a wide frequency range R&S®ZNAxx-B16
4-port model with up to four internal sources Flexible-to-configure, compact test setups R&S®ZNAxx-B3
2nd internal LO source for 4-port R&S®ZNA model Fast mixer and converter measurements R&S®ZNA-B5
Four/eight true receivers (no multiplexing) Reliable multichannel phase and antenna measurements Provided as standard
Eight internal pulse generators and four internal pulse modulators For measurements on pulsed signals and flexible system integration R&S®ZNA-B26
Frequently Asked Questions
Can you ship order to Canada or Australia?
Yes, we can. We send orders worldwide.
What delivery method do you use and delivery time?
We can ship by EMS, DHL, FedEx, UPS, TNT with tracking number. Usual delivery time is 4-7 workdays.
What is your payment term?
100% T/T payment before shipment.
How can I ask any other question?
You can contact us online or leave us messages below.
