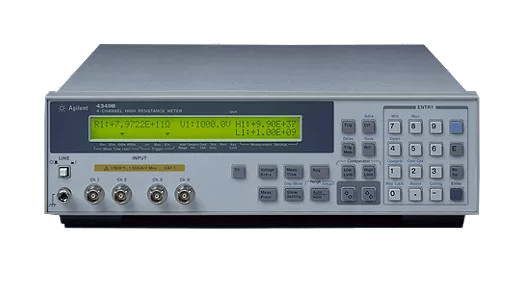

Keysight Agilent 4349B 4 Channel High Resistance Meter with 9.5ms Measurement and Fast Contact Checking
Keysight Agilent 4349B 4 Channel High Resistance Meter with 9.5ms Measurement and Fast Contact Checking
Keysight Agilent 4349B 4 Channel High Resistance Meter with 9.5ms Measurement and Fast Contact Checking
Keysight Agilent 4349B 4 Channel High Resistance Meter with 9.5ms Measurement and Fast Contact Checking
Keysight Agilent 4349B 4 Channel High Resistance Meter with 9.5ms Measurement and Fast Contact Checking
Keysight Agilent 4349B 4 Channel High Resistance Meter with 9.5ms Measurement and Fast Contact Checking
Specifications
Brand Name :
Keysight (Agilent)
Model Number :
4349B
Place of Origin :
Malaysia
MOQ :
1 set
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
in stock
Product name :
RF Impedance/Material Analyzer
Measurement :
9.5ms
Fast contact checking :
2ms/point
DC Test Voltage :
None supplied
Condition :
Pre-Owned
Functions :
Tested, in Full Working Conditions
Description
4 Channel Electronic Test And Measurement Equipment Multiscene Keysight Agilent 4349B
Product Overview

Keysight Agilent 4349B 4 Channel High Resistance Meter DC 9.5ms Measurement

The 4349B offers simultaneous 4-channel high resistance measurements for increased test throughput, making it ideal for high volume capacitor testing.

Key Features
  • 9.5ms measurement time
  • Fast contact checking: 2ms/point
  • GPIB and Handler Interface
  • Ideal for high volume capacitor testing
  • DC Test Voltage: Use external power supplies and voltage data entry for resistance measurements
Technical Specifications
  • DC test voltage (4349B): None supplied, use external power supplies
  • Maximum input: 5000 V with 5 digit numerical entry
  • Number of test channels: Option 4349B-700: 4 channels, Option 4349B-001: 2 channels
  • Ranging: Auto and hold
  • Trigger: Internal, manual, and external
  • Delay time (trigger): 0 ms to 9999 ms in 1 ms steps
  • Test cable lengths: 2 meters maximum
  • Measurement time (typical): 9.5 ms / 28 ms / 98 ms / 397 ms
Available Options
Option Code Description
001 2 Channels
700 4 Channels
1CM Rackmount kit
1CN Handle kit
16117E Low Noise Test Leads
R-51B-001-C Return to Agilent Warranty - 1 year
R-51B-001-3C Return to Agilent Warranty - 3 years
R-51B-001-5C Return to Agilent Warranty - 5 years
