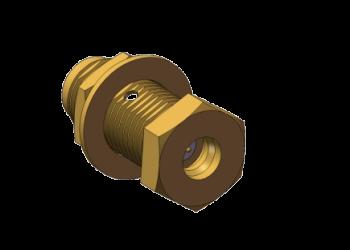

500V Rated 50 Ohm SMA Female Jack To SMP Male Plug RF Coaxial Adapter Smooth Bore Bulkhead Mount Insulation Dielectric PTF
500V Rated 50 Ohm SMA Female Jack To SMP Male Plug RF Coaxial Adapter Smooth Bore Bulkhead Mount Insulation Dielectric PTF
Specifications
Brand Name :
ELT
Model Number :
SMA/SMP-KYJ1
Certification :
Rohs，ISO Certificates
Place of Origin :
Xi'an, China
MOQ :
50 Pcs for new producion
Price :
Depending on the quantity
Payment Terms :
T/T or LC
Supply Ability :
As requirements
Delivery Time :
5-10 working days for stocked quantity
Packaging Details :
1pcs/plastic bag; 50pcs/carton
Product Name :
SMA Female to SMP Male Adapter
Center Contact :
Copper Alloy， Gold Plated
Shell :
Copper Alloy，Gold Plated
Imdepence :
50 Ohm
Rated Voltage :
500V
Insulation Resistance :
5000Ohm
Frequency :
DC~18GHz
Insulation Dielectric :
PTFE
Temperature Range :
-55℃~+125℃
Samples :
Available，In Stock
Mount Method :
Bulkhead Mount
Description

Product Description:

The SMA RF coaxial connector is a small, high frequency coaxial connector. It has the advantages of small size, wide frequency band, superior mechanical and electrical performance, high reliability. This series of high performance connectors developed by Elite Electronic can reach up to 18GHz. It is the most widely used RF coaxial connector and widely used in microwave communication and microwave measurement equipment and other fields.
SMP is a sub-miniature push-on RFcoaxial connector, whichhas the characters of small size, light weight, excellent vabration-proof
performance, and wide working broadband,etc. Operating frequency up to 30GHz (our product of high performance SMP connector can
reach 40GHz), and the plug has three interface forms- full detent, limited detent and smooth bore(including with catcher's mitt). Various
interface forms can satisfy the required axial or radial movement of blind mating in the couple usage of board-to-board system. It’s
suitable for the install situation with the requirement of high reliability modular intensive.


Outline Dimension of SMA to SMP female to male Adapters SMA/SMP-KYJ1
500V Rated 50 Ohm SMA Female Jack To SMP Male Plug RF Coaxial Adapter Smooth Bore Bulkhead Mount Insulation Dielectric PTF

Note: Above SMP End is limited detent, the engagement depth 2.79mm

Outline Dimension of SMA to SMP female to male Adapters SMA/SMP-KYJ :
500V Rated 50 Ohm SMA Female Jack To SMP Male Plug RF Coaxial Adapter Smooth Bore Bulkhead Mount Insulation Dielectric PTF
Note: Above SMP End is smooth bore, the engagement depth 2.79mm

Applications:

SMA to SMP adapters are widely used in the fields of aviation, navagation, aerospace, satcom, radar, antenna, microwave communication & digital communication, electronic, measurement fields.
500V Rated 50 Ohm SMA Female Jack To SMP Male Plug RF Coaxial Adapter Smooth Bore Bulkhead Mount Insulation Dielectric PTF

Packing and Shipping:

Packaging:
The SMA female to SMP male adapters is carefully packaged in a carton to ensure safe transportation. The connector is secured in place with protective foam padding to prevent any damage during shipping. The box is labeled with the product name and specifications for easy identification.
500V Rated 50 Ohm SMA Female Jack To SMP Male Plug RF Coaxial Adapter Smooth Bore Bulkhead Mount Insulation Dielectric PTF

Shipping:
We offer fast and reliable shipping for the SMA jack to SMP jack adapters. We will ship the stocked adapters within 5-7 business days. After shipping, you will receive a tracking No of your shipment.
