Straight N Female/Male To 3.5mm Wave Male / Female RF Coax Adapters With Stainless Steel Housing
Straight N Female/Male To 3.5mm Wave Male / Female RF Coax Adapters With Stainless Steel Housing
Specifications
Brand Name :
ELT
Model Number :
N/3.5-KJG
Certification :
Rohs，ISO Certificates
Place of Origin :
Xi'an, China
MOQ :
MOQ 50 for new production
Price :
Depending on the quantity
Payment Terms :
T/T or LC
Supply Ability :
As requirements
Delivery Time :
5-7 working days for stocked quantity
Packaging Details :
1pcs/plastic bag; 20bags/carton
Product Name :
N Male to 3.5mm Male Adapter
Center Contact :
Copper Alloy， Gold Plated
Shell :
Stainless Steel, Passivation
Imdepence :
50 Ohm
Rated Voltage :
335V
DWV :
1000V
Insulation Resistance :
5000 Ohm
Frequency :
DC~11GHz
Insulation Dielectric :
PTFE
Temperature Range :
-55℃~+125℃
Samples :
Available，Limited Stock, Commercial Grade
Description

Product Description:

The N to 3.5mm Adapter is meticulously designed to establish a flawless connection between N and 3.5mm connectors. This adapter is indispensable in scenarios where seamless integration between N interface devices and 3.5mm interface devices is required. It finds extensive application in wireless communication, test equipment, and RF instruments, ensuring reliable and efficient interface conversion.

Elite Electronic provides a comprehensive range of N to 3.5mm adapters, N male to 3.5mm male adapters, N Female to 3.5mm male, N male to 3.5mm female adapters. Please contact us for the right solution if you do not find the suitable model through sales3@xa-elite.com.cn

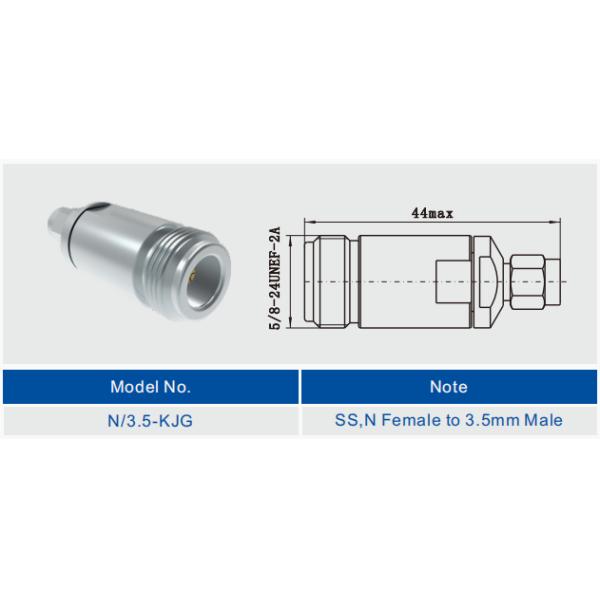

Outline Dimension of Straight N Female to 3.5mm Male Stainless Steel Adapters N/3.5-KJG :

Straight N Female/Male To 3.5mm Wave Male / Female RF Coax Adapters With Stainless Steel Housing

Outline Dimension of Straight N Male to 3.5mm Male Stainless Steel Adapters N/3.5-JJG :

Straight N Female/Male To 3.5mm Wave Male / Female RF Coax Adapters With Stainless Steel Housing

Outline Dimension of Straight N Male to 3.5mm Male Stainless Steel Adapters N/3.5-JKG :

Straight N Female/Male To 3.5mm Wave Male / Female RF Coax Adapters With Stainless Steel Housing

Applications:

Xi'an Elite Electronic is a Leading manufacturer of Systematic Interconnection Solution mainly serving the aerospace, aviation, navigation, radar, communications, measurement, electronics fields.

Our high quality RF Coax Connectors & Adapters use finest materials & strict processes to ensure the durability & reliability in harsh environment when using the connectors & adapters.

Straight N Female/Male To 3.5mm Wave Male / Female RF Coax Adapters With Stainless Steel Housing

Packing and Shipping:

Packaging:

Package Dimensions: Outer Small Carton with L 26.5*W18.5*H14cm

Shipping Method: Standard Shipping

Shipping Time: 5-7 business days for stocked connectors and adapters

Straight N Female/Male To 3.5mm Wave Male / Female RF Coax Adapters With Stainless Steel Housing
