SMA Male Plug To SMA Male Plug RF Coaxial Flexible Cable Assembly Frequency Up To 18 GHz And Customize The Cable Length
SMA Male Plug To SMA Male Plug RF Coaxial Flexible Cable Assembly Frequency Up To 18 GHz And Customize The Cable Length
Specifications
Brand Name :
ELT
Model Number :
SMA-J417G-9/JSMA-J417G-9-300
Certification :
Rohs，ISO Certificates
Place of Origin :
Xi'an, China
MOQ :
100 Pcs for new producion
Price :
Depending on the quantity
Payment Terms :
T/T or LC
Supply Ability :
As requirements
Delivery Time :
within 45 working days for stocked quantity
Packaging Details :
1pcs/plastic bag; 50pcs/carton
Product Name :
SMA male to SMA male cable assemblies
Center Contact of Connector :
Copper Alloy， Gold Plated
Shell of Connector :
Stainless Steel, Passivation
Imdepence :
50 Ohm
Rated Voltage :
500V
Insulation Resistance :
5000Ohm
Frequency :
DC~18GHz
Insulation Dielectric :
PTFE
Temperature Range :
-55℃~+125℃
Cable :
MF503A or CXN3449
Description

Product Description:

SMA RF Coaxial Connector

The SMA RF coaxial connector is a compact, high-frequency connector known for its small size, wide frequency band, superior mechanical and electrical performance, and high reliability. Developed by Elite Electronic, this series of high-performance connectors can operate up to 18GHz. It is the most widely used RF coaxial connector, commonly employed in microwave communication, microwave measurement equipment, and various other fields.

Elite Electronics Hot Selling RF Cable Assemblies

SMA series /SSMA series /K (2.92mm) series/ SMP series /SMPM series/ASMP series/CSMP (SMPS) series/ N series /TNC series/TNCA series connectors.
The above connectors we all have cable connectors mating the cable frequency from 3GHz ~ 40GHz. The calbe length we can arrange the customization. The MOQ: 100pcs.

Product Details of SMA Male to SMA Male RF Coaxial Cable Assembly with Length 300mm:
Technical Materials & Finish
Impedance / Center Conductor of Connector Copper Alloy, Gold Plating
DWV 1000V Outer Conductor of Connector Stainless Steel, Passivation
Insulation Resistance ≥5000MΩ Mating Cable MF503A
Temperature Operating Temp.: -55℃~+125℃ Storage Temp.: -55℃~+125℃
Other Index Frequency Range: 0.3MHz~18GHz

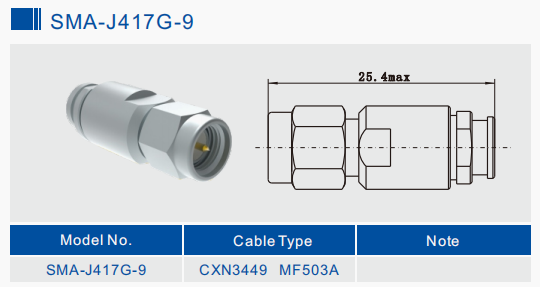

Outline Dimension of Stainless Steel SMA Male Connectors:

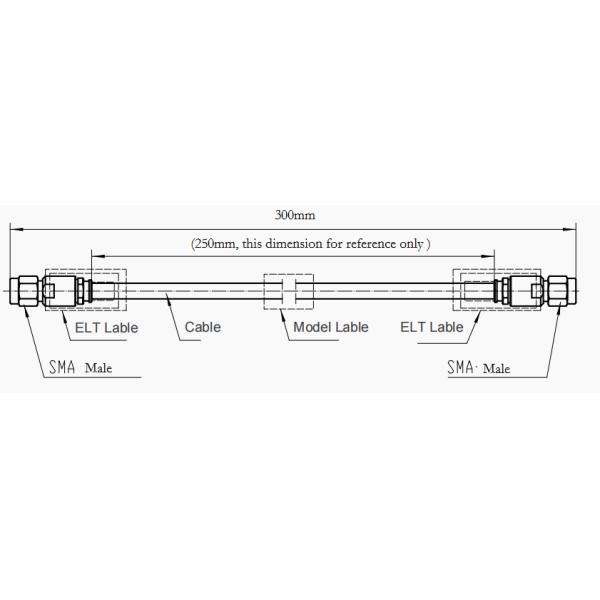

Outline Dimension of SMA male plug To SMA male plug RF Coaxial Cable Assembly :

Applications:

Elite Electronic cable assemblies are widely used in the fields of aviation, navagation, aerospace, satcom, radar, antenna, microwave communication & digital communication, electronic, measurement fields.

Packing and Shipping:

Packaging:
The SMA male to SMA male calbe assemblies are carefully packaged in a carton to ensure safe transportation. The cable is secured in place with protective foam padding to prevent any damage during shipping. The box is labeled with the product name and specifications for easy identification.
SMA Male Plug To SMA Male Plug RF Coaxial Flexible Cable Assembly Frequency Up To 18 GHz And Customize The Cable Length
Shipping:
We offer fast and reliable shipping for the both end sma cable assemblies. After shipping, you will receive a tracking No of your shipment.
