Bulkhead Mount TNC To MCX Female / Jack To Female / Jack RF Coaxial Adapters Up To 6GHz
Bulkhead Mount TNC To MCX Female / Jack To Female / Jack RF Coaxial Adapters Up To 6GHz
Specifications
Brand Name :
ELT
Model Number :
TNC/MCX-KYK
Certification :
Rohs，ISO Certificates
Place of Origin :
Xi'an, China
MOQ :
50
Price :
Depending on the quantity
Payment Terms :
T/T or LC
Supply Ability :
As requirements
Delivery Time :
5-7 working days for stocked quantity
Packaging Details :
1pcs/plastic bag;10bags/carton
Product Name :
TNC Female to SMA Female Adapter
Center Contact :
Copper Alloy， Gold Plated
Shell :
Copper Alloy， Nicle Plated
Mount Method :
Flange Mount
Imdepence :
50 Ohm
Rated Voltage :
250V
DWV :
750V
Insulation Resistance :
5000Ohm
Frequency :
DC~6GHz
Insulation Dielectric :
PTFE
Temperature Range :
-55℃~+125℃
Description

Product Description:

The TNC to MCX adapter is designed to connect TNC connectors with MCX connectors. This adapter is widely used in scenarios where devices with TNC interfaces need to be connected to devices with MCX interfaces. It is commonly utilized in fields such as wireless communication, test equipment, and RF instruments, where conversion between different interfaces is frequently required. Elite Electronic have the TNC to MCX adapters with the flange mount,bulkhead mount..., also we have some waterproof Models.


Outline Dimension of TNC to MCX Female to Female Bulkhead Mount Adapters TNC/SMA-KYK:

Bulkhead Mount TNC To MCX Female / Jack To Female / Jack RF Coaxial Adapters Up To 6GHz

Outline Dimension of TNC to MCX Jack to Jack Bulkhead Mount Adapters TNC/SMA-KYK1:

Bulkhead Mount TNC To MCX Female / Jack To Female / Jack RF Coaxial Adapters Up To 6GHz

Outline Dimension of TNC Female to MCX Female Bulkhead Mount Adapters TNC/SMA-KYK3:
Bulkhead Mount TNC To MCX Female / Jack To Female / Jack RF Coaxial Adapters Up To 6GHz

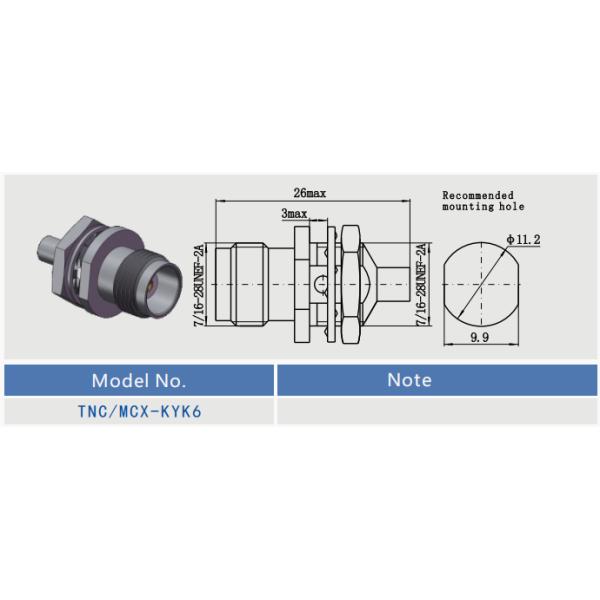

Outline Dimension of TNC Jack to MCX Jack Bulkhead Mount Adapters TNC/SMA-KYK6:
Bulkhead Mount TNC To MCX Female / Jack To Female / Jack RF Coaxial Adapters Up To 6GHz

Applications:

TNC adapters is widely used in the fields of aviation,aerospace, radar, microwave communication and digital communication.
Bulkhead Mount TNC To MCX Female / Jack To Female / Jack RF Coaxial Adapters Up To 6GHz

Packing and Shipping:

Packaging:
The TNC Jack to MCX Jack Bulkhead Mount Adapters is carefully packaged in a carton to ensure safe transportation. The connector is secured in place with protective foam padding to prevent any damage during shipping. The box is labeled with the product name and specifications for easy identification.
Bulkhead Mount TNC To MCX Female / Jack To Female / Jack RF Coaxial Adapters Up To 6GHz

Shipping:
We offer fast and reliable shipping for the TNC Female to MCX Female Bulkhead Mount Adapters . We will ship the stocked connectors within 5-7 business days. After shipping, you will receive a tracking number of your shipment.
