50 Ohm Commerical Grade TNC Female Jack 4 Hole Flange Mount Connectors
50 Ohm Commerical Grade TNC Female Jack 4 Hole Flange Mount Connectors
Specifications
Brand Name :
ELT
Model Number :
TNC-KFD32
Certification :
Rohs，ISO Certificates
Place of Origin :
Xi'an, China
MOQ :
In Stock
Price :
Depending on the quantity
Payment Terms :
T/T or LC
Supply Ability :
As requirements
Delivery Time :
5-7 working days for stocked quantity
Packaging Details :
1pcs/plastic bag;10bags/carton
Product Name :
TNC Female Flange Mount Connector
Center Contact :
Copper Alloy， Gold Plated
Shell :
Copper Alloy， Nicle Plated
Imdepence :
50 Ohm
Rated Voltage :
500V
DWV :
1000V
Insulation Resistance :
5000Ohm
Frequency :
DC~11GHz
Accept Pin :
Diameter 0.4
Insulation Dielectric :
PTFE
Mouting Method :
Flange Mount
Temperature Range :
-55℃~+125℃
Samples :
Available，In Stock
Description

Product Description:

The TNC series connector is a small to medium power connector with a threaded connection structure.The interface size is similar to the BNC series.It has strong anti-vibration, high reliability, excellent mechanical and electrical performance, and can be used up to 11GHz.Elite Electronic' high-performance TNC connector can operate at a frequency of up to 18GHz. This series of products can be interchangeable with connectors of the same series internationally. Widely used in the fields of aviation, aerospace, radar, microwave communication and digital communication.
They can withstand harsh environmental conditions, ensuring stable transmission performance under extreme conditions, meeting the demands of reliable communication and radar systems.

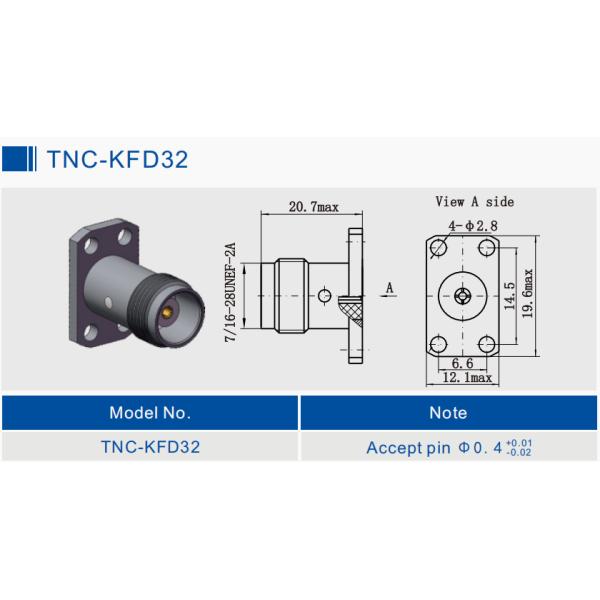

Outline Dimension of TNC Female Flange Mount Connector TNC-KFD32:

50 Ohm Commerical Grade TNC Female Jack 4 Hole Flange Mount Connectors

Applications:

TNC connectors is widely used in the fields of aviation,aerospace, radar, microwave communication and digital communication.

50 Ohm Commerical Grade TNC Female Jack 4 Hole Flange Mount Connectors

Packing and Shipping:

Product Packaging:

The TNC Jack Flange Mount Connector is carefully packaged in a sturdy cardboard box to ensure safe transportation. The connector is secured in place with protective foam padding to prevent any damage during shipping. The box is labeled with the product name and specifications for easy identification.

50 Ohm Commerical Grade TNC Female Jack 4 Hole Flange Mount Connectors

Shipping:

We offer fast and reliable shipping for the TNC Jack Flange Mount Connector. Orders are processed promptly and shipped out within 5-7 business days if in stock. We use trusted courier services to deliver the product to your doorstep in a timely manner. You will receive a tracking number to monitor the status of your shipment.
