Convenient Copper Alloy Gold Plated CSMP/SMPS Female To Female Jack To Jack Adapter For Board-to-Board Interconnection
Convenient Copper Alloy Gold Plated CSMP/SMPS Female To Female Jack To Jack Adapter For Board-to-Board Interconnection
Convenient Copper Alloy Gold Plated CSMP/SMPS Female To Female Jack To Jack Adapter For Board-to-Board Interconnection
Convenient Copper Alloy Gold Plated CSMP/SMPS Female To Female Jack To Jack Adapter For Board-to-Board Interconnection
Specifications
Brand Name :
ELT
Model Number :
CSMP-KK55
Place of Origin :
Xi'an, China
Certification :
ISO Certificates
MOQ :
100
Price :
Depending on the quantity
Packaging Details :
Carton
Delivery Time :
3-7 working days for stocked quantitty
Payment Terms :
T/T or LC
Supply Ability :
As requirements
Product Name :
Straight CSMP Female to Female Adapter
Frequency Range :
0.04GHz~40GHz
Center Conductor :
Copper Alloy, Gold Plated
Outer Conductor :
Copper Alloy, Gold Plated
Impedance :
50 Ohm
DWV :
250V
Insulation Resistance :
2000MΩ
Insulation Dielectric :
PLF
Lifetime :
500Cycles
Other Name :
SMPS Adapter
Description

Product Description:

CSMP connectors are ultra-miniature push-on RF coaxial connectors characterized by the small siz (smaller than SSMP), light weight, and wide operating frequency range. They are widely used in pairs for board to board connections, suitable for modular dense mounting. The CSMP plug has two interface forms: full detent and smooth bore.

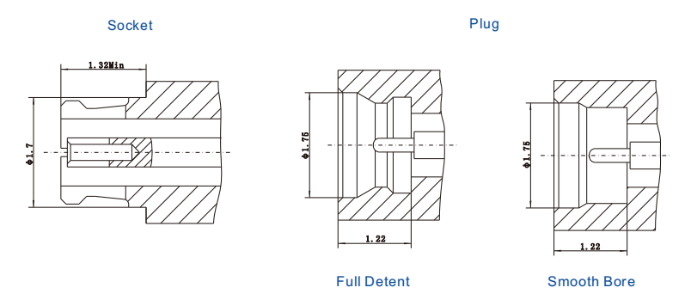

CSMP Socket & Plug Interface Dimension:
Convenient Copper Alloy Gold Plated CSMP/SMPS Female To Female Jack To Jack Adapter For Board-to-Board Interconnection

Features:

  • Product Name: CSMP In Series RF Adapter
  • Housing Material: Copper Alloy with Gold Plated
  • Contact Material: Copper Alloy with Gold Plated
  • Impedance: 50 Ohm
  • Frequency: up to 40 GHz

Technical Parameters:

Impedance 50 Ohm
Gender Female to Female
Feature Straight
Frequency Range 0.04GHz~40GHz
Contact Material Copper Alloy, Gold Plated
Adapter Type In Series
Body Material Copper Alloy, Gold Plated
Product CSMP In Series Adapter

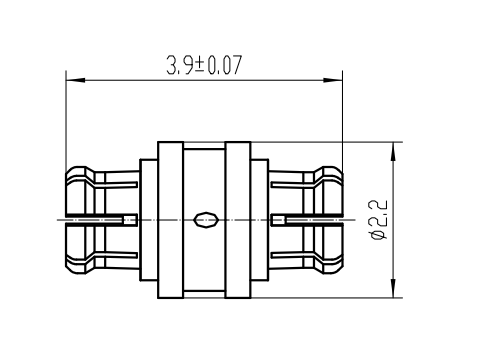

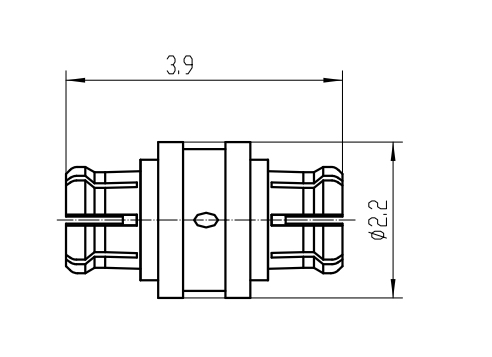

Outline Dimension of CSMP Female to Female Adapters CSMP-KK55 :

Convenient Copper Alloy Gold Plated CSMP/SMPS Female To Female Jack To Jack Adapter For Board-to-Board Interconnection

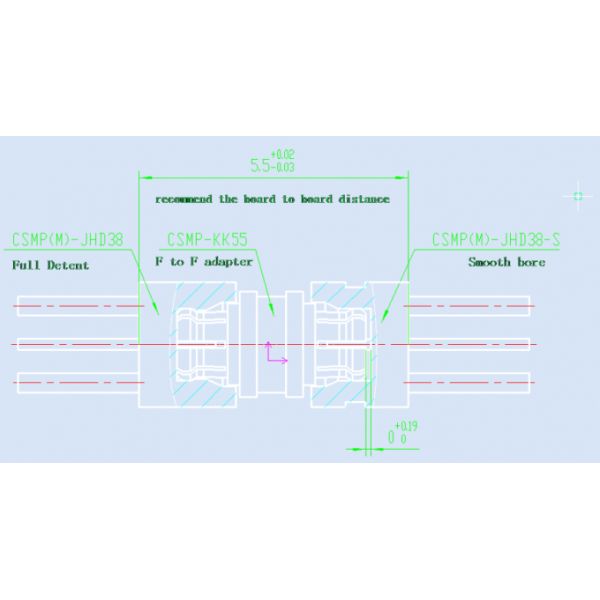

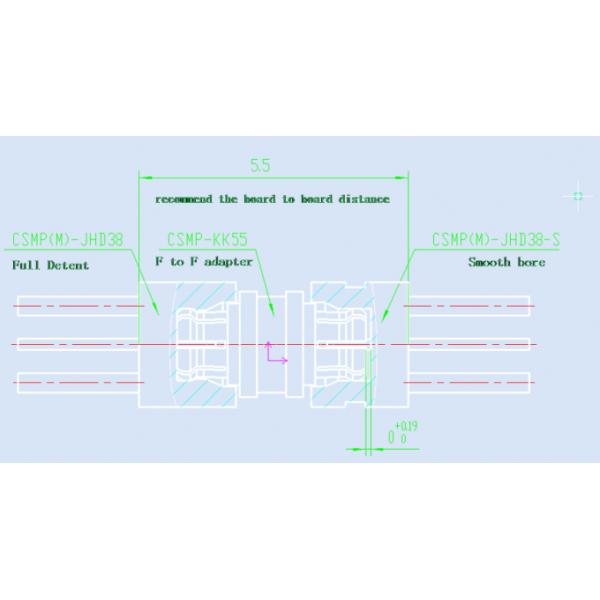

The Board to Board Solution as following for reference:

Convenient Copper Alloy Gold Plated CSMP/SMPS Female To Female Jack To Jack Adapter For Board-to-Board Interconnection

Applications:

They are widely used in pairs for board to board interconnections, suitable for modular dense mounting and narrow space.

It can used in aerospace, aviation, navigation, satcom, radar, communication and electronic industry. Due to the small outline dimension, it is hot selling these years.

Customization:

We can supply the customizion according the drawing or we can supply the interconnect solution base your requirement after the evaluation by our engineers.

Packing and Shipping:

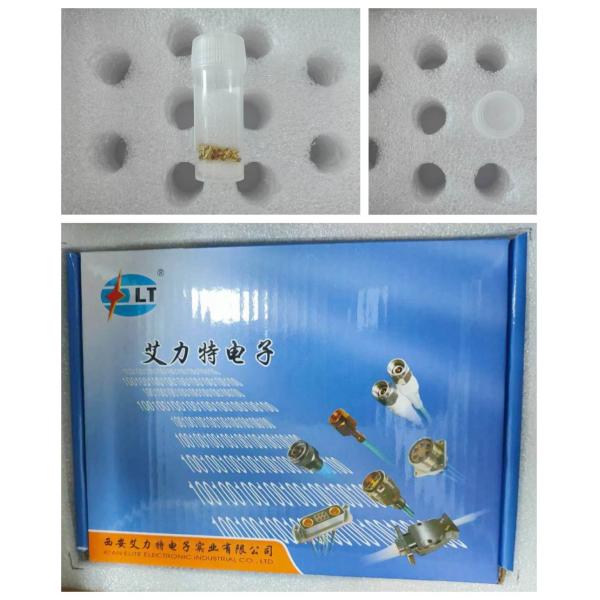

Product Packaging:

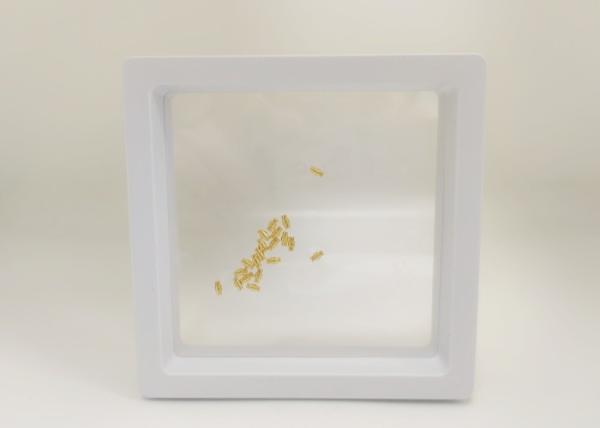

The In Series RF Adapter product will be carefully packaged in a platic bottle, outer package is the sturdy cardboard box to ensure safe transportation. Inside the platic bottle, the adapter will be protected with cushioning material to prevent any damage during shipping.

Convenient Copper Alloy Gold Plated CSMP/SMPS Female To Female Jack To Jack Adapter For Board-to-Board Interconnection

Shipping:

Once your order is processed, the CSMP Series RF Adapter will be shipped using a reliable courier service. You will receive a tracking number to monitor the delivery status of your package. We strive to deliver your order in a timely manner and ensure it reaches you in perfect condition.
