Bass Straight Design TNC Type Male Stainless Steel RF Coaxial Connector for SFF-50-3-1 Cable
Bass Straight Design TNC Type Male Stainless Steel RF Coaxial Connector for SFF-50-3-1 Cable
Bass Straight Design TNC Type Male Stainless Steel RF Coaxial Connector for SFF-50-3-1 Cable
Bass Straight Design TNC Type Male Stainless Steel RF Coaxial Connector for SFF-50-3-1 Cable
Specifications
Brand Name :
ELT (Elite)
Model Number :
TNC-J5SG
Certification :
ISO-9001-2015
Place of Origin :
China
MOQ :
100pcs
Price :
Negotiable
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
100,000 Pieces Per Month
Delivery Time :
Within 5-7 workdays(for stocks)
Packaging Details :
Standard Export Carton
Product Name :
TNC Cable Connector
Plating :
Nickel Plated
Impedance :
50Ω
Durability :
500 Cycles
Contact material :
Brass, BeCu
Material :
Bass
Design Standard: :
IEC 60169-17
Type :
Straight
Description

TNC Type Male Stainless Steel RF Coaxial for SFF-50-3-1 Cable

The TNC series product is a threaded variant of the BNC connector, equipped with screw threads for secure connection. These compact, threaded, waterproof units offer a consistent 50-ohm impedance and operate within the DC-11 GHz frequency range. There are two main types of TNC connectors: standard and reverse polarity. Typically made from die-cast and molded components, these affordable connectors are ideal for various commercial applications. Although their performance may not match that of industrial or high-performance products, they are widely used for antenna connections and have many applications in radar, wireless communication, and general industrial markets. Reverse polarity and 75-ohm versions of the TNC connector are also available.

Bass Straight Design TNC Type Male Stainless Steel RF Coaxial Connector for SFF-50-3-1 Cable

Specification

Note:The specific data of the model are based on the data in the product specification sheet.

Electrical Characteristics
Impedance
50Ω
Frequency Range
DC~4GHz
Rated Voltage
2500VRMS (Maximum sea-level)
Dielectrics Voltage-resistance
750VRMS (Maximum sea-level)
Insulation Resistance
≥2000MΩ
Contact Resistance
Outer conductor
≤6mΩ
Center conductor
≤1.5mΩ
VSMR
≤1.3

Mechanical Specification

Design Standard IEC 60169-17
RoHS Compliant Yes
Centre Contact Termination Crimp
Outer Contact Termination Crimp
Mating Cycles 500Cycles
Contact Retention 10N min
Cable Retention 100N min
Mating Force 13.6N max
Un-Coupling Force 13.6N max

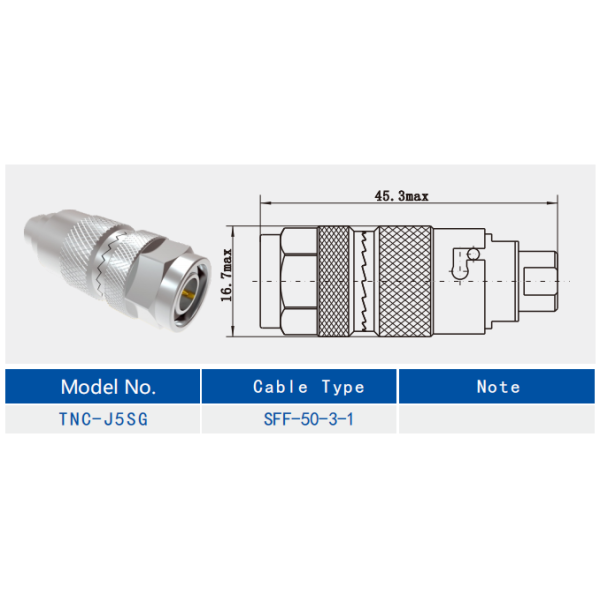

Detailed Drawing

Bass Straight Design TNC Type Male Stainless Steel RF Coaxial Connector for SFF-50-3-1 Cable

Features:

1. Good vibration resistance: Compared with other types of connectors, such as BNC connectors, TNC connectors are more vibration-resistant, in the case of vibration, shock and other mechanical stress, but still maintain good electrical connection performance to ensure the stability of signal transmission.
2. Excellent mechanical and electrical performance: good mechanical strength and stability, able to withstand a certain degree of external forces and not easily damaged; at the same time, in terms of electrical performance, low insertion loss, low return loss, high signal transmission efficiency, which can ensure high-quality signal transmission.

Application:

1. Program Production: In the process of program production of broadcasting TV, TNC connectors are used to connect signal acquisition equipment such as cameras, microphones and video/audio processing equipment to ensure high-quality audio/video signals are transmitted to the post-production system to ensure the smooth progress of program production.
2. Signal transmission and distribution: In the transmission and distribution network of broadcasting and television signals, such as cable television networks, TNC connectors can be used to connect signal amplifiers, distributors, and other equipment to transmit television signals from the television station to thousands of households, to ensure that viewers can receive clear and stable television programs.

NOTE:
We have over 10,000 types of TNC connector, if the connector you are using is not found, please contact us with your details.
