Custom Right Angle SMA RF Cable Assembly DC-18GHz Mating CXN 3450 for RF Module - Dual End Customizable
Custom Right Angle SMA RF Cable Assembly DC-18GHz Mating CXN 3450 for RF Module - Dual End Customizable
Specifications
Brand Name :
ELT
Model Number :
ZMF740A-SMA-JW/SMA-JW-Cable Length
Certification :
Rohs，ISO Certificates
Place of Origin :
Xi'an, China
MOQ :
15 Pcs for customziation
Price :
Depending on the quantity
Payment Terms :
T/T or LC
Supply Ability :
As requirements
Delivery Time :
Within 45 working days for stocked quantity
Packaging Details :
1pcs/plastic bag; 50pcs/carton
Product Name :
Right Angle RF Cable Assembly
Center Contact of Connector :
Copper Alloy， Gold Plated
Shell of Connector :
Stainless Steel, Passivation
Rated Voltage :
750V
Insulation Resistance :
5000Ohm
Frequency :
DC~18GHz
VSWR :
1.35 Max
Temperature Range :
-55℃~+125℃
Cable OD :
7.4mm
Mating Cable :
EQV CXN 3450
Cable Style :
Dual End Right Angle SMA Connector
Customization :
DC~18GHz as client request
Cable Length :
Different length accroding to request
Application :
RF Signal Transmission, RF Module
Impendance :
50ohm
Description

Product Description


SMA RF Cable Assembly

Elite Electronics SMA RF Cable Assemblies, terminated with Sub-Miniature A (SMA) connectors, are the industry mainstream for RF interconnection solutions. Featuring a compact design, superior high-frequency performance, and robust, reliable connectivity, they deliver stable signal transmission for critical RF systems. When selecting SMA RF cable assemblies, key considerations include 50Ω impedance, frequency range, cable type, and environmental adaptability—all essential for optimizing system efficiency and signal integrity. These high-performance assemblies are widely deployed in microwave communication, test & measurement, aerospace, satellite communication, and 5G infrastructure, serving as core components for high-speed, high-reliability RF signal interconnection.

Manufacturing Capabilities

As a professional manufacturer of RF connectors and cable assemblies, we operate multiple dedicated assembly production lines to ensure rapid response and on-time delivery for custom customer demands. Our SMA RF Cable Assemblies cover a broad frequency range from DC to 18 GHz, offering versatile, application-tailored solutions for diverse industrial and commercial RF use cases. We specialize in both standard and custom RF cable assembly production, meeting the strict performance requirements of high-frequency RF systems.

Compatible RF Coaxial Cables

.086 Cable, .141 Cable, CNX3506, CXN3657, CXN3507, CXN3449, CXN3450, CXN3508, CXN3500, SFF Series Cable, Flexible RF Cable, Semi-Flexible Cable, Semi-Rigid Cable, RG178 Cable, RG316 Cable, Low-Loss Temperature Stabilized Phase Cable, Armored Testing Cable, Super Flexible RF Cable, Millimeter Wave Cable

RF Cable Connectors We Manufacture

SMA, SSMA, SMP, SMPM, SMPS (smaller than SMPM), ASMP (bigger than SMP), N Type, TNC, TNCA, TMA, 2.92mm, 2.4mm, 1.85mm, 3.5mm, 1.0mm, 0.8mm

Waveguide Assemblies

We also design and manufacture custom high-performance waveguide assemblies, complementing our comprehensive RF interconnect product portfolio to meet all your integrated RF system needs.

Technical Data

Both Ends SMA Male Plug Frequency Up To DC to 18 GHz RF Cable Assembly with Different Length
Technical Materials & Finish
Impedance 50ohm Center Conductor of ConnectorA, B Copper Alloy, Gold Plating
DWV 1000V Outer Conductor of Connector A, B Stainless Steel, Passivation
Insulation Resistance ≥5000MΩ Mating Cable EQV CXN 3450
Frequency DC~18GHz Cable OD 7.4mm
Temperature Operating Temp.: -55℃~+125℃ Storage Temp.: -55℃~+125℃
Other Index VSWR<1.35

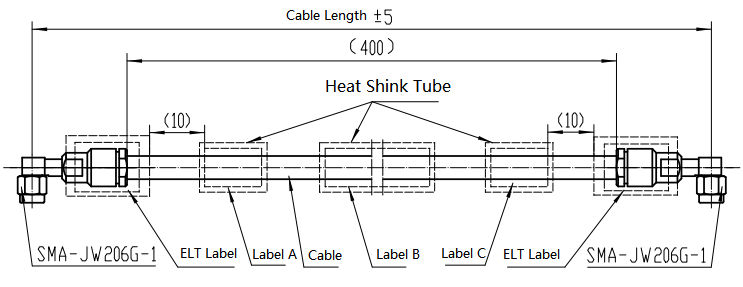

Outline Dimension of Right Angle SMA male plug To Right Angle SMA male plug RF Cable Assembly

Custom Right Angle SMA RF Cable Assembly DC-18GHz Mating CXN 3450 for RF Module - Dual End Customizable

Applications

Elite Electronics Right Angle RF cable assembly are widely used in the fields of aviation, navagation, aerospace, satcom, radar, antenna, microwave communication & digital communication, electronic, measurement fields.


Communication Field

Our right angle RF cable assembly is ideal for 5G base stations, satellite communication devices, wireless equipment and more. They enable reliable connections between RF modules and key components like antennas and filters, ensuring stable high-frequency signal transmission.

Test & Measurement Field

The RF cable assembly are specially designed for test port connections of precision instruments including spectrum analyzers and network analyzers. Boasting high precision and low insertion loss, they deliver accurate and consistent measurement data for RF testing applications.

Aerospace Field

Suitable for radar systems, navigation equipment and aerospace electronic devices, our right angle RF cable assemblies are engineered to withstand extreme operating environments, meeting rigorous demands for high-frequency and ultra-reliable signal transmission.

Medical Electronics Field

For high-end medical devices such as magnetic resonance imaging (MRI) systems, our non-magnetic SMA right angle RF cable assembly effectively avoid magnetic field interference, safeguarding the precision of medical diagnosis and imaging.


Packing & Shipping

Packaging:
The RF cable assembly are carefully packaged in a carton to ensure safe transportation. The cable is secured in place with protective foam padding to prevent any damage during shipping. The box is labeled with the product name and specifications for easy identification.

Custom Right Angle SMA RF Cable Assembly DC-18GHz Mating CXN 3450 for RF Module - Dual End Customizable
Shipping:
We offer fast and reliable shipping for the RF cable assembly. After shipping, you will receive a tracking No. of your shipment.


RFQ


Q1: Are you a trading company or a manufacturer?
A: We are a professional RF/microwave interconnect components manufacturer with over 23 years of rich experience in manufacturing RF Connectors, RF cable assembly and RF interconnect components.


Q2: What products can you provide currently?
A: We supply a full range of RF/microwave components, including RF connectors, RF adapters, RF cable assembly, waveguide products, glass-to-metal hermetic connectors, micro D-sub connectors, microwave rotary joints, and other custom microwave interconnect components.


Q3: Is a free sample available?
A: Yes, free samples are available for in-stock RF products with freight collect terms for global customers.


Q4: Can your company accept customization?
A: ODM customization is highly welcomed. Backed by 23+ years of professional ODM experience, Elite Electronics provides one-stop customization services including product design, R&D, development, and integration for all your RF interconnect product needs including the RF cable assembly with different length.


Q5: What are the payment terms?
A: We support flexible global payment terms: L/C, T/T, Western Union, Trade Assurance (including credit card & T/T payments), and other mainstream international payment methods.


Q6: What is the lead time?
A: • Sample orders: 5 working days
• RF connector bulk orders: 3-4 weeks (subject to order quantity, ODM requirements, and product specifications)
• RF cable assembly bulk orders: 8-13 weeks


Q7: How will you deliver goods to me?
A: We cooperate with top international express carriers (DHL, UPS, FedEx, TNT) for fast delivery with competitive freight rates for global shipments. Air freight and sea freight are also available for bulk RF product orders to meet different shipping needs.


Q8: How long do I need to wait before my goods arrive?
A: • Air transportation: 5-8 working days (global delivery)
• International express: 3-8 working days (door-to-door delivery)


Q9: How is your product quality?
A: As a trusted high-quality supplier for numerous national high-tech projects, we take product quality as the core of our development. We have a professional strict quality control (QC) team and standardized production processes, all products are manufactured and inspected in accordance with international RF industry quality grade standards to ensure superior performance and reliability.


Q10: What is your warranty?
A: We provide a 6-month product warranty from the date of delivery. Elite Electronics attaches great importance to global after-sales service and offers comprehensive technical support for all our RF/microwave products.
