Customize Low VSWR Low Insertion Loss SMA RF Cable Assembly DC~18GHz with Different Length for Signal Transmission
Customize Low VSWR Low Insertion Loss SMA RF Cable Assembly DC~18GHz with Different Length for Signal Transmission
Customize Low VSWR Low Insertion Loss SMA RF Cable Assembly DC~18GHz with Different Length for Signal Transmission
Customize Low VSWR Low Insertion Loss SMA RF Cable Assembly DC~18GHz with Different Length for Signal Transmission
Specifications
Brand Name :
ELT
Model Number :
ZMF740A-SMA-J/SMA-J-Cable Length
Certification :
Rohs，ISO Certificates
Place of Origin :
Xi'an, China
MOQ :
15 Pcs for customziation
Price :
Depending on the quantity
Payment Terms :
T/T or LC
Supply Ability :
As requirements
Delivery Time :
Within 45 working days for stocked quantity
Packaging Details :
1pcs/plastic bag; 50pcs/carton
Product Name :
RF Cable Assembly
Center Contact of Connector :
Copper Alloy， Gold Plated
Shell of Connector :
Stainless Steel, Passivation
Rated Voltage :
750V
Insulation Resistance :
5000Ohm
Frequency :
DC~18GHz
VSWR :
1.3 Max
Temperature Range :
-55℃~+125℃
Cable OD :
7.4mm
Mating Cable :
EQV CXN 3450
Cable Style :
Both end Straight SMA Connector
Customization :
DC~40GHz as client request
Cable Length :
Different length accroding to request
Application :
RF Signal Transmission
Description

Product Description

  • SMA RF Cable Assembly

SMA RF cable assembly, terminated with Sub-Miniature A (SMA) connectors, are the mainstream choice in RF interconnects due to their compact size, superior high-frequency performance, and reliable connectivity.
During the selection process, it is essential to consider impedance, frequency range, cable type, and environmental factors to ensure efficient and stable signal transmission within the system. These assemblies are widely utilized in microwave communications, test & measurement, aerospace, and other critical applications, serving as a key component for high-performance signal interconnection.

  • Our Capabilities

Our company specializes in the manufacturing of RF connectors and operates multiple assembly production lines. We are equipped to rapidly respond to customer demands. Our RF cable assembly offer a frequency coverage from DC to 18 GHz, providing customers with versatile options for diverse application scenarios.

  • RF Coaxial Connector _other Mating Cable

.086 Cable,.141 Cable, CNX3506, CXN3657, CXN3507, CXN3449, CXN3450, CXN3508, CXN3500, SFF Series Cable, Flexible Cable, Semi-flexible Cable, Semi-rigid Cable, RG178 Cable, RG316 Cable, Low-loss Temperature Stabilized Phase Cable, Armored Testing Cable, Super Flexible Cable, Millimeter Wave Cable

  • RF Cable Connectors we produced

SMA, SSMA, SMP, SMPM, SMPS(small than SMPM), ASMP(bigger than SMP), N, TNC, TNCA, TMA, 2.92mm, 2.4mm, 1.85mm, 3.5mm, 1.0mm, 0.8mm

  • Waveguide Assembly

We also can produce the waveguide assembly.

Technical Data

Both Ends SMA Male Plug Frequency Up To DC to 18 GHz RF Cable Assembly with Different Length
Technical Materials & Finish
Impedance 50ohm Center Conductor of ConnectorA, B Copper Alloy, Gold Plating
DWV 1000V Outer Conductor of Connector A, B Stainless Steel, Passivation
Insulation Resistance ≥5000MΩ Mating Cable EQV CXN 3450
Frequency DC~18GHz Cable OD 7.4mm
Temperature Operating Temp.: -55℃~+125℃ Storage Temp.: -55℃~+125℃
Other Index VSWR<1.3

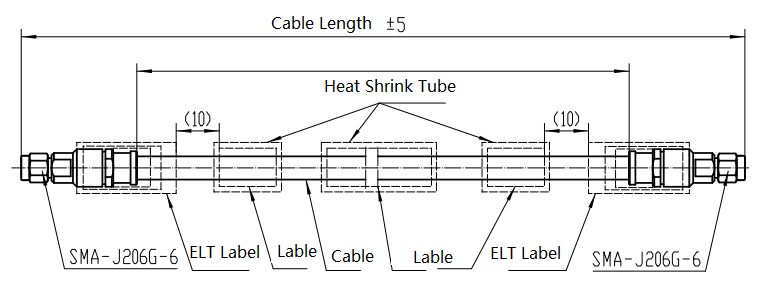

Outline Dimension of SMA male plug To SMA male plug RF Cable Assembly

Customize Low VSWR Low Insertion Loss SMA RF Cable Assembly DC~18GHz with Different Length for Signal Transmission

Applications

Elite Electronics RF cable assembly are widely used in the fields of aviation, navagation, aerospace, satcom, radar, antenna, microwave communication & digital communication, electronic, measurement fields.

Packing & Shipping

Packaging:
The RF calbe assembly are carefully packaged in a carton to ensure safe transportation. The cable is secured in place with protective foam padding to prevent any damage during shipping. The box is labeled with the product name and specifications for easy identification.

Customize Low VSWR Low Insertion Loss SMA RF Cable Assembly DC~18GHz with Different Length for Signal Transmission
Shipping:
We offer fast and reliable shipping for the RF cable assembly. After shipping, you will receive a tracking No. of your shipment.


RFQ

Q1: Are you trading company or manufacturer ?
A: We are manufacturer with over 23+ years experience on RF/Microwave Interconnect Components, RF Cable Assembly .


Q2: What products can you provide currently?
A: RF connectors, RF adapters, RF cable assemblies, wave-guide products, glass-to-metal hermetic connectors, micro D-sub, microwave rotary joints and other microwave components.


Q3: Is free sample available?
A: Yes, if have stock, free sample is available with freight collected.


Q4: Can your company accept customize?
A: ODM is welcomed. With more than 23+ years experience in ODM, Elite Electronics can assist in design, product development, research & development and integration of your interconnect products.


Q5: What are the Payment Terms ?
A: We can accept L/C, T/T, Western Union, Trade Assurance (credit card &T/T), etc.


Q6: What is the lead time?
A: 5 days for sample orders, 3-4 weeks for RF connector (based on different quantities, ODM , etc.), 8-13 weeks for RF Cable Assembly.


Q7: How will you deliver goods to me?
A: Generally, we cooperate with international expresses such as DHL, UPS, FedEx, TNT to enable our customers to get their goods rapidly but with the lowest freight. Meanwhile, ship by air and by sea is also available.


Q8: How long do I need to wait before my goods arrive?
A: 5-8 workdays for air transportation, 3-8 workdays for international express.


Q9: How is your product quality?
A: As the high-quality suppliers of many national high-tech projects, providing excellent products is our way of development. We have a strong quality control team and very strict process to guarantee our quality according to different quality grade standard.


Q10: What is your warranty?
A: Our warranty is 6 months after delivery, Elite Electronic pays high attention to after-sales service.
