Mini SMA Jack to Mini SMA Jack RF Coaxial Adapters Using for Wireless Communication
Mini SMA Jack to Mini SMA Jack RF Coaxial Adapters Using for Wireless Communication
Specifications
Brand Name :
ELT
Model Number :
SSMA-KK2
Certification :
ISO9001, IS014001
Place of Origin :
Xi'an, China
MOQ :
MOQ 50 pieces
Price :
The price depend on the quantity
Payment Terms :
T/T,L/C,D/P
Supply Ability :
As requirements
Delivery Time :
8-12 weeks for new production
Packaging Details :
1pcs/plastic bag;100pcs/carton
Product Name :
Straight SSMA Jack to Jack Adapter
Model :
SSMA-KK2
Frequency Range :
0.3MHz-18GHz
Impedance :
50Ω
Rated Voltage :
250v
DWV :
750V
Insulation Resistance :
≥5000MΩ
Center Conductor :
Copper Alloy, Gold Plated
Outer Conductor :
Copper Alloy, Gold Plated
Insulators :
PTFE
Samples :
Available，In Stock
Customization :
According to drawing
Description
Mini SMA Jack to Mini SMA Jack RF Coaxial Adapter Up to 18GHz
Product Specifications
Items Value
Product Name Mini SMA Jack to Mini SMA Jack Adapter
Model
SSMA-KK2
Frequency Range 0.3MHz-18GHz
Impedance 50Ω
Rated Voltage 250v
DWV 750V
Insulation Resistance ≥5000MΩ
Center Conductor Copper Alloy, Gold Plated
Outer Conductor Copper Alloy, Gold Plated
Insulators PTFE
Product Overview

Compact Size with Wide Frequency Bandwidth The SSMA series connectors are designed to be compact, approximately 70% the size of traditional SMA connectors, making them ideal for applications where space is limited. Despite their smaller size, these connectors support a wide frequency bandwidth, ensuring robust performance across various frequencies.


Feature Description
Size Compact (70% the size of traditional SMA connectors)
Frequency Bandwidth Wide frequency bandwidth (DC~18GHz)
Performance Superior mechanical and electrical performance
Reliability High reliability in demanding applications
Threaded Standard 10-36UNF-2
Impedance 50Ω
Frequency Operation Up to 18GHz
Structures Jack to Jack
SSMA RF Coaxial Connectors Interface Dimensions
Mini SMA Jack to Mini SMA Jack RF Coaxial Adapters Using for Wireless Communication

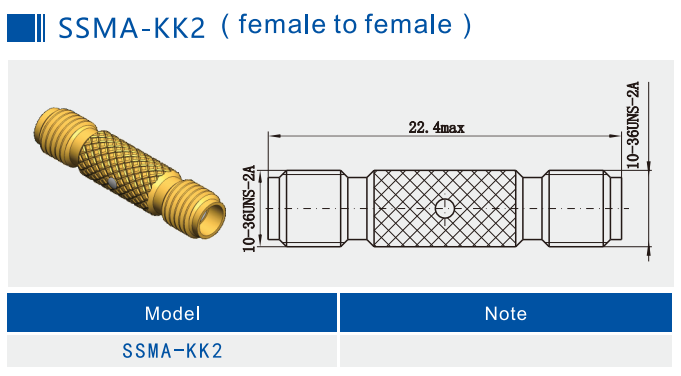

Outline Dimension of Mini SMA Jack to Mini SMA Jack RF Coaxial Adapter
Model No: SSMA-KK2
Mini SMA Jack to Mini SMA Jack RF Coaxial Adapters Using for Wireless Communication

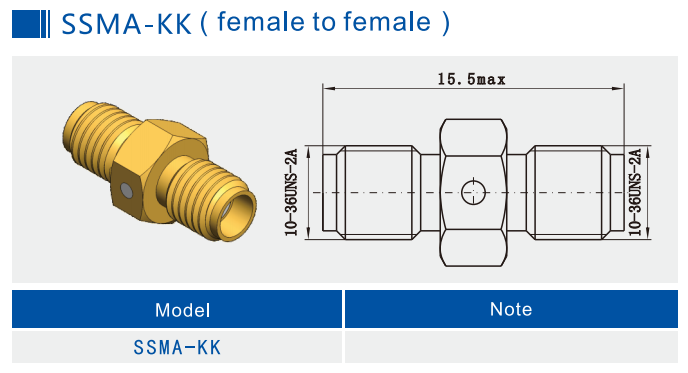

Outline Dimension of Mini SMA Jack to Mini SMA Jack RF Coaxial Adapter
Model No: SSMA-KK
Mini SMA Jack to Mini SMA Jack RF Coaxial Adapters Using for Wireless Communication
Other In-Series Mini SMA to Mini SMA Adapter

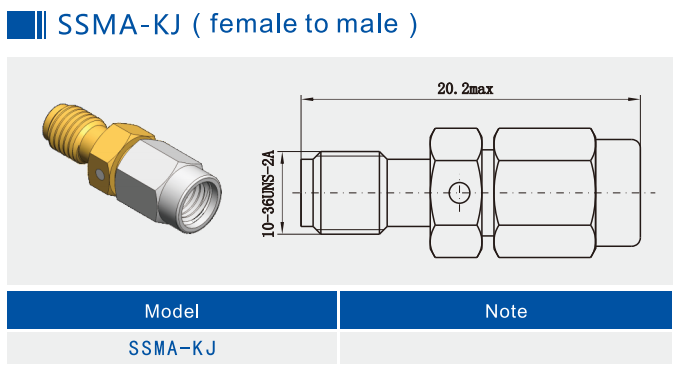

Outline Dimension of Mini SMA Jack to Mini SMA male RF Coaxial Adapter
Model No: SSMA-KJ
Mini SMA Jack to Mini SMA Jack RF Coaxial Adapters Using for Wireless Communication

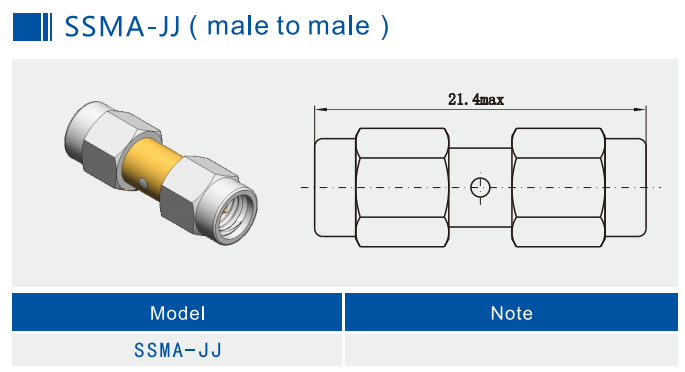

Outline Dimension of Mini SMA Male to Mini SMA Male RF Coaxial Adapter
Model No: SSMA-JJ
Mini SMA Jack to Mini SMA Jack RF Coaxial Adapters Using for Wireless Communication
Applications
  • Microwave communication systems
  • Measurement equipment
  • Aerospace applications
  • Radar systems
  • Electronics fields
Our products use premium materials and strict manufacturing processes to ensure durability and reliability in harsh environments.
Mini SMA Jack to Mini SMA Jack RF Coaxial Adapters Using for Wireless Communication
Packaging & Shipping
Packaging: Each SSMA Adapter is carefully packaged in protective cartons to ensure safe transit.
Mini SMA Jack to Mini SMA Jack RF Coaxial Adapters Using for Wireless Communication
Shipping: We use reliable courier services with tracking numbers provided for all shipments.
Note: For other similar SSMA Adapter models, please check our catalog. While some models are in stock, all can be produced quickly for the model on catalog.
