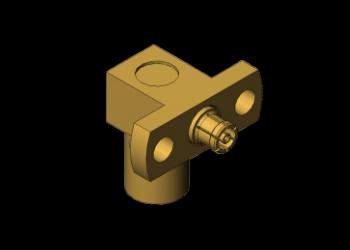

50Ω Right Angle SMP Male to SSMP (SMPM) Female RF Coaxial Adapter 40GHz 170V
50Ω Right Angle SMP Male to SSMP (SMPM) Female RF Coaxial Adapter 40GHz 170V
Specifications
Brand Name :
ELT
Model Number :
SMP/SSMP-JWFK
Certification :
ISO9001, IS014001
Place of Origin :
Xi'an, China
MOQ :
MOQ 50 pieces
Price :
The price depend on the quantity
Payment Terms :
T/T,L/C,D/P
Supply Ability :
As requirements
Delivery Time :
8-12 weeks for new production
Packaging Details :
1pcs/plastic bag;100pcs/carton
Product Name :
Right Angle SMP Male to SSMP Female Adapter
Model :
SMP/SSMP-JWFK
Frequency Range :
0.3MHz-40GHz
Impedance :
50Ω
Rated Voltage :
170v
DWV :
500V
Insulation Resistance :
≥5000MΩ
Center Conductor :
Copper Alloy, Gold Plated
Outer Conductor :
Copper Alloy, Gold Plated
Samples :
Available，In Stock
Description
50Ω Gold Plated Right Angle SMP Male to SSMP (SMPM) Female RF Coaxial Adapter up to 40GHz
High-performance right angle SMP to SMPM (SSMP) male to female adapters designed for precision microwave signal transmission up to 40GHz frequency range. Elite Electronic produce the products with premium materials and strict quality control processes to ensure exceptional durability and reliability in demanding environments.
Product Specifications
Items Value
Product Name Right Angle SMP Jack to SMPM Jack Adapter
Model SMP/SSMP-JWFK
Frequency Range 0.3MHz-40GHz
Impedance 50Ω
Rated Voltage 170v
DWV 500V
Insulation Resistance ≥5000MΩ
Center Conductor Copper Alloy, Gold Plated
Outer Conductor Copper Alloy, Gold Plated

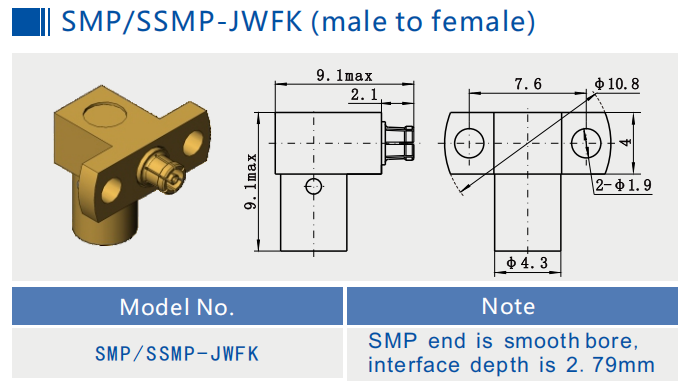

Product Outline Dimensions SMP/SSMP-JWFK (Unit: mm)
50Ω Right Angle SMP Male to SSMP (SMPM) Female RF Coaxial Adapter 40GHz 170V
Please contact us at sales3@xa-elite.com.cn for model availability and additional series options.
Applications

Communication Field: Used in wireless communication base stations, microwave communication systems, etc., to connect different RF devices such as antennas, filters, amplifiers, etc., to achieve signal transmission and switching, ensuring high-quality transmission of communication signals.

Radar Systems: Helps with signal connection and transmission between various components within radar equipment, ensuring that the radar system can accurately transmit and receive RF signals to detect and track targets.

Satellite Communication: Used in satellite ground stations and satellite communication equipment to connect various RF components, supporting the uplink and downlink transmission of satellite signals, ensuring the stability and reliability of satellite communication.

Testing and Measurement Equipment: Used in RF test instruments such as network analyzers, spectrum analyzers, etc., to connect the device under test and the test instrument, enabling precise performance testing and analysis of RF devices and systems.

50Ω Right Angle SMP Male to SSMP (SMPM) Female RF Coaxial Adapter 40GHz 170V
Packaging & Shipping
Each adapter is carefully packaged in protective cartons to ensure safe transit. We use reliable courier services with tracking numbers provided for all shipments.
50Ω Right Angle SMP Male to SSMP (SMPM) Female RF Coaxial Adapter 40GHz 170V
Note: For other similar adapter models, please check our catalog. While some models are in stock, all can be produced quickly for models listed in our catalog.
