50Ω SMPM Female to Female RF Adapter 0.3MHz-50GHz 170V
50Ω SMPM Female to Female RF Adapter 0.3MHz-50GHz 170V
Specifications
Brand Name :
ELT
Model Number :
SSMP-KK105
Certification :
ISO9001, IS014001
Place of Origin :
Xi'an, China
MOQ :
MOQ 50 pieces
Price :
The price depend on the quantity
Payment Terms :
T/T,L/C,D/P
Supply Ability :
As requirements
Delivery Time :
8-12 weeks for new production
Packaging Details :
100pcs/bag or plastic bottle;100pcs/carton as requirement
Product Name :
Straight SMPM Female to Female Adapter
Model :
SSMP-KK105
Frequency Range :
0.3MHz-50GHz
Impedance :
50Ω
Rated Voltage :
170v
DWV :
500V
Insulation Resistance :
≥5000MΩ
Center Conductor :
Copper Alloy, Gold Plated
Outer Conductor :
Copper Alloy, Gold Plated
Samples :
Available，In Stock
Description
50Ω Gold Plated SMPM Female to Female SMPM Jack to SMPM Jack RF Coaxial Adapter up to 50GHz
Product Description

Straight 50Ω Gold Plated SMPM Female to Female SMPM Jack to SMPM Jack RF Coaxial Adapter up to 50GHz. The SMPM Female to Female Adapter is based on the SMPM RF coaxial connector standard, designed to connect two RF devices/components with SMPM male connectors (plugs). This adapter serves as an intermediate connection structure of "male SMPM - female to female adapter - male SMPM."

Key Features
  • Miniaturized Design: SMPM connectors are compact, making them suitable for applications with limited space.
  • High-Frequency : They support frequency transmission up to 50 GHz, ideal for high-frequency applications.
  • Low Insertion Loss: These connectors maintain low insertion loss at high frequencies, ensuring signal integrity.
  • High Reliability: SMPM connectors offer excellent mechanical performance and durability, suitable for applications requiring high reliability.
  • Ease of Connection and Disconnection: SMPM connectors typically feature a push-in design, allowing for quick and easy connections and disconnections.
Product Specifications
Items Value
Product Name Straight SMPM Jack to SMPM Jack Adapters
Model SSMP-KK105
Frequency Range 0.3MHz-50GHz
Impedance 50Ω
Rated Voltage 170V
DWV 500V
Insulation Resistance ≥5000MΩ
Center Conductor Copper Alloy, Gold Plated
Outer Conductor Copper Alloy, Gold Plated
Insulation Dielectric Air

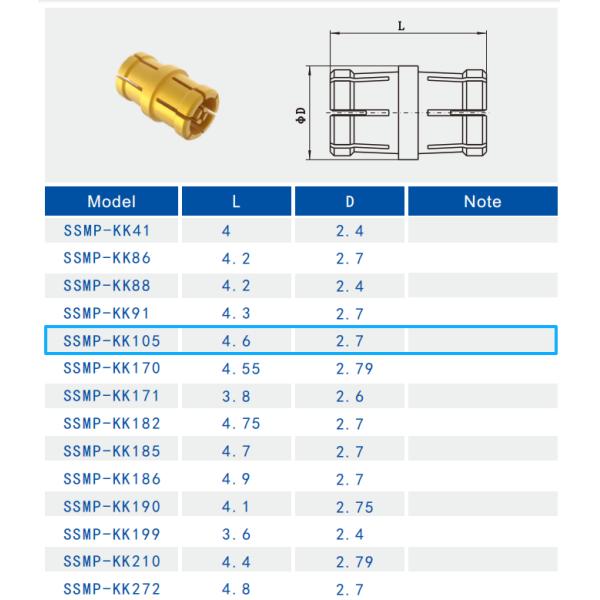

Product Outline Dimensions SSMP-KK105 (Unit: mm)
50Ω SMPM Female to Female RF Adapter 0.3MHz-50GHz 170V
Please contact us at sales3@xa-elite.com.cn for model availability and additional series options.
Applications
  • Microwave communication systems
  • Measurement equipment
  • Aerospace applications
  • Radar systems
  • Electronics fields

Manufactured with premium materials and strict quality control processes to ensure exceptional durability and reliability in demanding environments.

50Ω SMPM Female to Female RF Adapter 0.3MHz-50GHz 170V
Packaging & Shipping

Each SMPM adapter is carefully packaged in protective cartons to ensure safe transit. We use reliable courier services with tracking numbers provided for all shipments.

50Ω SMPM Female to Female RF Adapter 0.3MHz-50GHz 170V

Note: For other similar adapter models, please check our catalog. While some models are in stock, all can be produced quickly for models listed in our catalog.
