Product Description:

The SMP connector is a push-on subminiature RF coaxial connector designed for applications of high-frequency up to 40Ghz . It is known for its compact size and reliable performance, making it ideal for use in various electronic devices, systems, communicatoin, stacom, radar and so on for the connnection between board. It can saving larger mounting space to realize the high density board connection. The male plug have three structures: full detent, limited detent ( also called semi detent, half detent) and smooth bore(including catcher's mitt).

According to the different using applicaiton, the user can choose the male plug with different structures. When user does not need the frequency interstion, they can choose the full detent. The full detent has the maximum connection retention force, the best vibration resistance & impact performance. It is commonly used for cable connection.

When user need many times of insertion, they can use the limited detent (also called semi detent, half detent). The retention force is medium base on the smooth bore structure. It is widely used for PCB assembly and blind mating connections.

When user need more or have to assemble many SMP board to board connectors, they can choose the smooth bore structure. The smooth bore has the same engagement force and disengagement forces and allows axial & radial misalignment. It is often used in blind mating connections.

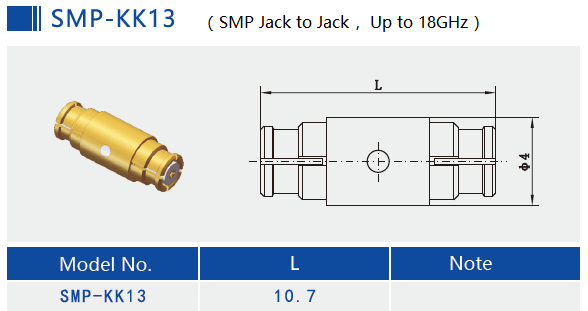

The outline demension of SMP Jack to Jack: SMP-KK13 Up to 18GHz

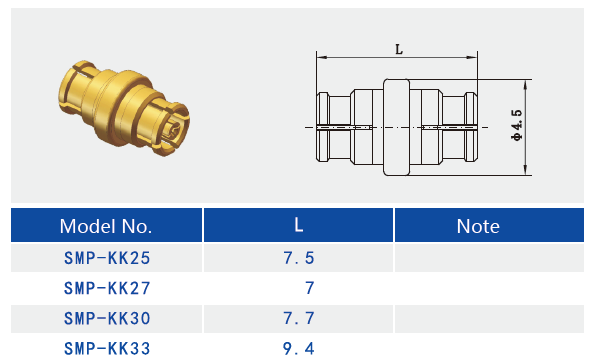

Other SMP Female to Female Similar Models: SMP-KK25 Up to 40GHz

More products, please contact us freely for the Flange mount SMP Connectors catalog sales3@xa-elite.com.cn

Applications:

Xi'an Elite Electronic is a leading manufacturer of RF Connectors & Adapters, Microwave/Waveguide components & Cable Assemblies, serving in aerospace, aviation, navigation, satellite, radar, communications fields for more than 23 years.

Customization:

Product Customization Services for Different Length SMP Straight Adapter are available:

Brand Name: ELT

MOQ: 200 pcs

Price: Depending on the quantity

Please send us the drawing or details and we will let our engineer to arrange the evaluation or we recommend us the alternative model or supply our solution to you.

We also can supply the customization for the connectors such as SMA, SSMA, SMP, SSMP(SMPM), CSMP(SMPS), ASMP, N, TNC, TNCA,, BMA, SBMA, 2.92mm, 2.4mm, 1.85mm, Micro D Connectors, RF loads, Antennas, Filters, Power Dividers, Coupler.

Packing and Shipping:

Packaging for SMP Straight Adapter:

1 Piece/ small plastic bag

10 Pieces/ larger plastic bag

100 Pieces/ carton box

The SMP Straight Adapter comes securely packaged in a small cardboard box to ensure its protection during shipping. The box is labeled with the product name and specifications for easy identification.

For shipping, the SMP Straight Adapter is placed in caron. We will supply the tracking No after shipping.
