ROHS Flange Mount LANs 4 Holes SMA To BMA Adapter
ROHS Flange Mount LANs 4 Holes SMA To BMA Adapter
ROHS Flange Mount LANs 4 Holes SMA To BMA Adapter
ROHS Flange Mount LANs 4 Holes SMA To BMA Adapter
Specifications
Brand Name :
ELT (Elite)
Model Number :
SMA-BMA-KFJ4
Certification :
ROHS ISO-9001-2015
Place of Origin :
China
MOQ :
50
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
1,000,000pcs per week
Delivery Time :
within 3 weeks
Packaging Details :
Standard Export Carton
Product name :
SMA female to BMA male Adapter
Impedance :
50Ω
Dielectric :
PTFE
Type :
RF Adaptor
Application :
RF
Gender :
female to male
Material :
Gold Plated
Lifespan :
500 Circles
Description

4 holes Flange Mount SMA Female Jack to BMA Male Plug Adapter

The SMA RF coaxial connector is a small, high frequency coaxial connector developed in accordance with MIL-C-39012. It has the advantages of small size, wide frequency band, superior mechanical and electrical performance, high reliability, etc. It is the most widely used RF coaxial connector. Widely used in microwave communication and microwave measurement equipment and other fields. This series of high performance connector developed by our company can reach frequency up to 20 Ghz.

BMA series is a kinds of blind-mate connector, it’s developed and produced according to IEC1169-33. Adopted new type spring plate structure, the connector with reliable contact and superior electrical characteristics. The advantage is axial and radial can float, every point connectors average space is small, weight is light, it can be used in the blind mate of chassis cabinets. BMA is widely used in chassis cabinets module connect.


As manufacturer, we can customize BMA SMA connectors and adapters as per your different requirement. Orientations in straight and right angle, with 2-hole or 4-hole flange or threaded bulkhead, hermetic and waterproof types are all available upon request.

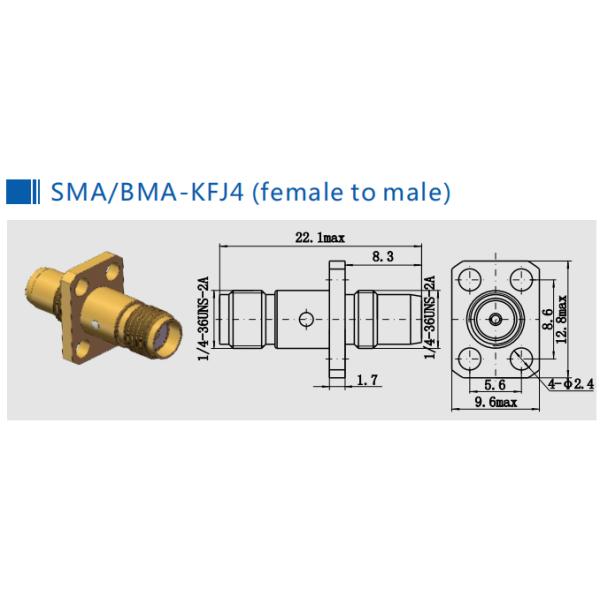

Outline Drawing and Picture(mm)

ROHS Flange Mount LANs 4 Holes SMA To BMA Adapter

Other SMA Male Female to D4/SMP/MCX Male Female RF Adapter

Part Number
Description
SMA/D4-JK
SMA female to MCX male adapter
SMA/SSMP-KK
SMA female to SSMP female adapter
SMA/MCX-KFK
SMA female to MCX female adapter
SMA/SMP-KFK14
SMA female to SMP female adapter

SMA/MCX-KWJ
SMA female to MCX male adapter
SMA/SMP-KFK36G
SMA female to SMP female adapter

1.

ROHS Flange Mount LANs 4 Holes SMA To BMA Adapter

2.

ROHS Flange Mount LANs 4 Holes SMA To BMA Adapter

3.

ROHS Flange Mount LANs 4 Holes SMA To BMA Adapter

4.

ROHS Flange Mount LANs 4 Holes SMA To BMA Adapter

5.

ROHS Flange Mount LANs 4 Holes SMA To BMA Adapter

6.

ROHS Flange Mount LANs 4 Holes SMA To BMA Adapter

Application:

Network Satcom
Computer/LANs Computer/LANs
Mobile communication Instrumentation
Base Station Mobile communication
Outdoor facilities Radar,microwave
Telecommunications Instrumentation
Automotive Jump line join
Basic facility Radio, TV aerial system

Workshop & Exibition

ROHS Flange Mount LANs 4 Holes SMA To BMA Adapter

NOTE:
We have over 10,000 types of RF Adapters, if the connector you are using is not found, please contact us with your details.
