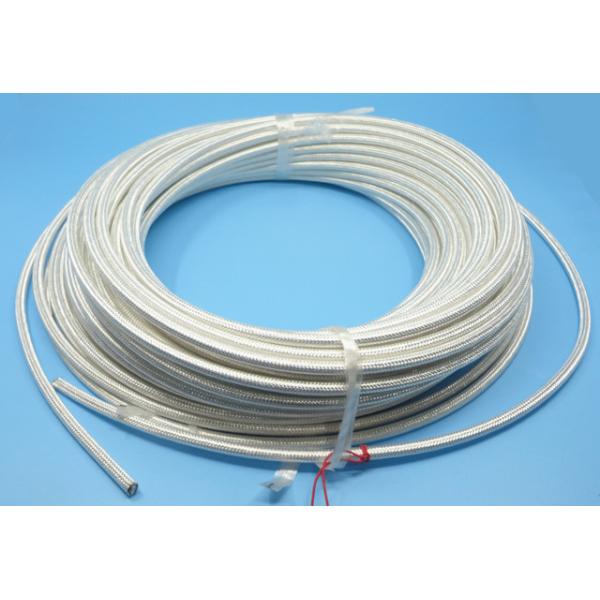

18GHz MF55A Coaxial Cable Assemblies High Performance For Communication Field
18GHz MF55A Coaxial Cable Assemblies High Performance For Communication Field
18GHz MF55A Coaxial Cable Assemblies High Performance For Communication Field
18GHz MF55A Coaxial Cable Assemblies High Performance For Communication Field
18GHz MF55A Coaxial Cable Assemblies High Performance For Communication Field
18GHz MF55A Coaxial Cable Assemblies High Performance For Communication Field
18GHz MF55A Coaxial Cable Assemblies High Performance For Communication Field
18GHz MF55A Coaxial Cable Assemblies High Performance For Communication Field
Specifications
Brand Name :
ELT (Elite)
Model Number :
MF55A
Certification :
CE ROHS
Place of Origin :
China
MOQ :
10
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
1,000,000 pcs Per Month
Delivery Time :
Within 3 weeks
Packaging Details :
Standard Export Carton
Product name :
RF Cable Assembly
Plating :
Au Plated
Impedance :
50Ω
Certificate :
CE ROHS
Model :
MF55A
Unit :
Meter
Description

On Sale 18GHz MF55A High-performance RF Coaxial cable for Communication Field

Xi'an Elite Electronic Industrial Co., Ltd. is a national high-tech enterprise that specializes in R & D, manufacture and sales of RF connectors, adapters, cable assemblies, wave-guide products, glass-to-metal hermetic connectors, micro d-sub, microwave rotary joints and other microwave components. These RF/Microwave products are widely used in aerospace, aviation, navigation, 5G, satellite, communications, antennas and other important electrical systems.


As the qualified components supplier of China Spacecraft Shenzhou nine and many other national high tech projects, Xi'an Elite Electronic has more than 20 years ODM experience on military and commercial Interconnect Components.

Specification:

Core wire 1.42mm
Insulation 4.19mm
Shield 4.9mm
Outer Diameter 5.46mm
Characteristic Impedance 50Ω
Operating Frequency DC-18GHz
VSWR ≤1.3
Insertion loss 1.2dB/m (@18GHz)
Insulation Resistance ≥15000MΩ
Dielectric voltage resistance 1000V

Application:

* Base Station

* Outdoor facilities

* Radar,microwave

* Telecommunications

* Computer/LANs

* Mobile communication

* Radio, TV aerial system

* Mobile communication

Detailed Drawing

18GHz MF55A Coaxial Cable Assemblies High Performance For Communication Field

Assembly shop capability:

*Automatic stripping

*Automatic laser stripping

*Temperature controlled soldering

*Clean room

*Laser marking

Product Cataloge:

RF Adapter
SMA/SSMA RF Connector
SMP/SSMP RF Connector
TNC RF Connector
N Type RF Connector
MCX/MMCX RF Connector
BNC RF ConnectorMillimeter Wave Connectors(2.4mm, 2.92mm)
RF Cable Assemblies
Waveguide To Coaxial Adapter
Glass-to-metal Hermetic Seals
J30J Series Connector
Microwave Rotary Joints

Advantages:

√ Specializes in manufacturing RF connector more than 16 yearS

√ Have long and Rich cooperation experience with national project components supply like China ShenZhou 9

√ With our own factory with 35,000㎡

√ Replace Lemo, Molex ,YEONHO ,Tyco ,AMP,KET,JWT,JMT, Cvilux, GTK ect. with short delivery

√ Competitive price

√ Strict quality control (QA Report) ,passed ,ISO9001,ROHS, CE

√ Monthly average turnover is 10million

√ Custom-made (ODM) orders welcome here

√ We are committed to providing high-quality products to customers

Packaging & Delivery:

* Standard Export Carton
* According to customers' requirements
