Construction SMP Male RF Connector With Long Microstrip Plug Smooth Bore Interface
Construction SMP Male RF Connector With Long Microstrip Plug Smooth Bore Interface
Construction SMP Male RF Connector With Long Microstrip Plug Smooth Bore Interface
Construction SMP Male RF Connector With Long Microstrip Plug Smooth Bore Interface
Specifications
Brand Name :
ELT (Elite)
Model Number :
SMP-JHD82-S
Certification :
ROHS ISO-9001-2015
Place of Origin :
China
MOQ :
200pcs
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, Credit Card
Supply Ability :
300,000,000 pcs per year
Delivery Time :
Within 3 weeks
Packaging Details :
Standard Export Carton
Product name :
SMP Male Smooth bore Connector
Frequency Range :
DC~40GHz
Impedance :
50Ω
Connector Series :
SMP
Gender :
Male
Shell Material :
Brass/beryllium bronze/kovar alloy/copper alloy stainless steel
Insulators :
glass sintering/PTFE/PEI
Hermecity :
≤1.01325*10-3 Pa.cm3/s
Description

Durable Construction SMP Male RF Connector with Long Microstrip Plug Smooth Bore Interface

SMP is a sub-miniature push-on RF coaxial connector, which features smallSMP is a sub-miniature push-on RF coaxial connector, which features small size, lightweight, excellent vibration-proof performance, and wide working bandwidth. It has an operating frequency up to 30GHz (our high-performance SMP connector can reach 40GHz), and the plug comes in three interface forms - full detent, limited detent, and smooth bore (including with braking). These various interface forms can satisfy the required axial or radial movement of blind mating in board-to-board system coupling applications. It is suitable for installations that require high reliability and modular intensity.


Specification

Electrical Characteristics
Impedance 50Ω
Frequency Range DC~40GHz
Rated Voltage 170VRMS*
Insulation Resistance ≥5000MΩ
Dielectrics Voltage-resistance 500VRMS*
Center Resistance Outer conductor ≤4mΩ
Center conductor ≤26mΩ
VSWR ≤1.4
Material & Mechanical Characteristics
Center Conductor Male Sn-P Bronze, gold plated
Female Beryllium bronze, gold plated
Elastic Contact Beryllium bronze Gold plated
Shell and other Metal Parts Brass Stainless steel Gold plated Passivation
Insulators Glass sintering/PTFE/PEI
Hermetic Product Leakage Rate 1.01325×10-3Pa·cm3/s

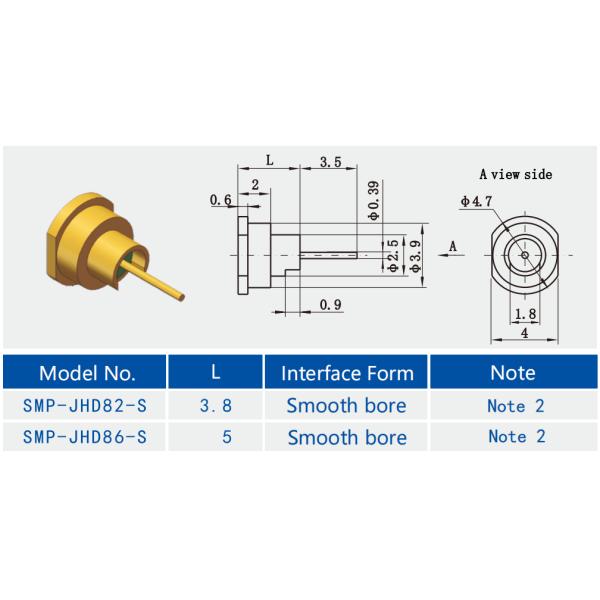

Detailed Drawing

Construction SMP Male RF Connector With Long Microstrip Plug Smooth Bore Interface

NOTE:
We have over 1,000 types of SMP hermetically sealed connector for choice, if the product you are using is not found, please contact us for full catologs. Custom dimensions is accepted.


Features and Benefits

Gold plated
Sub-miniature
DC to 40GHz
Compact size
Push-on or snap coupling
Full detent, Limited detent and Smooth bore
PCB & cable mount connector
Male and Female, Straight and Right Angle choice
Cable mount versions for both flexible and semi-rigid cable Materials
Normal type and hermetic, Flange mount & Thread-In Mount choice


Applications

- Antennas
- Broadband
- Aerospace

- Telecommunications

- Instrumentation
- Phased array antennas

- Board-to-board interconnect
