Description

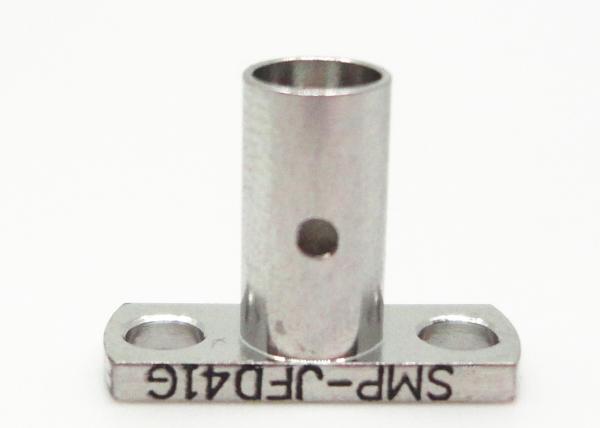

Female 2 Holes Flange Mount SMP RF Connector Coaxial Connector for Microwave

SMP is a sminiature push-on or snap coupling RF coaxial connector, which has the characters of small size, light weight, excellent seismic performance, and widely working broadband,etc. Its operating frequency up to 30GHz (our product of SMP connector can reach 40GHz), and the plug has three interface form-full detent, limited detent and smooth bore(including with braking). PCB mount, cable mount and in-series adaptors provide an interconnect solution for board-to-board, blind mate and rack-and-panel applications while maintaining package density. Apply for the install situation with the requirement of high reliability modular intensive.

50Ω Impedance SMP Coaxial Connector Coaxial Cable Connectors Flanges Mount

Specification

Electrical Characteristics
Impedance 50Ω
Frequency Range DC~40GHz
Rated Voltage 170VRMS*
Insulation Resistance ≥2000MΩ
Dielectrics Voltage-resistance 500VRMS*
Center Resistance Outer conductor Normal≤2.5mΩ, Sealing≤4mΩ
Center conductor Normal≤6mΩ, Sealing≤26mΩ
VSWR ≤1.3
Material & Mechanical Characteristics
Center Conductor Male Sn-P Bronze,gold plated
Female Beryllium bronze, gold plated
Elastic Contact Beryllium bronze Gold plated
Shell and other Metal Parts Brass Stainless steel Gold plated Passivation
Insulators Glass sintering/PTFE/PEI
Hermetic Product Leakage Rate 1.01325×10-3Pa·cm3/s


Advantages:

1. SMA RF connector is high quality and quick combinations by simply screwing two connectors together, with no soldering or crimping required

2. SMA electrical connectors are widely used for microwave, antennas and testing instrumentation etc

3. SMA RF connector are threaded-coupling RF coaxial connectors with miniature size, vibration-proof and wide frequency range up to 18 GHz

4. SMA RF connectors are available in quick connect, push-on or standard interface, straight, 90 degrees versions,as well as bulkhead, or 4 holes panel configurations

Applications

- Antennas

- Broadband

- Telecommunications

- Instrumentation
- Phased array antennas

- Board-to-board interconnect


Detailed Drawing
