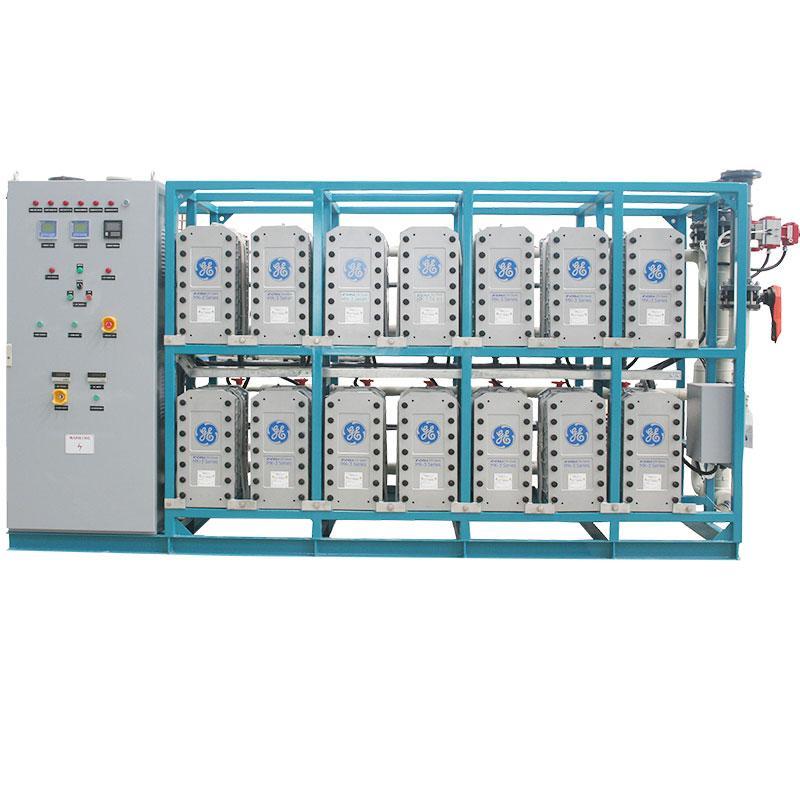

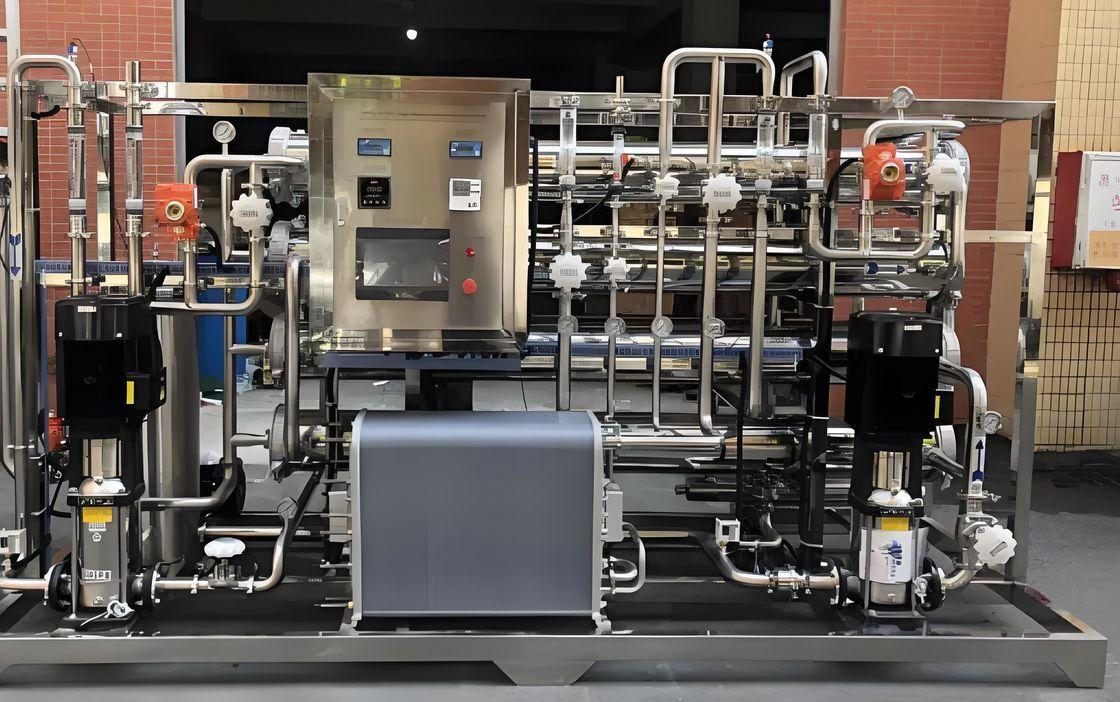

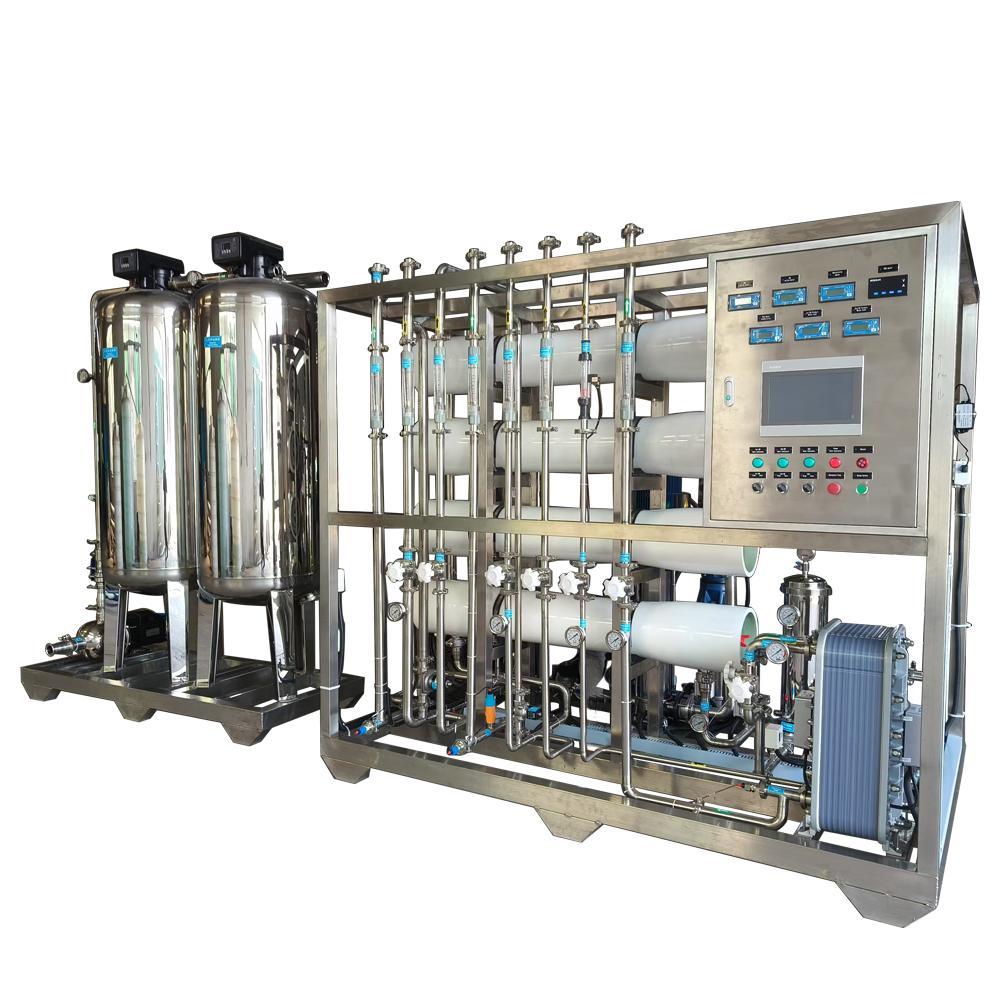

2000 LPH Ultrapure Water Purification System with Chemical-Free EDI Operation and 18 MΩ*cm Resistivity
2000 LPH Ultrapure Water Purification System with Chemical-Free EDI Operation and 18 MΩ*cm Resistivity
2000 LPH Ultrapure Water Purification System with Chemical-Free EDI Operation and 18 MΩ*cm Resistivity
2000 LPH Ultrapure Water Purification System with Chemical-Free EDI Operation and 18 MΩ*cm Resistivity
2000 LPH Ultrapure Water Purification System with Chemical-Free EDI Operation and 18 MΩ*cm Resistivity
2000 LPH Ultrapure Water Purification System with Chemical-Free EDI Operation and 18 MΩ*cm Resistivity
Specifications
Productivity Of The Machine :
2000L/H
Certification :
ISO 9001
Core Material :
Stainless Steel 304/Fiberglass
Supply Ability :
20 Units per Month
Product Feed Water TDS :
≤2000mg/L
Payment Terms :
T/T,Western Union,Paypal etc.
Filter Media :
Sand+carbon+softener+RO+EDI
Delivery Time :
7 work days
Model Number :
Ultrapure Water Machine
Brand Name :
Fenigal
RO Membrane :
DOW/ Vontron
Main Usage :
Desalination,Remove Salt Water Purification
Price :
Negotiable
Packaging Details :
Standard Export Wood Crate/Carton or Naked wrapped by film
Product Weight :
500kg
Place of Origin :
China
Main Processing Type :
RO+EDI
MOQ :
1 Set
Description
2000 LPH EDI-Based Ultrapure Water Purification System
Integrated RO + Electrodeionization Technology for High-Purity Water Production

The 2000 LPH EDI-Based Ultrapure Water Purification System is an advanced water purification solution combining Reverse Osmosis (RO) and Electrodeionization (EDI) technologies to continuously produce high-quality ultrapure water.

With a production capacity of 2,000 liters per hour, the system integrates multiple purification processes including pretreatment filtration, RO desalination, and EDI polishing. This combination provides efficient removal of dissolved salts, ions, and impurities while eliminating the need for chemical regeneration.

EDI technology uses an electric field, ion exchange membranes, and ion exchange resin to continuously remove ionized contaminants from water. Unlike conventional ion exchange systems, the EDI process does not require acid or alkali regeneration chemicals, providing a cleaner and more sustainable ultrapure water production method.

Key Advantages
Advanced RO + EDI Purification Process
  • Multi-stage purification for high-quality water production
  • RO removes dissolved salts and major impurities
  • EDI further polishes water to ultrapure quality
  • Stable water quality for critical applications
Chemical-Free EDI Operation
  • No acid or caustic regeneration required
  • Reduced chemical consumption
  • No hazardous regeneration waste
  • Continuous automatic operation
Compact Modular Design
  • Integrated treatment configuration
  • Easy installation and maintenance
  • Flexible system expansion capability
Reliable Water Quality Control
  • Produces water quality up to 18 MΩ·cm resistivity
  • Stable ion removal performance
  • Suitable for demanding high-purity water applications
System Process Flow
Raw Water
↓
Raw Water Tank
↓
Raw Water Pump
↓
Sand Filter
↓
Activated Carbon Filter
↓
Water Softener (Optional)
↓
Security Filter
↓
High Pressure Pump
↓
Reverse Osmosis System
↓
EDI System
↓
Pure Water Tank
↓
UV Sterilizer / Ozone Generator (Optional)
↓
Precision Filter
↓
Water Usage Point
Technical Specifications
Parameter Specification
System Model EDI-2000LPH
Production Capacity 2,000 LPH
Water Type Ultrapure Water
Power Supply 220V / 380V / 50Hz
System Technology RO + EDI
Raw Water Pump 1.5 kW
High Pressure Pump 4 kW
Sand Filter Tank φ800 * 2050 mm
Activated Carbon Tank φ800 * 2050 mm
Softener Tank φ800 * 2050 mm
Tank Material SS304
Cartridge Filter 20 inch * 5 μm PP Filter
RO Membrane 4040 Series
Sterilization Option UV / Ozone
EDI Technology Overview

Electrodeionization (EDI) is a continuous ultrapure water purification technology that combines:

  • Electrodialysis technology
  • Ion exchange technology
  • Ion-selective membranes
  • Ion exchange resin

Under a direct current electric field, dissolved ions migrate through selective membranes and are continuously removed from the water stream.

At the same time, hydrogen ions and hydroxide ions generated from water splitting regenerate the ion exchange resin automatically, allowing continuous operation without traditional chemical regeneration.

Main Applications
Pharmaceutical Industry
  • Purified water systems
  • Laboratory water preparation
  • High-purity process water
Electronics Industry
  • Semiconductor cleaning
  • Precision manufacturing water
  • Component production processes
Power Generation
  • Boiler feedwater treatment
  • High-purity makeup water
Other Applications
  • Cosmetics manufacturing
  • Research laboratories
  • Industrial ultrapure water systems
EDI System Benefits
Produces high-purity water up to 18 MΩ·cm
No chemical regeneration required
Continuous operation capability
Low maintenance requirements
Compact modular structure
Reduced environmental impact
Stable and consistent water quality
Easy integration with RO systems
Why Choose This System?

The 2000 LPH EDI-Based Ultrapure Water Purification System provides an efficient and environmentally friendly solution for industries requiring continuous high-purity water production.

By combining RO desalination with advanced EDI polishing technology, the system delivers reliable performance, reduced chemical consumption, and simplified operation for pharmaceutical, electronics, laboratory, and industrial applications.
