Specifications
Brand Name :
Fenigal/OEM
Model Number :
MFS-M/L
Certification :
CE/NSF etc.
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
T/T, Western Union, Paypal etc.
Supply Ability :
200 set per month
Delivery Time :
15~30 days
Packaging Details :
Standard Export Wood Crate/Carton or Naked wrapped by film/Containerized
Technology :
Pressurized filtration
Material :
carbon steel/FRP/stainless steel
Design :
Skid mount/containerized
Water temp. :
5~35˚C
Water flow rate :
up to 1,000 m3/day.vessel
Voltage :
380V,415V,220V,can be customized
Application :
TSS, tubidity, taste/odor removal
Size :
Dia.20cm~180cm
Description

Water treatment multimedia filter for industrial water filtration 50TPD~5,000TPD

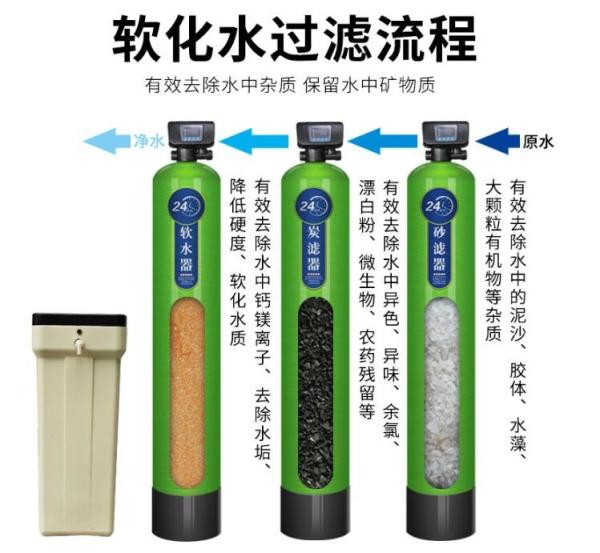

Multimedia Filtration (MMF) plants are designed to treat ground water, surface water, tertiary treated effluent, storm water or wastewater with <30 mg/L of total suspended solids. Standard filtration media includes sand media for suspended solids removal, granular activated carbon (GAC) for removal of organics, colour, odour or chlorine and DMI-65 greensand for dissolved iron and manganese. Additional filtration media, such as calcite for hardness correction and various ion exchange resins, are available on request.

Additional pre-filtration and post-filtration treatment steps may be added as required to suit feed water conditions and/or treated water quality requirements. MMF plants are available as skid mounted or containerized systems.

Standard specification MF-M/L

Parameter MF-M50 MF-M500 MF-L1000 MF-L2500 MF-L5000
Filtrate flow rate*1 50 500 1,000 2,500 5,000
Feed/filtrate water flow 2.1 21.3 42.6 106.4 212.8
Backwash water flow 1.5~3 x feed water flow
Power consumption Feed/backwash pump*2, *3 1.1 5.5 11 30 55
Air conditioned containers*2 1.9 kW per 20’ container / 3.8 kW per 40’ container
Power supply AC 415V, 3 Phase 50 Hz
Recovery rate 90~98%
Filtration velocity Sand Media 20 (design value can be adjusted )
DMI-65 media 10 (design value can be adjusted )
Empty bed contact time GAC media 10 (design value can be adjusted )
UV dose rate*2 Typical >40 @ 90% UVT
Feed/backwash water inlet
pressure		 Without pump 300~600
With pump ≥20 (flooded suction)
Pressure drop Sand media 50~200
DMI-65 media 50~200
GAC media 50~200
Cartridge filter*2 50~200
Ambient
temperature
(min/max)		 Skid mounted 5~30
Containerised -5~40
Containerised with insulation -15~50

Parameter Units Sand media DMI-65 media GAC media
Feed water Filtrate Feed water Filtrate Feed water Filtrate
Temperature °C 5~36 5~36 5~36
Total suspended solids (TSS) mg/L <30 <5*4 <5 <5*4 <5 <5*4
Turbidity NTU <15 <5*4 <5 <5*4 <5 <5*4
Filtration degree µm 5 - -
Dissolved iron & manganese mg/L - - <10 <0.1 - -
Total organic carbon (TOC) mg/L - - - - <10 <0.1
Colour HCU - - - - Up to 98% reduction
Trihalomethanes µg/L - - - - <1,000 <250*5

*1Based on operating for 23.5 hours per day with 0.5 hours downtime for backwashing, *2Optional equipment, *3Pump size may vary according to feed water quality and plant configuration, *4Nominal, can be improved with optional 1 micron cartridge filter, *5Dependent on competing organics

5000TPD Multimedia Filter Water Treatment Pressurized Filtration

5000TPD Multimedia Filter Water Treatment Pressurized Filtration

5000TPD Multimedia Filter Water Treatment Pressurized Filtration

5000TPD Multimedia Filter Water Treatment Pressurized Filtration
