150m3/H Industrial Water Clarifier
150m3/H Industrial Water Clarifier
150m3/H Industrial Water Clarifier
150m3/H Industrial Water Clarifier
150m3/H Industrial Water Clarifier
150m3/H Industrial Water Clarifier
150m3/H Industrial Water Clarifier
150m3/H Industrial Water Clarifier
Specifications
Brand Name :
Fenigal/OEM
Model Number :
LC1
Certification :
CE/ISO etc.
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
T/T, Western Union, Paypal etc.
Supply Ability :
200 set per month
Delivery Time :
15~30 days
Packaging Details :
Standard Export Wood Crate/Carton or Naked wrapped by film/Containerized
Technology :
Sedimentation Tank Theory
Membrane :
Carbon sheet steel/PP plate
Design :
Skid mount/containerized
Water temp. :
5~35˚C
Water flow rate :
up to 1,000 m3/day
Voltage :
380V,415V,220V,can be customized
Application :
surface-ground water/sewage water clarification
Control :
electronic,Manual/PLC
Description

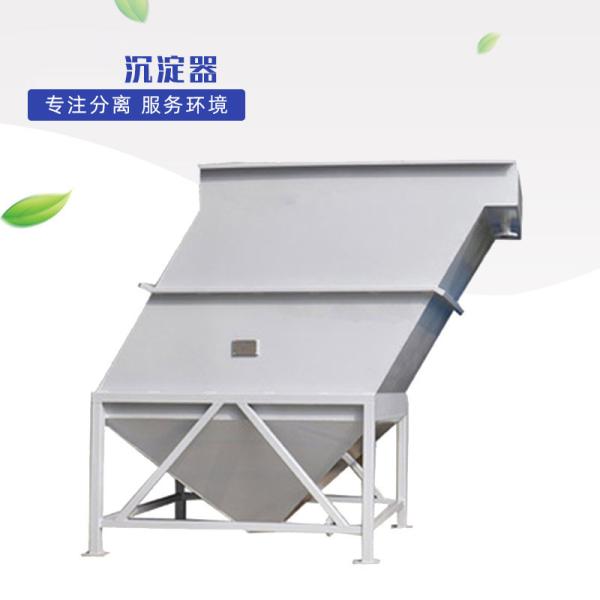

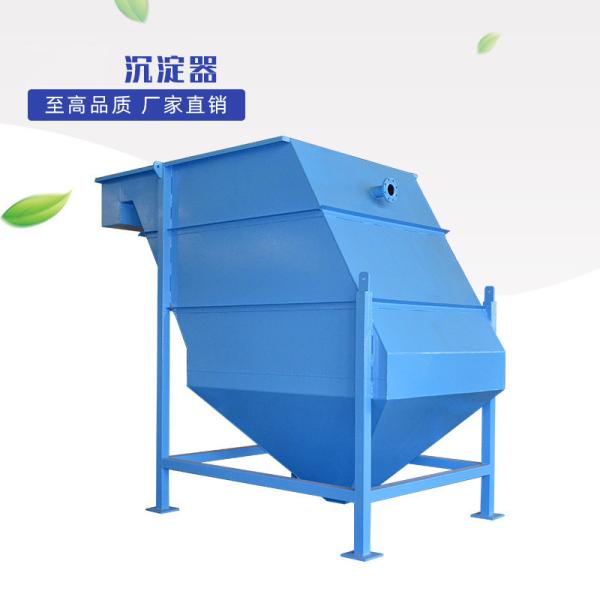

Lamella Clarifier for industrial sewage or waste water clarification 150m3/h Conical Bottom

Lamella clarifier (inclined-plate clarifier) is designed to remove particulates from liquids.LST1 is of simple structure, no energy consumption, and it could be detached and assembled on site in order to meet the transportation requirements.

Lamella clarifier is a high efficient solid-liquid separation device equipped with a series of inclined plates with smaller footprint comparing with traditional sedimentation tank.
LC1 is of simple structure, no energy consumption, and it could be detached and assembled on site in order to meet the transportation requirements.


Process principle and mechanism
Lamella Clarifier system is based on the "shallow tank theory" of German Hazen professor put forward by the early 20th century.Core theory is : sedimentation performance depends on effective settling area, nothing to do with sedimentation depth.Lamella clarifier system settling area is inclined plate projection area accumulation.

Principle of the sedimentation

Lamella clarifier is a high efficient solid-liquid separation device equipped with a series of inclined plates with smaller footprint comparing with traditional sedimentation tank

Characteristics and advantages:
1.Higher efficiency, smaller footprint: inclined plates extended to 1.5m, separation efficiency improved (higher 1.5 ~ 2.0 times) comparing with radial flow clarifier and vertical clarifier and save 80% of area.

2.Excellent hydraulic conditions: no hydraulic dead corner and vortex, better settling performance.
3. Inclined plates Chokeless :plates are of angle 60 degrees, spacing between 80 ~ 100 mm, adopting the back-washing device.
4. Strong and durable: Inclined plates are breakless, collapseless. Adopting 6mm hard PVC board or 8 mm high quality PP board as special separation plate, module embedded installation, high strength, easy disassembling and maintenance.
5.Sludge discharge smoothly : no dead angle, sludge pump is recommended .

LC1 Lamella Clarifier of conical bottom (without scraper) Specification

Model Capacity Dimension(m) Nozzle list(DN)GB/JIS/ANSL
(m3/h) L W H1/H2 Inlet Outlet Sludge outlet Backwash
LC1-001 ~1 1.6 0.8 2.0/2.0 25 25 50 50
LC1-003 ~3 1.6 1.1 2.0/2.0 50 50 50 50
LC1-005 ~5 2.6 1.6 2.9/2.9 80 50 50 50
LC1-010 ~10 3.4 1.8 3.6/1.8 100 80 50 50
LC1-020 ~20 3.4 2.2 3.6/1.8 150 100 50 50
LC1-030 ~30 4.2 2.2 4.0/2.2 150 150 50 50
LC1-040 ~40 5.3 2.2 3.6/1.8 200 150 50*2 50
LC1-050 ~50 6.3 2.2 3.8/2.0 200 200 50*2 50
LC1-060 ~60 7.2 2.2 4.0/2.2 250 200 50*2 50
LC1-070 ~70 7.2 2.6 4.0/2.2 250 200 50*2 50
LC1-080 ~80 7.2 2.7 4.0/2.2 250 200 80*2 50
LC1-090 ~90 6.7 3.1 4.0/2.2 250 250 80*2 50
LC1-100 ~100 7.2 3.1 4.0/2.2 250 250 80*2 50
LC1-120 ~120 8.3 3.3 4.0/2.2 250 250 80*2 50
LC1-150 ~150 9.8 3.3 4.0/2.2 250 250 80*2 50

LC2 Lamella Clarifier of flat bottom (with scraper) Specification

Model Capacity Dimension(m) Sludge scraper Nozzle list (DN) GB/JIS/ANSL
(m3/h) L W H1/H2 kw Inlet Outlet Sludge outlet Backwash
LC2-005 ~5 2.6 1.6 3.4/2.5 0.25 80 50 50 50
LC2-010 ~10 3.4 1.8 3.8/3.0 0.25 100 80 50 50
LC2-020 ~20 3.4 2.2 3.8/3.0 0.25 150 150 50 50
LC2-030 ~30 4.2 2.2 3.8/3.0 0.25 150 150 50 50
LC2-040 ~40 4.0 2.8 3.8/3.0 0.25 200 200 50 50
LC2-040 ~40 5.3 2.2 3.8/3.0 0.25*2 200 150 50*2 50
LC2-050 ~50 4.7 2.8 3.8/3.0 0.25 200 200 50 50
LC2-050 ~50 6.3 2.2 3.8/2.0 0.25*2 200 200 50*2 50
LC2-060 ~60 4.8 3.0 3.8/3.0 0.25 250 200 50 50
LC2-060 ~60 7.2 2.2 3.8/3.0 0.25*2 250 200 50*2 50
LC2-070 ~70 5.1 3.2 3.8/3.0 0.25 250 200 80 50
LC2-080 ~80 5.1 3.4 4.0/3.2 0.25 250 250 80 50
LC2-090 ~90 6.3 3.0 4.0/3.2 0.25*2 250 250 80*2 50
LC2-100 ~100 7.1 3.0 4.0/3.2 0.25*2 250 250 80*2 50
LC2-110 ~110 7.8 3.0 4.0/3.2 0.25*2 300 250 80*2 50
LC2-120 ~120 8.3 3.0 4.0/3.2 0.25*2 300 300 80*2 50

Application Industry
Electronic wastewater
Chemical phosphorus removal
Electroplating wastewater
Paper and pulp wastewater
Wastewater before filter or back-washing wastewater treatment
Advanced treatment of the WWTP
River purification
