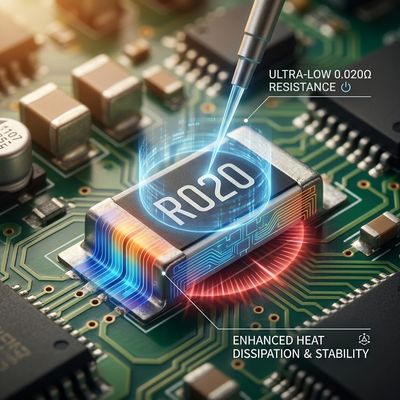

20m ohm（0.02 ohm） 0508 Wide Terminal Chip Resistor 1W ±1% HTE Walter High Precision SMD
20m ohm（0.02 ohm） 0508 Wide Terminal Chip Resistor 1W ±1% HTE Walter High Precision SMD
20m ohm（0.02 ohm） 0508 Wide Terminal Chip Resistor 1W ±1% HTE Walter High Precision SMD
20m ohm（0.02 ohm） 0508 Wide Terminal Chip Resistor 1W ±1% HTE Walter High Precision SMD
20m ohm（0.02 ohm） 0508 Wide Terminal Chip Resistor 1W ±1% HTE Walter High Precision SMD
20m ohm（0.02 ohm） 0508 Wide Terminal Chip Resistor 1W ±1% HTE Walter High Precision SMD
Specifications
Size :
0508(1.2mm*2.0mm)
Temperature Coefficient :
±50 ppm/°C
Tolerance :
±1%
Features :
High precision, high power, low temperature ticket, low inductance
Model Number :
HTE0805M1W0R020F
Applications :
Current sensing, power supply, motor control, battery management, frequency converter, 5G base station, LED lighting,
Resistance Range :
20m ohm（0.02 ohm）
Payment Terms :
T/T
Material :
MnCu alloyv
Series :
HTE
Brand Name :
Walter
Delivery Time :
3-5 work days
Packaging Details :
5000
Power Rating :
1W
Place of Origin :
Made in China
Manufacturer :
Walter
Supply Ability :
Large volume available
Operating Temperature Range :
-55°C to +155°C
Certification :
RoHS / REACH
Per Reel :
5000
MOQ :
5000
Price :
Negotiable
Description
Product Overview
0508 Wide Terminal Resistor 20m Ohm Compact Resistor 1W for Power Supply, Motor Control and Battery Management. This 0508 wide terminal chip resistor from Walter HTE series delivers 20m ohm (0.02 ohm) resistance with ±1% tolerance and 1W rated power, providing designers with a compact surface-mount component that maintains stable performance under load and temperature variations.
Technical Specifications
ManufacturerWalter
SeriesHTE
Size0508 (1.2mm × 2.0mm)
Resistance Range20m ohm (0.02 ohm)
Tolerance±1%
Power Rating1W
Operating Temperature Range-55°C to +155°C
Temperature Coefficient±50 ppm/°C
MaterialMnCu alloy
Key Features
  • Stable 1W rated power handling for demanding circuits
  • ±1% tolerance for dependable measurement accuracy
  • Low ±50 ppm/°C temperature coefficient that maintains stable values during temperature fluctuations
  • MnCu alloy element material for consistent, repeatable performance
  • Compact 0508 SMD footprint suitable for high-density reflow assembly
  • RoHS / REACH compliant construction for lead-free manufacturing
Applications
  • Current sensing circuits
  • Power supply systems
  • Motor control applications
  • Battery management systems
  • Frequency converters
  • 5G base station equipment
  • LED lighting systems
The MnCu alloy construction and stable electrical behavior help designers meet tight tolerances in current sensing, power conversion, and protection circuits, while the compact 0508 body maintains efficient board space utilization.
Manufacturing Advantages
Purchasing directly from the manufacturer ensures the HTE series remains available at competitive pricing with short lead times. Every batch undergoes comprehensive electrical testing before packaging, guaranteeing that the specified resistance and tolerance values are precisely delivered.
Packaging & Quality Assurance
Supplied on tape and reel for automatic pick-and-place assembly, in standard reel quantities optimized for SMT production lines. All shipments comply with RoHS and REACH regulations and include certificates of compliance upon request. Contact us for samples, datasheets, and volume pricing tailored to your project requirements.
20m ohm（0.02 ohm） 0508 Wide Terminal Chip Resistor 1W ±1% HTE Walter High Precision SMD
Application reference: 0508 Wide Terminal Resistor 20m Ohm Compact Resistor 1W
