Monochrome / RGB Flex Neon Strip Light 0408 Side Bend Series 2219/2835 24V
Monochrome / RGB Flex Neon Strip Light 0408 Side Bend Series 2219/2835 24V
Monochrome / RGB Flex Neon Strip Light 0408 Side Bend Series 2219/2835 24V
Monochrome / RGB Flex Neon Strip Light 0408 Side Bend Series 2219/2835 24V
Monochrome / RGB Flex Neon Strip Light 0408 Side Bend Series 2219/2835 24V
Monochrome / RGB Flex Neon Strip Light 0408 Side Bend Series 2219/2835 24V
Monochrome / RGB Flex Neon Strip Light 0408 Side Bend Series 2219/2835 24V
Monochrome / RGB Flex Neon Strip Light 0408 Side Bend Series 2219/2835 24V
Specifications
MOQ :
100M
Place of Origin :
CHINA
Brand Name :
RELIGHT
Certification :
CE,ETL,UL
Model Number :
0408
Color Options :
2700k, 3000k, 4000k
Material :
Silicone
Dimmable :
Yes
Waterproof grade :
IP67
Application :
hotels, KTVs, homes, cabinets, courtyards, etc.
Installation Method :
Adhesive tape
Waterproof  grade :
IP67
Storage environment temperature :
-25~+70°C
Working temperature :
-25~+60℃
Features :
Good flexibility, small size, light weight, easy installation
Price :
Contact us to get best price
Delivery Time :
2-3weeks
Payment Terms :
T/T
Supply Ability :
10000M/M
Description

Product description:

● Using silicone extrusion process, 04*08Mini size design

● Uniform light emission, good appearance consistency

● Anti-yellowing, high temperature resistance, corrosion resistance, weak acid and alkali resistance

● Good flexibility, small size, light weight, easy installation

● Food-grade, environmentally friendly silicone material.

● Waterproof grade IP67

● 3 years warranty

Features:

1. Color-rich (Monochrome/RGB)

2. Small size, uniform illumination, excels in contour outlining

3. High IP rating: IP65/67 optional

4. High efficacy, long lifespan, high reliability, excellent color consistency

Technologies: ON/OFF

Application:

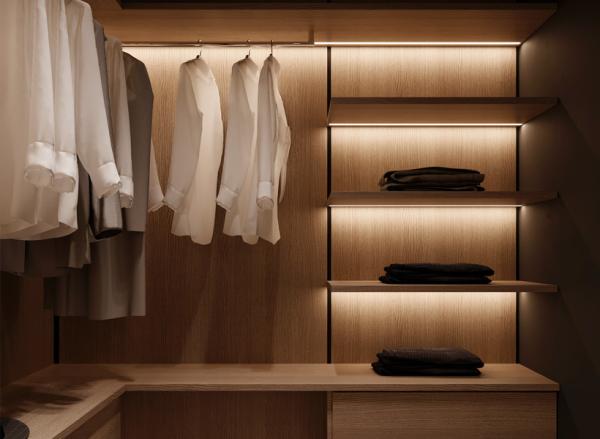

·This product is suitable for hotels, KTVs, homes, cabinets, courtyards, etc., for contouring, atmosphere lighting, decorative lighting and other purposes.

Color Options:

Monochrome / RGB Flex Neon Strip Light 0408 Side Bend Series 2219/2835 24V

Dimensions

Monochrome / RGB Flex Neon Strip Light 0408 Side Bend Series 2219/2835 24V

Beam Angle

Monochrome / RGB Flex Neon Strip Light 0408 Side Bend Series 2219/2835 24V

Sectional drawing

Monochrome / RGB Flex Neon Strip Light 0408 Side Bend Series 2219/2835 24V

Recommended Accessories

Monochrome / RGB Flex Neon Strip Light 0408 Side Bend Series 2219/2835 24V

Side exit Bottom Exit Direct Exit End cap Bendable Profile Clip cable

end cap end cap End cap

Optical parameters

P/N LED
Quantity		 T CRI LED
(8M)		 LUMENS (Im/m) Vf.
(V.)		 Current
(mAM) 		Power
W/M)		 Cut Length
(MM)		 Max Run
( M)
RL-FV2404180221906-XXX-FWS0408 2219 2700 80/90 180 120 24V 250 6 33.3 5
3000 120
4000 130
RL-FV2404168283506-XXX-FWSO408 2835 2700 80/90 168 130 24V 250 6 35.7 5
3000 130
4000 140

Other Specifications

Protection grade

IP67

Working temperature(℃)

-25~+60

Standardlength(℃)

-25~+70

Maximum cascade length(m)

5

Maximum cascade length(m)

5

weight

/

Remark

· The test environment temperature is 25±2℃;

· The above data are typical values,the actual parameters of the product may be different from the typical data;the data is subject to change without notice;

· The above"/"means that this parameter is not required for the time being.

Applied Standards

Monochrome / RGB Flex Neon Strip Light 0408 Side Bend Series 2219/2835 24V

Installation

Note:Due to the different types and attributes of neon lights, please refer to the, line marks for the bending radius

Monochrome / RGB Flex Neon Strip Light 0408 Side Bend Series 2219/2835 24V

Mounting with aluminium profiles

Install with the screws provided. Do not use screws of other types or sizes that do not meet requirements.

Monochrome / RGB Flex Neon Strip Light 0408 Side Bend Series 2219/2835 24V

Monochrome / RGB Flex Neon Strip Light 0408 Side Bend Series 2219/2835 24V
