Features

1- Anti-Glare UGR <15: Advanced optical design with a honeycomb coverto minimize glare and ensure visual comfort.

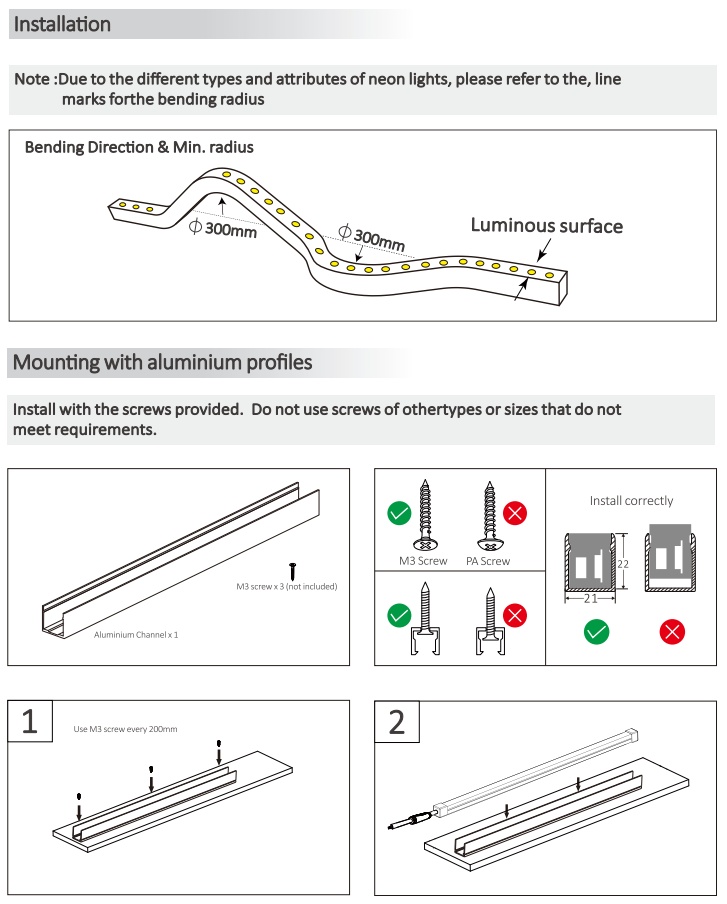

2- Adjustable Bending: Front/side flexible bending ,minimum bending diameter: 300mm,Each LED is protected by optimized circuit and structuraldesign, paired with superior heat dissipation for long-lasting durability.

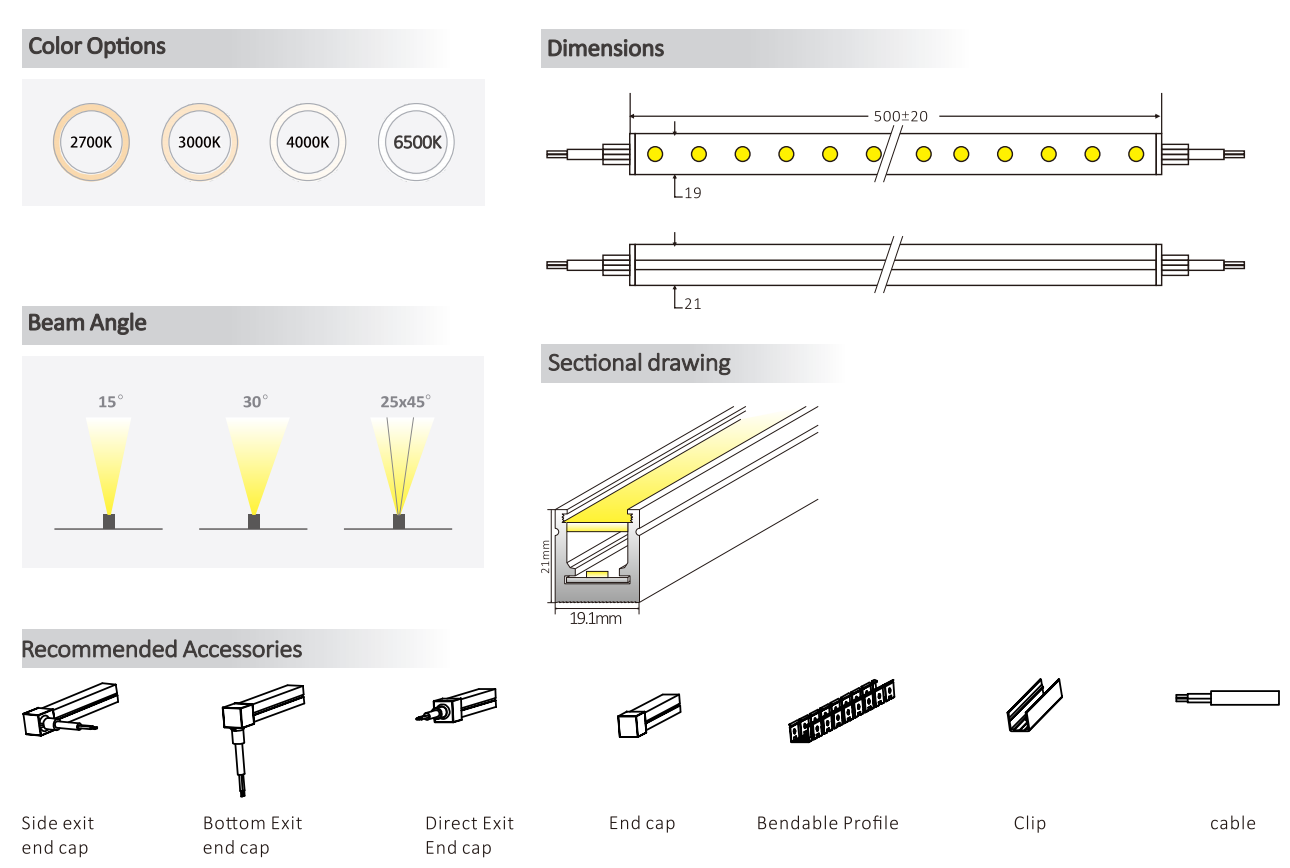

3- Beam Angles: 15°, 30°, 25x45°, and other customizable options for versatile lighting effects.
4- Wall Washing Performance: High-efficiency illumination with uniform lightdistribution, no color deviation, and excellent glare control.
5- Waterproofgrade lP67
6- 3 years warranty

Technologies: ON/OFF

Application:

This product is ideal forengineering projects,indoor/outdoor decorationoutdoor lighting enhancement, and decorative illumination in buildingshotels, shopping malls, and similar commercial or architectural spaces.

Product Specifcations

Other Specifications

Remark

· The test environment temperature is 25±2℃;

· The above data are typical values,the actual parameters of the product may be different from the typical data;the data is subject to change without notice;

· The above"/"means that this parameter is not required for the time being.

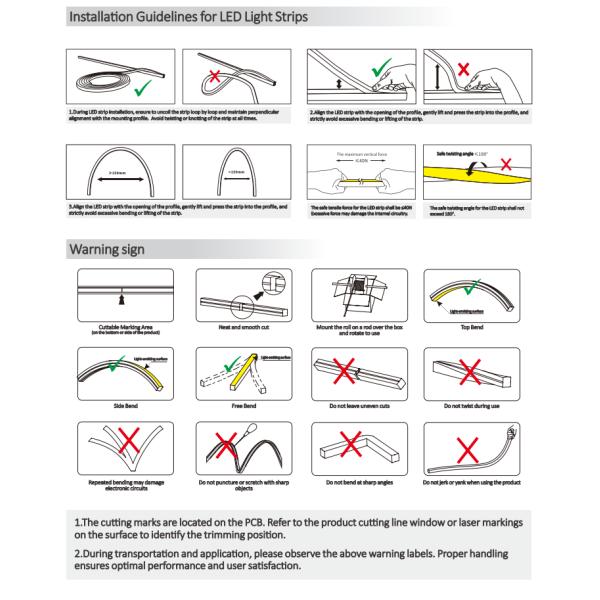

Installation Notes & Other Precautions

● Confirm all product parameters match your requirements

(refer to the "Product Specifications"document/manual or product label)

● Ensure the power supply and load voltage,current,and power ratings are compatible with this product

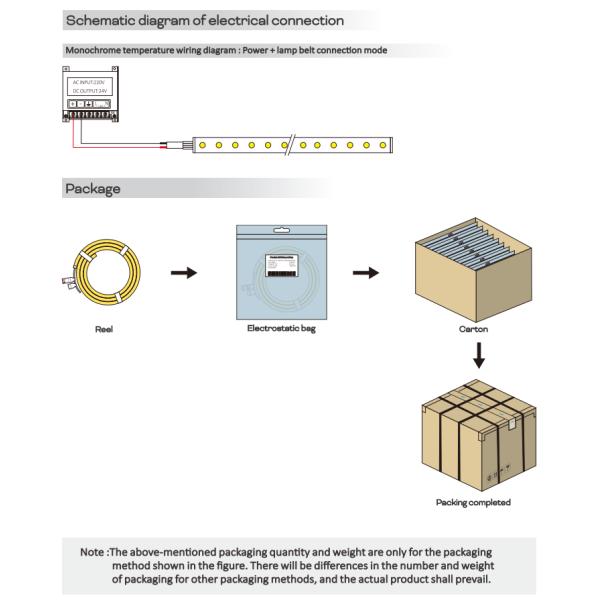

● Connect wires according to the wiring diagram (connect load before power supply/energizing) Take care to avoid short circuits during installation

● Ensure correct polarity alignment between product wires and power supply terminals (incorrect connection will prevent illumination)

● Power wires must be securely fastened in terminal blocks

(test by attempting to pull out by hand-wires should not come loose)

● All wiring terminals must receive proper waterproof and anti-corrosion treatment

Product Common Faults and Troubleshooting Methods

● Do not disassemble or modify this light.Sharp objects are prohibited from touching the LED surface.
● Live working is prohibited during installation.
● Do not use any oil-based chemical solvents.
● When using neutral silicone sealant to fix the product,it must be cured for more than 4 hours in a spacious and well-ventilated environment before enclosure.
● During installation,ensure all unconnected wire ends and branch connection points are properly insulated,waterproofed,and anti-corrosion treated as required.
● If extending the product's power supply cable,use 18AWG(0.75mm²cross-section)or thicker wire as specified to prevent overheating and potential hazards caused by excessive current.
● Before powering on,verify that the supply voltage meets requirements and the circuit is correctly installed.
● This product is designed for advertising signage purposes and should not be used as primary lighting.
● Strictly prohibit exceeding the maximum number of series connections or cascading length.
● The power cable between the power supply and product should not exceed the specified length (standard limit: 2 meters unless otherwise specified), as excessive length willincrease line loss and cause brightness inconsistency between the product's start and end points.
● Installation, maintenance, and repairs must be performed by qualified professionals; unauthorized personnel are strictly prohibited from conducting these operations.
