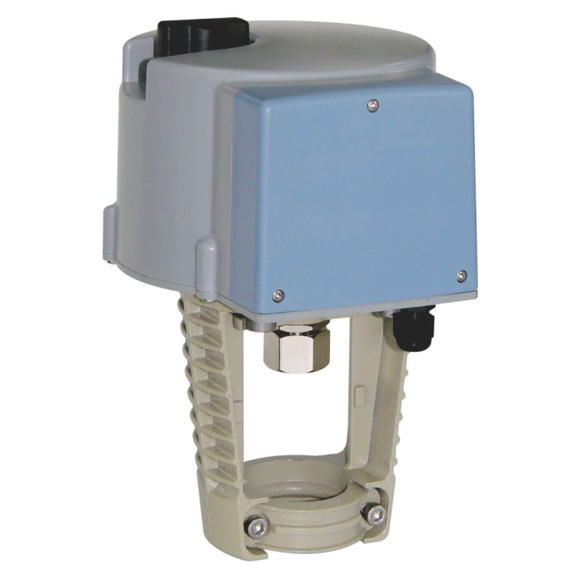

Electrically Controlled HVAC Control Parts Refrigeration Motorised Valve Actuator
Electrically Controlled HVAC Control Parts Refrigeration Motorised Valve Actuator
Electrically Controlled HVAC Control Parts Refrigeration Motorised Valve Actuator
Electrically Controlled HVAC Control Parts Refrigeration Motorised Valve Actuator
Electrically Controlled HVAC Control Parts Refrigeration Motorised Valve Actuator
Electrically Controlled HVAC Control Parts Refrigeration Motorised Valve Actuator
Specifications
Brand Name :
Hengxiang
Model Number :
DFQ-XEK, DFQ-XEM
Certification :
SCOC
Place of Origin :
China
MOQ :
300 Sets
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
50000 PCS/Month
Delivery Time :
30 Working days
Packaging Details :
Carton
Product Name :
Motorized zone valve
Material :
Aluminum Alloy
Weight :
1.6kg
Fluid Temperature :
<150℃
Warranty :
1 year
Thrust :
1000N
Power :
Electric, 24VAC±10% 50/60Hz
Customized support :
OEM, ODM
Description

Refrigeration Hvac Valve Actuator Electrically Controlled Valve For Air Conditioner

Product Introduction:

DQF-X series motorised valve actuator is matched with 2,3-way motorised valve to adjust the medium flow.It's widely used in central air conditioning system, heating system and other occasions to meet the user from simple single-room temperature control to complex building automatic control requirements. It can achieve the required ambient temperature,obtain a comfortable environment and save energy through flow control.

Product Features:

1. Easy installation.


2. Terminal limit switch


3. Connecting rod is unnecessary


4. Forward and reverse action


5 .Accurate valve positioning


6. Synchronous motor


9. With manual operator


10. Corrosion protection design


11. Maintenance free

Loading Port & Delivery

Loading Port: Ningbo/Shanghai

Delivery Support: By Land, by Sea or by Air

Product Type and Size:

Order No.
Model
Model
Adaptation motorized valve
H12563
DFQ-XEK
ON/OFF,24VAC
X series valve range from DN32-80
H12660
DFQ-XEK-220
ON/OFF,220VAC
X series valve range from DN32-80
H12564
DFQ-XEM
Modulation,24VAC
X series valve range from DN32-80
H12661
DFQ-XEM-485
Modulation,with RS-485 interface
X series valve range from DN32-80

Model No.
DFQ-XEM
DFQ-XEM-485
DFQ-XEK
DFQ-XEK-220
Power
24VAC±10% 50/60Hz
220VAC±10% 50/60Hz
Power consumption
5.6W when frequency is 50Hz
6W when frequency is 60Hz
Input signal
0(2)~10V,0(4)~20mA optional
24VAC
220VAC
Signal feedback
0(2)~10V
0(2)~10V,
0(4)~20mA optional
24VAC
220VAC
Thrust
1000N
Journey
22mm
Journey time
50Hz,105s
60Hz,90s
Material
Gear: formaldehyde, nylon
Lower plate of reducer: galvanized steel
Bracket: die-cast aluminum alloy
Housing: flame retardant ABS engineering plastic
Temperature
Ambient temperature: -10 ~ +50℃ Storage temperature: -40 ~ +50℃
Protection Class
IP54
Humidity
1%-95% RH no dew
Fluid temperature
<150℃
Weight
1.6Kg

Electrically Controlled HVAC Control Parts Refrigeration Motorised Valve Actuator
