Refrigeration Equipment Motorized Ball Valve Dn20 Brass For Air Conditioning
Refrigeration Equipment Motorized Ball Valve Dn20 Brass For Air Conditioning
Refrigeration Equipment Motorized Ball Valve Dn20 Brass For Air Conditioning
Refrigeration Equipment Motorized Ball Valve Dn20 Brass For Air Conditioning
Refrigeration Equipment Motorized Ball Valve Dn20 Brass For Air Conditioning
Refrigeration Equipment Motorized Ball Valve Dn20 Brass For Air Conditioning
Refrigeration Equipment Motorized Ball Valve Dn20 Brass For Air Conditioning
Refrigeration Equipment Motorized Ball Valve Dn20 Brass For Air Conditioning
Specifications
Brand Name :
Hengxiang
Model Number :
DQF-B*DQQ-B1
Certification :
SCOC
Place of Origin :
China
MOQ :
100 PCS
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
50000 PCS/ per Month
Delivery Time :
30 Working days
Packaging Details :
Carton
Material :
Forging brass and PTFE/HNBR
Type :
Valve 2- way
Color :
Blue, Black, Red. Golden
Size :
9*9
Customized support :
OEM, ODM
Warranty :
1 year
Temperature of Media :
5-95 degree
Working medium :
Water
Description

Refrigeration Equipment Brass Kv9.5 Dn20 Motorized Ball Valve for Air Conditioning

Product Info:

Pressure: 1.6Mpa

KVS: 9.5

Connection: Thread

Valve opening Torque: DN15~DN25<1N.m,DN32~50<2N.m

Actuator torque:2N.m Nominal Pressure:16MPa

Fluid temperature 5-95

Product Advantages:

1.Easy installation and cost saving.

2.Closing tightly and having a great differential pressure.

3.Water flow smoothly and it won't be blocked by slag. KVS value

is much larger than common -way valve.

4.Valve opens sofety to guard effectively against water hammer.

Loading Port & Delivery

Loading Port: Ningbo/Shanghai

Delivery Support: By Land, by Sea or by Air

Product Type and Details:

Order
No.		 Model No. Valve
Type		 DN Thread
Size		 Kvs Maximum
differential
pressure

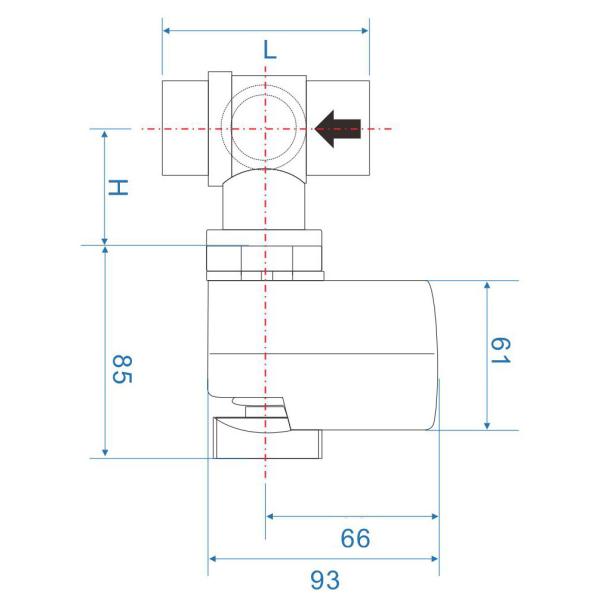

kPa		 Demension
L H
H15009 DQF-B-215*DQQ-B1K-220 2-way 15 G1/2 5.6 600 60 30
H15079 DQF-B-220*DQQ-B1K-220 2-way 20 G3/4 9.5 600 68 34
H15163 DQF-B-225*DQQ-B1K-220 2-way 25 G1 9.5 500 89 38
H15216 DQF-B-315*DQQ-B1K-220 3-way 15 G1/2 5.6 600 60 30
H15286 DQF-B-320*DQQ-B1K-220 3-way 20 G3/4 9.5 600 67 35
H15356 DQF-B-325*DQQ-B1K-220 3-way 25 G1 13 500 89 38
H15008 DQF-B-215*DQQ-B1M-24AC 2-way 15 G1/2 5.6 600 60 30
H15078 DQF-B-220*DQQ-B1M-24AC 2-way 20 G3/4 9.5 600 68 34
H15162 DQF-B-225*DQQ-B1M-24AC 2-way 25 G1 9.5 500 89 38
H15215 DQF-B-315*DQQ-B1M-24AC 3-way 15 G1/2 5.6 600 60 30
H15285 DQF-B-320*DQQ-B1M-24AC 3-way 20 G3/4 9.5 600 67 35
H15355 DQF-B-325*DQQ-B1M-24AC 3-way 25 G1 13 500 89 38

Note: the table above is the commonly recommended model. Please refer to the below model selected
combination description for individual requirements. Please consult the sales staff for more details.

Product Functions:

Refrigeration Equipment Motorized Ball Valve Dn20 Brass For Air Conditioning

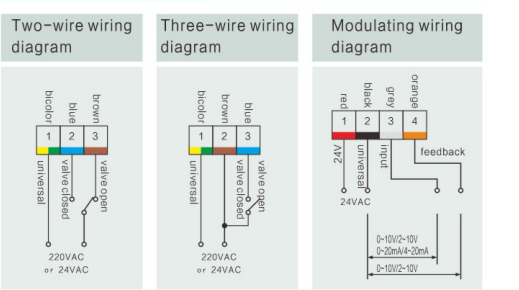

Wire Diagram:

Refrigeration Equipment Motorized Ball Valve Dn20 Brass For Air Conditioning

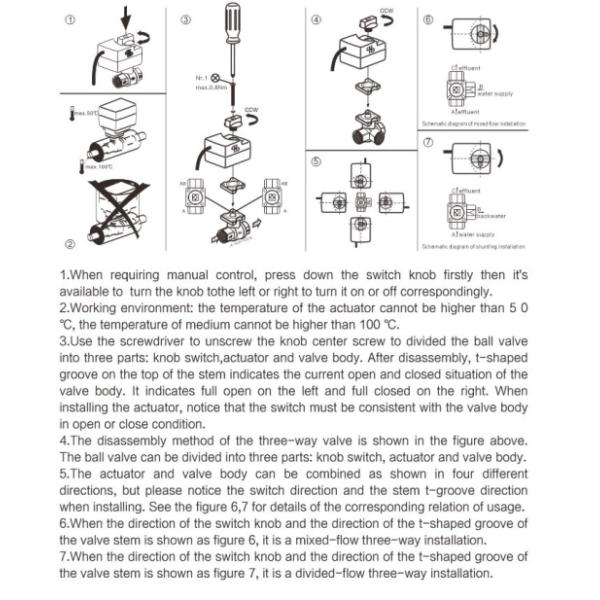

Installation Notes:

Refrigeration Equipment Motorized Ball Valve Dn20 Brass For Air Conditioning
