Stiffness Texture Aluminum Oxide Ceramic Tube OEM
Stiffness Texture Aluminum Oxide Ceramic Tube OEM
Stiffness Texture Aluminum Oxide Ceramic Tube OEM
Stiffness Texture Aluminum Oxide Ceramic Tube OEM
Stiffness Texture Aluminum Oxide Ceramic Tube OEM
Stiffness Texture Aluminum Oxide Ceramic Tube OEM
Specifications
Brand Name :
KAMTAI
Model Number :
KT99C
Certification :
ISO 9001
Place of Origin :
CHINA
MOQ :
10PCS
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram,PAYPAL
Supply Ability :
1000PCS/ MONTH
Delivery Time :
30 DAYS AFTER PAYMENT
Packaging Details :
WOODEN BOX
Name :
99% Alumina Ceramic tube
Size :
OD176*ID160*L750mm
Material :
99% Alumina ceramic
MOQ :
10PCS
Color :
Ivory White
Feature :
High temperature resistance
Description

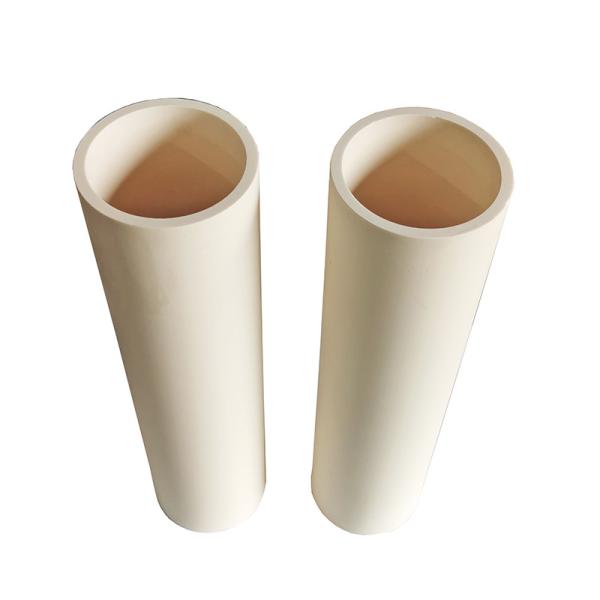

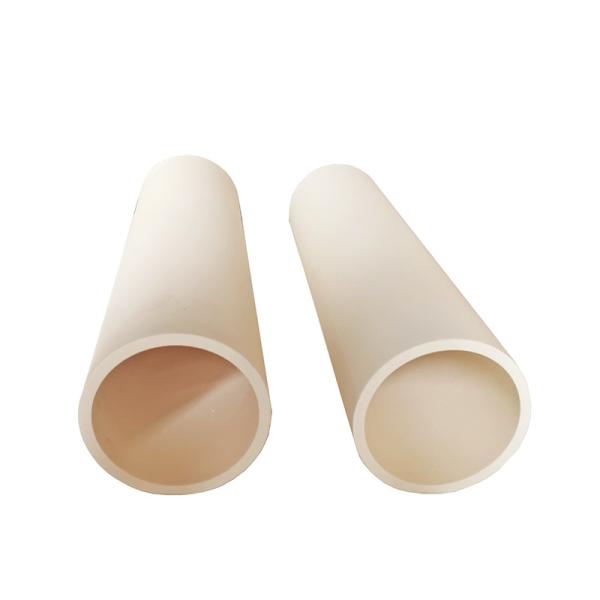

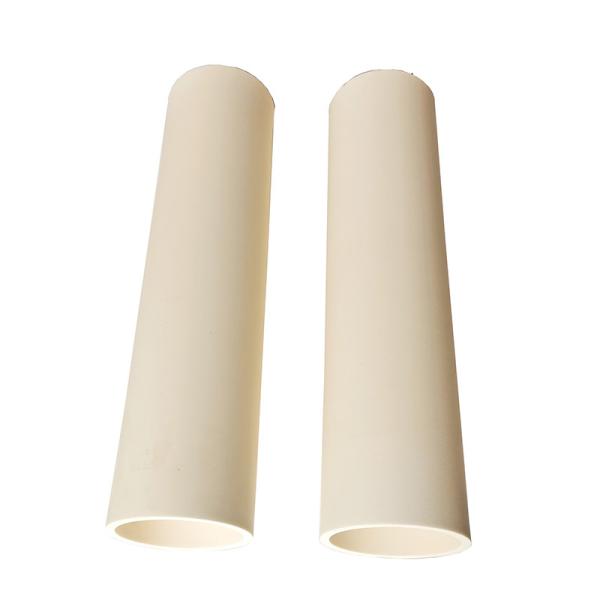

99% Alumina Ceramic TUBE

1. Alumina ceramic

Alumina ceramic is kind of structural ceramics, with insulation resistance, voltage resistance, high strength, good thermal conductivity, dielectric loss, stable electrical performance characteristics. Used in electronic ceramic substrates, ceramic electrical insulation, vacuum devices, devices porcelain, spark plugs and other products. We can make the part by hot injection pressing, dry pressing, isostatic pressing and extrusion productive technology etc.

2. Forming methods includes
Drying pressing
Isostatic pressing
Hot pressing casting


3. Features

1) A variety of specifications available.

2) Satisfy various technical request

3) Lower medium spoilage

4) Good insulation performance and high temperature resistance

5) Stiffness texture

6) Used in all electric products and electric heating products
7) OEM, ODM and OBM are welcomed

4. Technical Data

Tech-data Test conditions Unit 95% AL2O3 99.5% AL2O3
Density g/cm3 > 3.60 3.7
Bending Strength N/m3 2.24 × 108 > 2.74× 108
Linear Expansibility 20~1000C a× 10¯ 6 - -
20~5000C a× 10¯ 6 6.2~7.5 6.2~7.5
20~8000C a× 10¯ 6 6.5~8.0 6.5~8.0
Specific Inductive Capacity 1MHz 9~10 9~10.5
10GMHz 9~10 -
Dielectric Loss 1MHz a× 10¯6 ≤ 4 ≤ 1.5
Tangent 10GMHz a× 10¯6 ≤ 10 -
Volume Resistance 1000C Ω . cm > 1013 > 1014
3000C Ω . cm > 1016 > 1012
5000C Ω . cm 108 -
Breakdown Strength KV/mm 15 -
Thermal Conductivity 200C W/m. K 25.2 29.2

5. Advantage

1. Low MOQ: It can meet your promotional business very well.

2. OEM Accepted : We can produce any your design as long as you provide us the drawing.

3. Good Service : We treat clients as friend.

4. Good Quality :We have strict quality control system .Good reputation in the foreigner market

5. Fast & Cheap Delivery: We have big discount from forwarder (Long Contract).


Stiffness Texture Aluminum Oxide Ceramic Tube OEM
