Durable Aluminum Oxide Ceramic Round Disk Plate Disc High Temperature High Precision
Durable Aluminum Oxide Ceramic Round Disk Plate Disc High Temperature High Precision
Durable Aluminum Oxide Ceramic Round Disk Plate Disc High Temperature High Precision
Durable Aluminum Oxide Ceramic Round Disk Plate Disc High Temperature High Precision
Durable Aluminum Oxide Ceramic Round Disk Plate Disc High Temperature High Precision
Durable Aluminum Oxide Ceramic Round Disk Plate Disc High Temperature High Precision
Specifications
Brand Name :
KAMTAI
Model Number :
KTALP-1-R131-2
Certification :
SGS
Place of Origin :
CHINA
MOQ :
50PCS
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram,PAYPAL
Supply Ability :
15000PCS/ MONTH
Delivery Time :
25 DAYS AFTER PAYMENT
Packaging Details :
CARTON BOX AND PLYWOOD PALLET
Maximum Using Temperature :
1700
Hardness :
≥89GPA
Impact toughness :
≥3.8
Shape :
Square
Dielectric Strength :
16 kV/mm
Thermal Shock Resistance :
180-220
Description

Durable Aluminum Oxide Ceramic Round Disk Plate Disc High Temperature High Precision


1.Product description

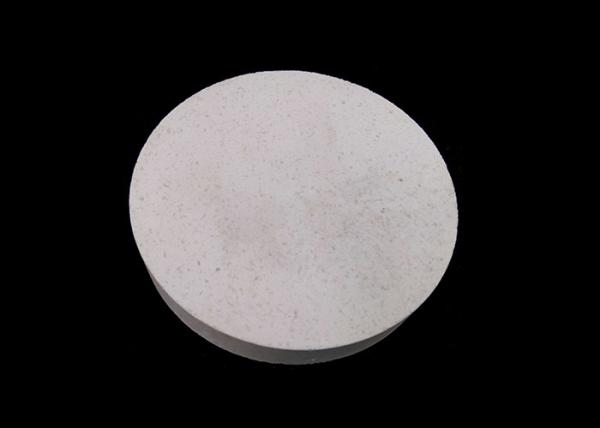

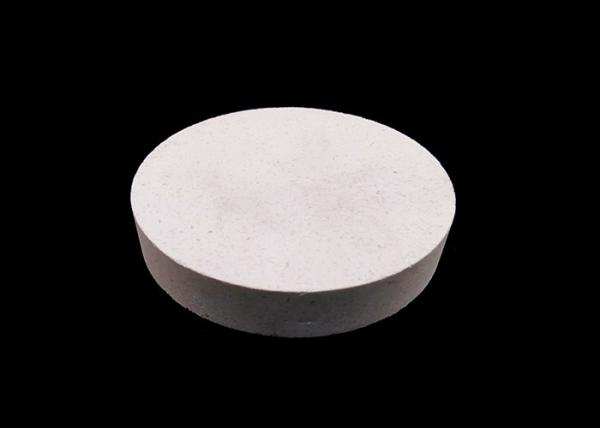

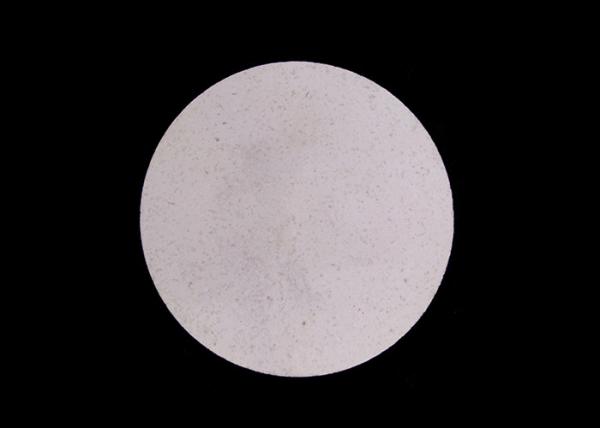

High Temperature High Precision Alumina Ceramic Round Disk Plate Disc

Advantages of High temperature resistant ceramic discs:

1. Refractory.

2. Self Lubricating

3. Long Service Life.

4. Good Polished Surface.

5. Environmental and Healthy.

6. Superior Mechanical Strength.

7. High Corrosion and Wear Resistance.

8. Good Insulation Performance Precision.

9. High Temperature and Pressure Resistance.

10. High Purity Zirconia and Alumina Ceramic Material.

Due to these outstanding properties, Ceramic Products are used in a wide range of industrial and advanced appications.

And a lot of practical applications prove that our ceramic products has reached a state of high standard and quality.

2.Technical Parameter:

Item Unit Symbol 95% Alumina Ceramics 99% Alumina Ceramics 99.7% Alumina Ceramics
Maximum Using Temperature ℃ 1600 1700 1700
Water Absorption % 0 0 0
Hardness Gpa ≥85 ≥89 ≥89
Flexural Strength MPa (psi x 103) 336 550 550
Compressive Strength MPa (psi x 103) 2000 2500 2500
Fracture Toughness Mpa 4~5 5.6 6
Thermal Conductivity W/m °K 18-25 30 30.4
Thermal Shock Resistance °C 220 180-220 180-220
Dielectricity Constant 9.4 9.8 9.8
Dielectric Strength kV/mm 16 22 22


3.Application

MGC: Machinable glass ceramic have the following applications:
a) Electrical or thermal insulator
b) Structural components
c) Semi-conductor processing
d) Electrical and opto-electronic equipment
e) Many other uses.

Durable Aluminum Oxide Ceramic Round Disk Plate Disc High Temperature High Precision
