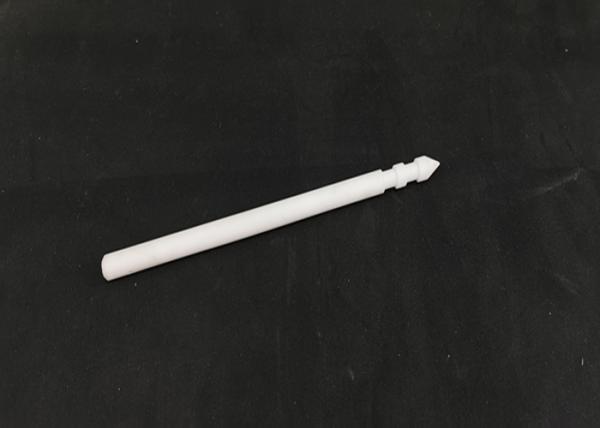

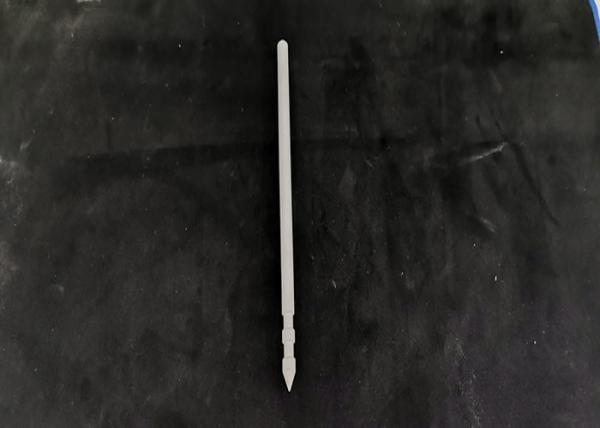

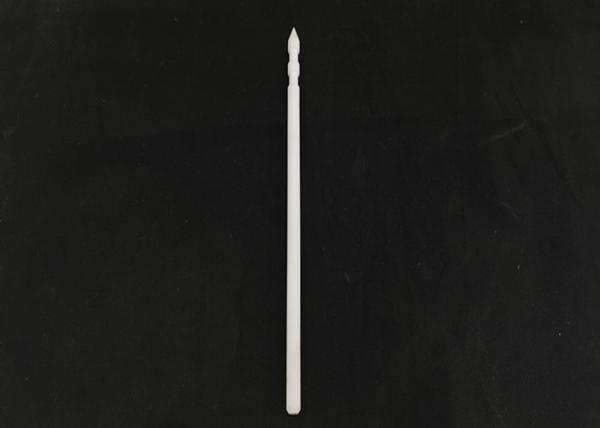

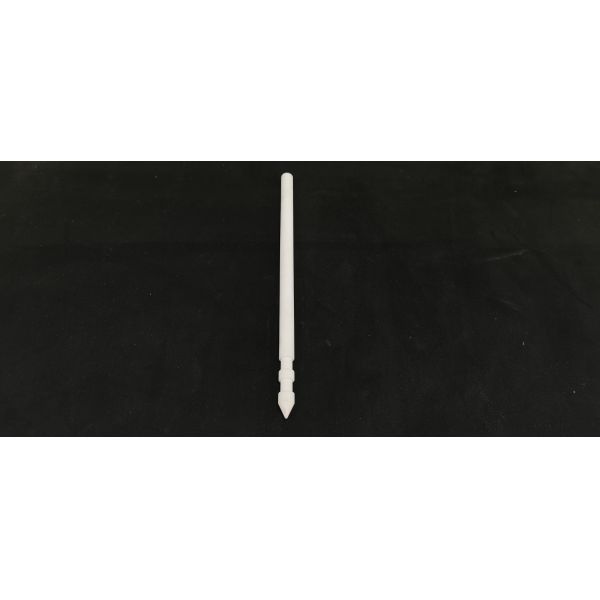

White 95% Aluminum Oxide Ceramic Stud For Furnace
White 95% Aluminum Oxide Ceramic Stud For Furnace
White 95% Aluminum Oxide Ceramic Stud For Furnace
White 95% Aluminum Oxide Ceramic Stud For Furnace
White 95% Aluminum Oxide Ceramic Stud For Furnace
White 95% Aluminum Oxide Ceramic Stud For Furnace
Specifications
Brand Name :
KAMTAI
Model Number :
KTALTD
Certification :
SGS
Place of Origin :
CHINA
MOQ :
1000PCS
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram,PAYPAL
Supply Ability :
15000PCS/ MONTH
Delivery Time :
25 DAYS AFTER PAYMENT
Packaging Details :
CARTON BOX AND PLYWOOD PALLET
Color :
White
Grade :
95%
Application :
Furnace use
Strength :
Very good
Package :
Carton box
Material :
Alumina ceramic
MOQ :
1000PCS
Description

High - Temperature Alumina Ceramic stud

1. Description

Alumina ceramic is kind of structural ceramics, with insulation resistance, voltage resistance, high strength, good thermal conductivity, dielectric loss, stable electrical performance characteristics. Used in electronic ceramic substrates, ceramic electrical insulation, vacuum devices, devices porcelain, spark plugs and other products. We can make the part by hot injection pressing, dry pressing, 200T isostatic pressing and extrusion productive technology etc.

2. Advantages:
1). Excellent insulation, security, long working life.2). High temperature resistance3). Resistance to electric breakdown4). Stand wear and tear5). High strength6). Corrosion resistance7). Good compactness8). HIgh hardness

3. Technical data of Alumina ceramic

Performance
95 Grade
99 Grade
Bulk Density
≥3.7 g/cm3
≥3.8 g/cm3
Tensile Strength
(Nrmal Temperature)
≥160 mpa
≥190 mpa
Bending Strength
(Nrmal Temperature)
≥280 mpa
≥310 mpa
Modulus of Elasticity
3.5*10 kg/cm2
3.6*10 kg/cm2
Modulus of Friction
0.06-0.1
0.06-0.1
DC Breakdown Strength
≥25 kv/mm
≥30 kv/mm
Rigidity(HV)or(HRA)
1650 mpa or ≥75
1650 mpa or ≥80

4. Application

White 95% Aluminum Oxide Ceramic Stud For Furnace

White 95% Aluminum Oxide Ceramic Stud For Furnace
