Supper Beige Color Insulating Electrical Steatite Ceramic Plug High Heat Resistance
Supper Beige Color Insulating Electrical Steatite Ceramic Plug High Heat Resistance
Supper Beige Color Insulating Electrical Steatite Ceramic Plug High Heat Resistance
Supper Beige Color Insulating Electrical Steatite Ceramic Plug High Heat Resistance
Supper Beige Color Insulating Electrical Steatite Ceramic Plug High Heat Resistance
Supper Beige Color Insulating Electrical Steatite Ceramic Plug High Heat Resistance
Specifications
Brand Name :
KT
Model Number :
KT-STEATITE 01
Certification :
SGS
Place of Origin :
CHINA
MOQ :
1000PCS
Price :
Negotiable
Payment Terms :
Western Union, MoneyGram, T/T, L/C
Supply Ability :
10000PCS/ MONTH
Delivery Time :
25days after payment
Packaging Details :
Carton box and plywood box
Material :
Steatite ceramic
Hardness Vickers :
5.7GPA
Elastic modulus :
120GPA
Poisson’s ratio :
0.21
Linear expansion coefficient :
7.9
Dielectric loss angle :
18
Dielectric strength :
18
Description

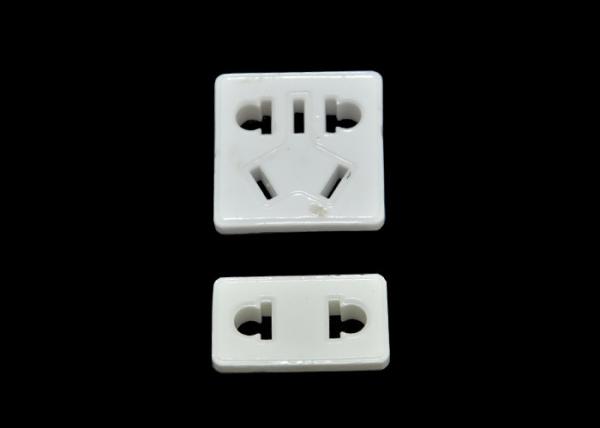

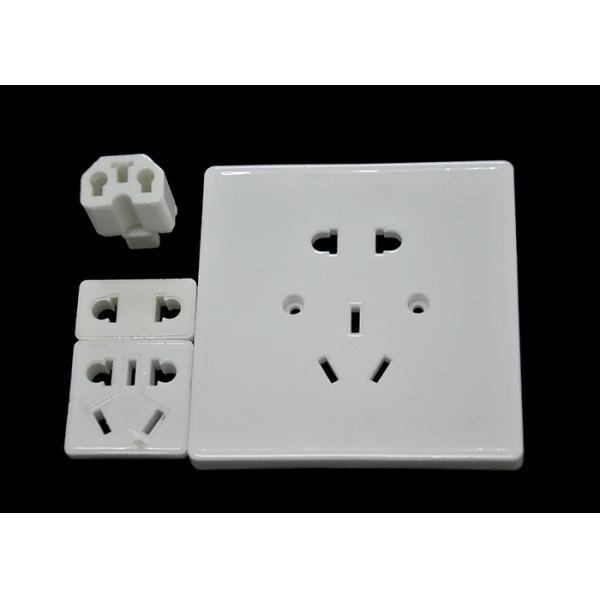

Insulating electrical steatite ceramic plug

1.Description

Smooth ceramic (high quality ceramic)is made of hot press injection technic, size is very accurately. We can produce and install according to customers demand size , joints have material as nickel-plate copper or coper, stainless steel screw, surface as zinc plating or nickel-plate treatment etc, it can endure high temperature as 425 C degree, Voltage 250V-450V, Current 10A-30A . Our products are made not-standard with high quality , it can be customerized by your request .

2.Material Index

Performance
Item Index Unit Steatite ceramic 95 Al2O3 96 Al2O3
Physical Characteristics Bulk density g/cm3 2.7 3.6 3.6
Water absorption % 0 0 0

Mechanical Characteristics		 Flexural strength Mpa 145 320 340
Hardness Vickers Gpa 5.7 12.2 13.5
Elastic modulus Gpa 120 280 320
Poisson’s ratio - 0.21 0.22 0.23
Thermal Characteristics Linear expansion coefficient 20-5000C 10-6/0C 7.9 7.1 7.2
Thermal conductivity w/(m.k) 2.5 16 24
Specific Heat *10-3J/(kg*K) 0.75 0.78 0.78
Electrical Characteristics Dielectric constant(1MHZ) - 6.2 9 9.4
Dielectric loss angle *10-4 18 15 5
Dielectric strength *106V/m 18 12 15

3. Advantages

Anti aging, fire protection and heat-resistance , good insulation property, strong mechnical property, good steady property. It can be used in different enviroment, also can meet mechnical device connection of severe working temperature etc.

4. Application

Electric Ceramic Connector is widely used in high temperature enviroment, kinds of connection terminal space of severe demand.

Supper Beige Color Insulating Electrical Steatite Ceramic Plug High Heat Resistance
