Industrial Insulation Aluminum Oxide Ceramic Heat Resistance Wear Resistance
Industrial Insulation Aluminum Oxide Ceramic Heat Resistance Wear Resistance
Industrial Insulation Aluminum Oxide Ceramic Heat Resistance Wear Resistance
Industrial Insulation Aluminum Oxide Ceramic Heat Resistance Wear Resistance
Industrial Insulation Aluminum Oxide Ceramic Heat Resistance Wear Resistance
Industrial Insulation Aluminum Oxide Ceramic Heat Resistance Wear Resistance
Industrial Insulation Aluminum Oxide Ceramic Heat Resistance Wear Resistance
Industrial Insulation Aluminum Oxide Ceramic Heat Resistance Wear Resistance
Industrial Insulation Aluminum Oxide Ceramic Heat Resistance Wear Resistance
Industrial Insulation Aluminum Oxide Ceramic Heat Resistance Wear Resistance
Specifications
Brand Name :
KAMTAI
Model Number :
KTJC14-29
Certification :
ISO 9001
Place of Origin :
CHINA
MOQ :
2500PCS
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram,PAYPAL
Supply Ability :
20000PCS/ MONTH
Delivery Time :
25 DAYS AFTER PAYMENT
Packaging Details :
CARTON BOX AND PLYWOOD PALLET
Name :
Industrial insulation heat-resistance wear-resistance alumina ceramic
Hardness :
≥85GPA
Maximum Using Temperature :
1500℃
Fracture Toughness :
4-5Mpa
Description

Industrial Insulation Aluminum Oxide Ceramic Heat Resistance Wear Resistance

1.Description

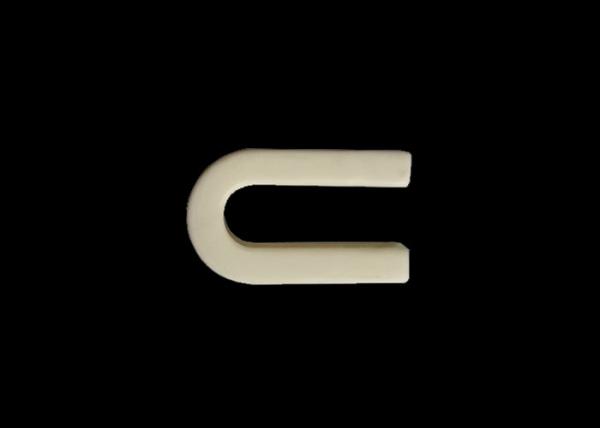

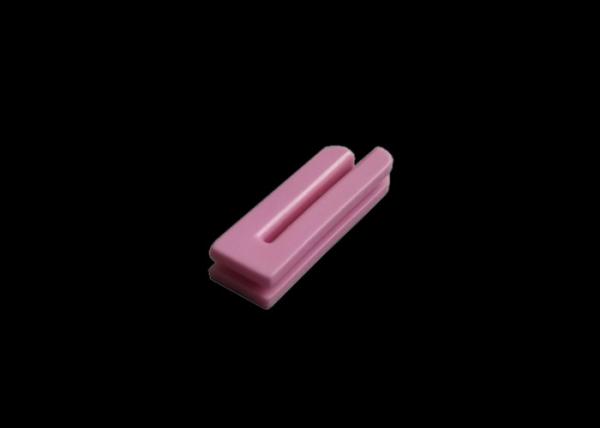

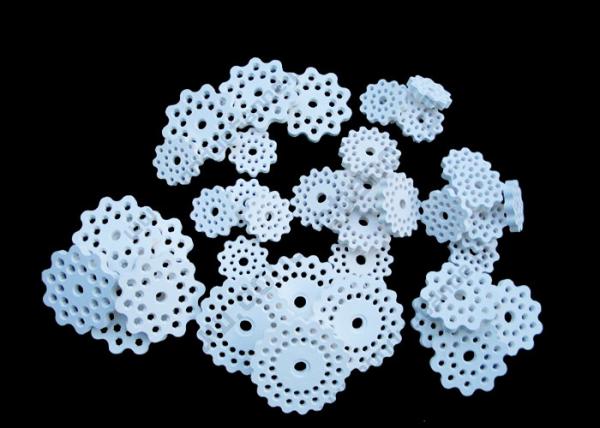

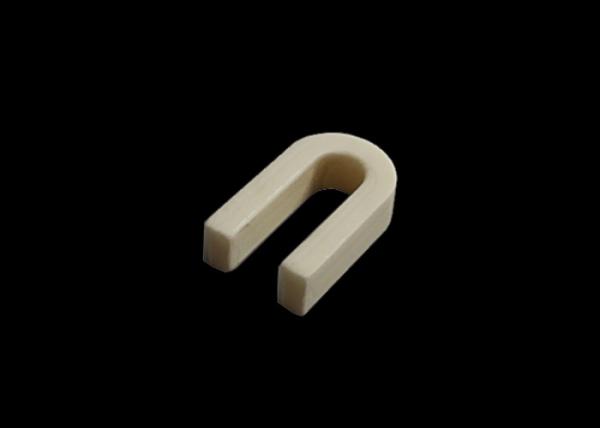

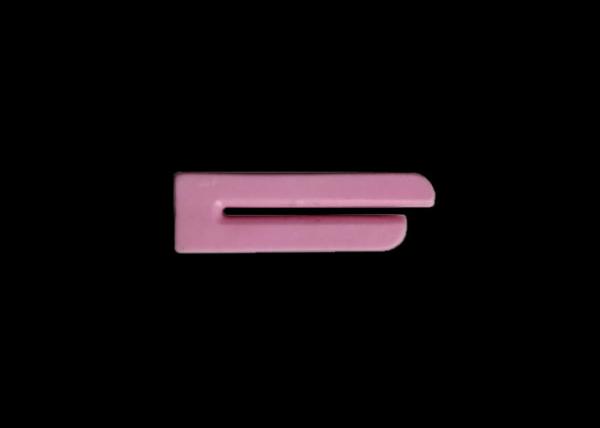

1. Name: Alumina Ceramic Parts

2. Size: as customers' drawing

3. Al2O3 Content: 95%/99% alumina

4. Color: white or ivory

5. Working Temperature: 1600-1700 degree

6. Feature: high mechanical strength, good insulation&high wear resistant, etc.

7. Application: for refractory furnace or kiln, electron vacuum decices, spaceflights, pharmaceutical engineerings or other mechanical applications

2.Feature

1) Satisfy various technical request

2) Good insulation performance and high temperature resistance

3) Stiffness texture

4) High strength

5) Used in all electric products, electric heating products and wear resistant machinery parts.

6) OEM, ODM and OBM are welcomed

We can supply the products according to customer's drawings, samples and performance requirement.

Performance For Industrial Ceramic
Item Unit Steatite ceramic 95 Al2O3 96 Al2O3 99 Al2O3
Physical Characteristics Heat resistance 0C 1100 1500 1550 1800
Bulk density g/cm3 2.7 3.6 3.6 3.9
Water absorption % 0 0 0 0

Mechanical Characteristics		 Flexural strength Mpa 145 320 340 360
Hardness vickers Gpa 5.7 12.2 13.5 15.6
Elastic modulus Gpa 120 280 320 370
Poisson’s ratio 0.21 0.22 0.23 0.23
Thermal Characteristics Linear expansion coefficient (20-5000C) 10-6/0C 7.9 7.1 7.2 8
Thermal conductivity w/(m.k) 2.5 16 24 32
Specific Heat *10-3J/(kg*K) 0.75 0.78 0.78 0.9
Electrical Characteristics Dielectric constant (1MHZ) - 6.2 9 9.4 9.9
Dielectric loss angle *10-4 18 15 5 1
Dielectric strength *106V/m 18 12 15 15
Processing technology
Process range (mm)
Outside Diameter 1---300
Inside Diameter 0.5---300
Length 0.5---1200
Accuracy of working (mm)
Perpendicularity 0.01
Concentricity 0.01
Roundness 0.005
Straightness 0.005
Parallelism 0.01
Planeness 0.005
Roughness 0.05
Fit clearance 0.005

We can supply the products according to customer's drawings, samples and performance requirement.
