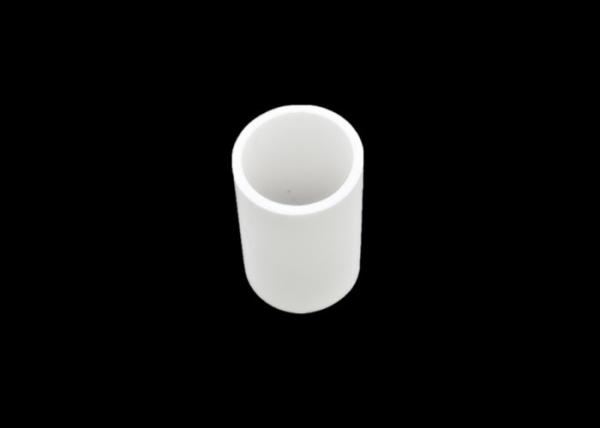

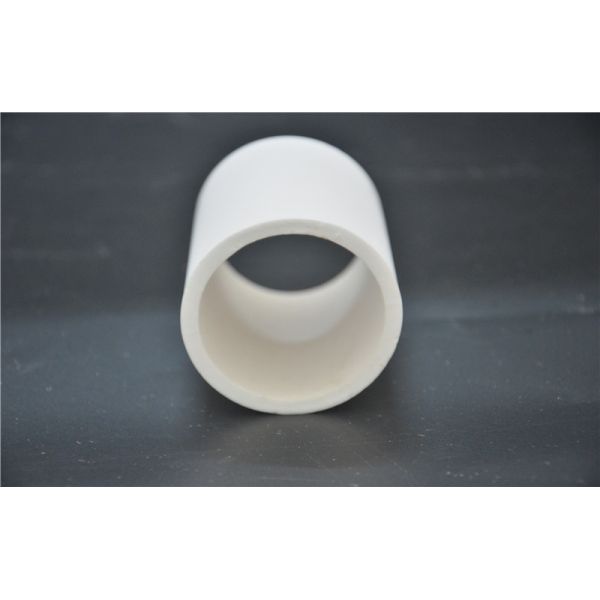

High Precision Aluminum Oxide Ceramic 95% Alumina Ceramic Sleeve
High Precision Aluminum Oxide Ceramic 95% Alumina Ceramic Sleeve
Specifications
Brand Name :
KAMTAI
Model Number :
KTALSL
Certification :
ISO 9001
Place of Origin :
CHINA
MOQ :
100PCS
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram,PAYPAL
Supply Ability :
10000PCS/ MONTH
Delivery Time :
25 DAYS AFTER PAYMENT
Packaging Details :
CARTON BOX AND PLYWOOD PALLET
Name :
High precision 95% alumina ceramic sleeve for high temperature furnace
Material :
95% Alumina ceramic
Size :
Customize
Bending Strength :
450Mpa
Type :
Ceramic Sleeve
Description

High precision 95% alumina ceramic sleeve for high temperature furnace

1. Description

Alumina ceramic is kind of structural ceramics, with insulation resistance, voltage resistance, high strength, good thermal conductivity, dielectric loss, stable electrical performance characteristics. Used in electronic ceramic substrates, ceramic electrical insulation, vacuum devices, devices porcelain, spark plugs and other products. We can make the part by hot injection pressing, dry pressing, isostatic pressing and extrusion productive technology etc.

2. Main Features

1) A variety of specifications available.

2) Satisfy various technical request

3) Lower medium spoilage

4) Good insulation performance and high temperature resistance

5) Stiffness texture

6) Used in all electric products and electric heating products
7) OEM, ODM and OBM are welcomed

3. Specification

Item
Unit
95% Alumina ceramic
99% Alumina ceramic
Bulk density
g/cm3
>3.6
3.89
Max use temperature
℃
1500
1700
Water absorbtion
%
0
0
Bending Strength
Mpa
364
450
Expansion (25-800°C)
(X10-6/°C)
7.6
8
Thermal Conductivity
(W/(m.R))
20
35
Dielectric Strength

(kv/mm)
11
12

High Precision Aluminum Oxide Ceramic 95% Alumina Ceramic Sleeve
