Low Temperature Plastic Granulator Plasit Film Recycling Granulation 11KW pe,po,pvc,eva,ps
Low Temperature Plastic Granulator Plasit Film Recycling Granulation 11KW pe,po,pvc,eva,ps
Low Temperature Plastic Granulator Plasit Film Recycling Granulation 11KW pe,po,pvc,eva,ps
Low Temperature Plastic Granulator Plasit Film Recycling Granulation 11KW pe,po,pvc,eva,ps
Low Temperature Plastic Granulator Plasit Film Recycling Granulation 11KW pe,po,pvc,eva,ps
Low Temperature Plastic Granulator Plasit Film Recycling Granulation 11KW pe,po,pvc,eva,ps
Low Temperature Plastic Granulator Plasit Film Recycling Granulation 11KW pe,po,pvc,eva,ps
Low Temperature Plastic Granulator Plasit Film Recycling Granulation 11KW pe,po,pvc,eva,ps
Low Temperature Plastic Granulator Plasit Film Recycling Granulation 11KW pe,po,pvc,eva,ps
Low Temperature Plastic Granulator Plasit Film Recycling Granulation 11KW pe,po,pvc,eva,ps
Low Temperature Plastic Granulator Plasit Film Recycling Granulation 11KW pe,po,pvc,eva,ps
Low Temperature Plastic Granulator Plasit Film Recycling Granulation 11KW pe,po,pvc,eva,ps
Low Temperature Plastic Granulator Plasit Film Recycling Granulation 11KW pe,po,pvc,eva,ps
Low Temperature Plastic Granulator Plasit Film Recycling Granulation 11KW pe,po,pvc,eva,ps
Low Temperature Plastic Granulator Plasit Film Recycling Granulation 11KW pe,po,pvc,eva,ps
Low Temperature Plastic Granulator Plasit Film Recycling Granulation 11KW pe,po,pvc,eva,ps
Specifications
Brand Name :
JX
Model Number :
JX-DW75
Place of Origin :
China
MOQ :
1 set
Price :
USD+7200+1set
Delivery Time :
7 work days
Packaging Details :
Film packaging
Output :
60kg per hour
Voltage :
AC380V 50HZ TN-S
Type :
Recycling Granulator, Granulating Production Line, pellet plastic raw material cutter /pelletizer, PO/PE film agglomerator
Keywords :
Plastic Granulating Machine,plastic granules cutter machine
Power :
14KW
Material :
PE, PO, CPE, PVC, PLA,PS
Screw design :
single helix screw
Description

Product Description

Low temperature plastic granulator PE film recycling granulation

Advantages:

1,The equipment is suitable for processing the leftovers,rolls, bulk materials and other wastes of various materials such as PE,PS,PO,PVC, EVA,etc. It can be used alone or synchronously with film blowing unit and film casting unit.

2,The granulation process is not heated and without water.The particle size can be controlled to be the same as that of raw materials,and the utilization rate is extremely high.

3,The equipment can be used immediately after startup without preheating.The operation is simple,and it only needs to put the raw material into the feeding port.

Application:

This machine has good stability, high efficiency and applicability.It is specially used for recycling and granulation of leftovers and waste materials of PE,PO,PVC,EVA,PS,PLA non-woven fabric and other plastics.

Structure:

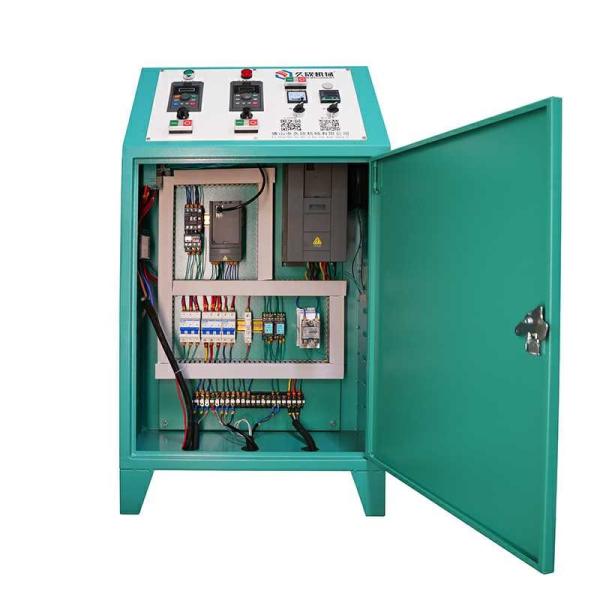

The components of the equipment are: electrical parts,transmission parts,feeding parts,extrusion parts,pelleting parts and recycling parts.

Features:

1.The machine does not need preheating during operation. It can be used immediately after startup.The operation is simple,it only needs to lead the raw material into the feed inlet.

2,The machine is space saving and low energy consumption.It soften the materials by simply rotating a single screw, extruding the die head,and cut out the same particles as the raw material.

3.The machine does not heat, neither change the molecular structure of the material during production.The usage rate is very high,and the output can reach to120-150Kg/h.

4.The machine is smoke free and dust-free, with extremely low noise and environmental protection.

Model JX-DW75
Total Power 14KW
Output ≈60kg/h
Power Supply AC380V 50Hz TN-S
Dimension 2200x1600x1100
Weight ≈760kg
Screw 75
Reducer 146
Pelletizing Motor 1.5W
Extrusion Motor 11KW
Inverter 11W/1.5KW

Low Temperature Plastic Granulator Plasit Film Recycling Granulation 11KW pe,po,pvc,eva,psLow Temperature Plastic Granulator Plasit Film Recycling Granulation 11KW pe,po,pvc,eva,psLow Temperature Plastic Granulator Plasit Film Recycling Granulation 11KW pe,po,pvc,eva,psLow Temperature Plastic Granulator Plasit Film Recycling Granulation 11KW pe,po,pvc,eva,ps​
