UHF Female Connector Nickel-plated Brass with PTFE Insulator for DC-300MHz Frequency Range
UHF Female Connector Nickel-plated Brass with PTFE Insulator for DC-300MHz Frequency Range
UHF Female Connector Nickel-plated Brass with PTFE Insulator for DC-300MHz Frequency Range
UHF Female Connector Nickel-plated Brass with PTFE Insulator for DC-300MHz Frequency Range
Specifications
Brand Name :
ZSX
Model Number :
UHF-KFD
Certification :
ISO9001
Place of Origin :
China
MOQ :
50 pcs
Price :
$0.98-$1.46 (Depending on the quantity)
Payment Terms :
T/T,D/P,Western Union
Supply Ability :
1000000Pcs/Year
Delivery Time :
5-8 Days
Packaging Details :
Carton packaging
Name :
RF Connector UHF-KFD
Gender :
Female
Boday Material :
Nickel-plated brass
Insulator material :
PTFE
Working temperature :
-45℃~+125℃
VSWR :
≤ 1.25
Description


UHF Female Connector Solder Attachment 4 Hole Flange Mount Solder Cup Terminal

UHF series of RF connectors feature a brass main body with nickel plating on the surface, and the inner conductors are gold-plated or silver-plated. They are equipped with high-temperature resistant insulating media, ensuring a robust structure and stable electrical conductivity. The product adopts a threaded connection design, which ensures reliable connection and strong shock resistance. It operates at frequencies ranging from DC to 300MHz and is suitable for medium and low-frequency RF transmission scenarios. It features excellent mechanical durability and environmental adaptability. It is widely used in amateur radio stations, vehicle-mounted communication, broadcasting equipment, industrial wireless systems and various low-frequency radio frequency signal transmission, and is a cost-effective connection solution in the fields of communication, industrial control, security, etc.

Product display
Product Performance Details
Product model UHF-KFD Dielectric constant ≥5000MΩ
Characteristic impedance 50 ohm Body material Gold-plated brass
Frequency range DC-1GHz Central conductor Gold-plated brass
Voltage standing wave ratio ≤1.25 Insulator material PTFE
Medium pressure resistance ≥2500V RMS ,50hz, at sea level Durability ≥500 Cycles
Contact resistance Center contact:≤1.5mΩ Outer contact:≤1mΩ Temperature range -45℃~+125℃

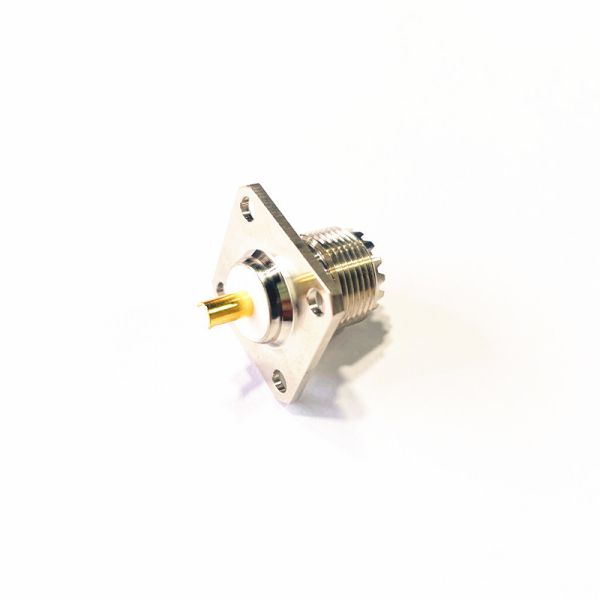

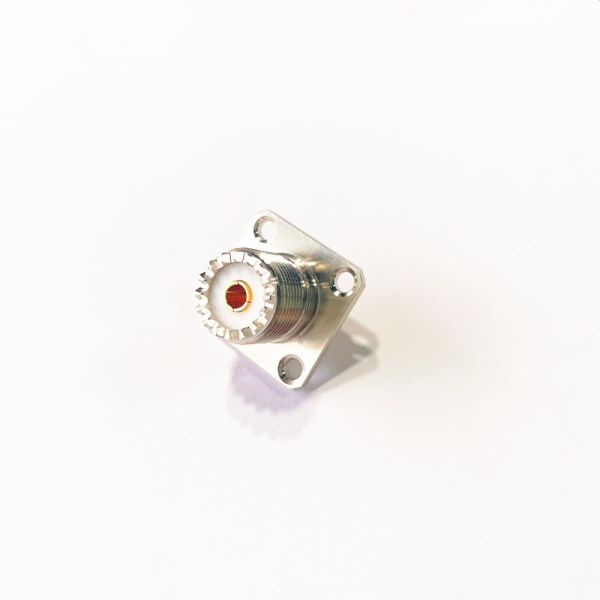

Physical product display
UHF Female Connector Nickel-plated Brass with PTFE Insulator for DC-300MHz Frequency Range UHF Female Connector Nickel-plated Brass with PTFE Insulator for DC-300MHz Frequency Range

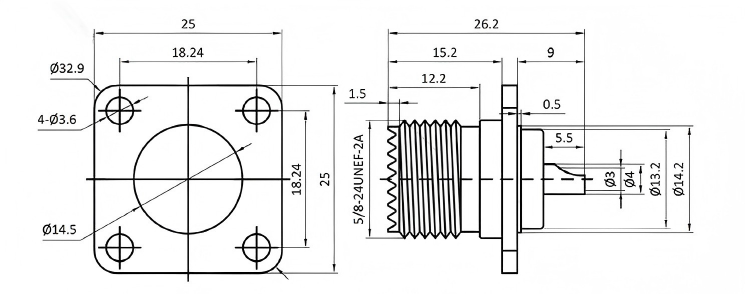

Product external dimensions
UHF Female Connector Nickel-plated Brass with PTFE Insulator for DC-300MHz Frequency Range
Related product recommendations
UHF Female Connector Nickel-plated Brass with PTFE Insulator for DC-300MHz Frequency Range UHF Female Connector Nickel-plated Brass with PTFE Insulator for DC-300MHz Frequency Range
Display of Strength
Production Plant Area

Machining production workshop

UHF Female Connector Nickel-plated Brass with PTFE Insulator for DC-300MHz Frequency Range UHF Female Connector Nickel-plated Brass with PTFE Insulator for DC-300MHz Frequency Range

Precision Assembly Production Workshop

UHF Female Connector Nickel-plated Brass with PTFE Insulator for DC-300MHz Frequency Range UHF Female Connector Nickel-plated Brass with PTFE Insulator for DC-300MHz Frequency Range

Glass-to-metal sealed production workshop

UHF Female Connector Nickel-plated Brass with PTFE Insulator for DC-300MHz Frequency Range UHF Female Connector Nickel-plated Brass with PTFE Insulator for DC-300MHz Frequency Range
Obtained Certification Certificate
UHF Female Connector Nickel-plated Brass with PTFE Insulator for DC-300MHz Frequency Range UHF Female Connector Nickel-plated Brass with PTFE Insulator for DC-300MHz Frequency Range

Customer visit
UHF Female Connector Nickel-plated Brass with PTFE Insulator for DC-300MHz Frequency Range UHF Female Connector Nickel-plated Brass with PTFE Insulator for DC-300MHz Frequency Range
Product packaging
UHF Female Connector Nickel-plated Brass with PTFE Insulator for DC-300MHz Frequency Range UHF Female Connector Nickel-plated Brass with PTFE Insulator for DC-300MHz Frequency Range

Packaging and Shipping
UHF Female Connector Nickel-plated Brass with PTFE Insulator for DC-300MHz Frequency Range
  • Standard export carton
  • As per customized specifications such as logo or others According to customers' requirements
  • Delivery time:Within 24 hours for stocks, 3-4 weeks for mass production orders. (based on different quantities,ODM, etc.)

FAQ

Q: Are you trading company or manufacturer?

A: Our company is a comprehensive manufacturer with 17 years of r&d, manufacturing and sales of military and commercial RF microwave transmission components.

Q:What are the main products of your company?

A:Main products: RF coaxial connectors and adapters, RF cable assemblies, miniature rectangular electrical connectors and cable assemblies, coaxial waveguide converters and cable assemblies, glass insulator sealed connectors and other microwave products.

Q: Does your company accept customized products?

A: We accept ODM.

Q: Does your company provide free samples?

A: We support free samples with freight paid on delivery.

Q: What is the minimum order quantity of your company's products?

A: 200 pieces. The price is more expensive under 200 piece .

Q: Which logistics company does your company ship through?

A:Our company cooperates with international logistics companies DHL.UPS,FedexTX,TNT all year round to ensure our customers receive their goods quickly with the lowest shipping cost. There are also air and sea logistics.

Q: How long does it usually take to receive the goods?

A: Generally, 3-8 working days for international express, 5-8 working days for air freight.

Q:What payment methods does your company accept?

A: We accept L/C, T/T, Western Union, Trade Assurance (credit card &T/T)

Q: How long is your warranty?

A: The warranty period is three months.
