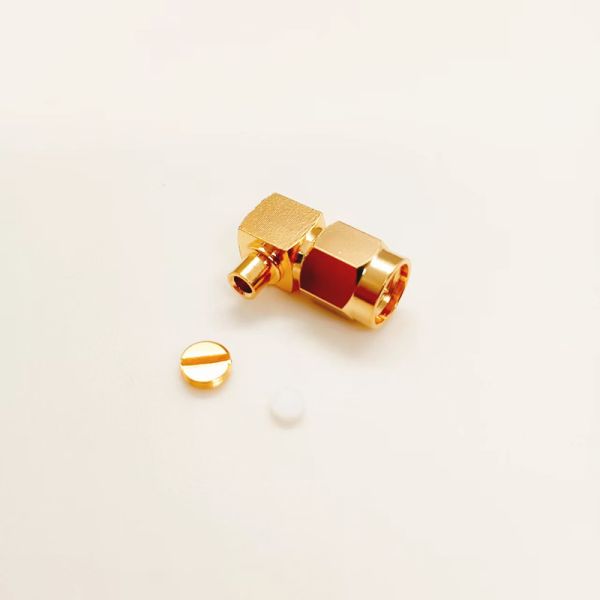

Gold Plated Brass SMA RF Connector with DC-6GHz Frequency Range and Right Angle Welded Design for RG405/086 Cable
Gold Plated Brass SMA RF Connector with DC-6GHz Frequency Range and Right Angle Welded Design for RG405/086 Cable
Gold Plated Brass SMA RF Connector with DC-6GHz Frequency Range and Right Angle Welded Design for RG405/086 Cable
Gold Plated Brass SMA RF Connector with DC-6GHz Frequency Range and Right Angle Welded Design for RG405/086 Cable
Specifications
Brand Name :
ZSX
Model Number :
SMA-JWB2
Certification :
ISO9001
Place of Origin :
China
MOQ :
10 pcs
Price :
$0.95 --$1.13 (Depending on the quantity )
Payment Terms :
T/T,D/P,Western Union
Supply Ability :
1000000Pcs/Year
Delivery Time :
5-8 Days
Packaging Details :
Carton packaging
Name :
RF Connector SMA-JWB2
Product structure :
R/A
Gender :
Male
Body material :
Gold plated brass
Frequency range :
DC-6GHZ
Installation method :
Welding
Cable type :
086/RG405
Description
RF Connector SMA-JWB2 SMA Male R/A Welded Connector For RG405/086 Cable

Radio Frequency Connector (RF connector for short) is a separable electronic component that is installed on cables or equipment for the transmission of radio frequency signals. It is often used in electromagnetic wave signal transmission scenarios ranging from 3kHz to 300GHz. It plays a key role in multiple fields such as communication and aerospace. SMA series of RF coaxial connectors feature small size, wide frequency band, superior mechanical performance and high reliability. They are one of the most widely used RF coaxial connectors. Ultra-small connectors like MMCX and SMP are constantly evolving, capable of meeting the blind insertion requirements of high-density devices while reducing the space occupied by the equipment, which is in line with the development direction of miniaturization of electronic devices.

Product Performance Details

Product model SMA-JWB2 Product structure Right Angel
Characteristic impedance 50 ohm Durability ≥500cycles
Frequency range DC-6GHz Body Gold plated brass
Contact resistance

Center Contact ≤3mΩ

 Contact resistance Outer Contact ≤2.5mΩ
Voltage standing wave ratio ≤1.3 Insulator PTFE
Dielectric withstand voltage ≥1000V RMS,50hz,at sea level Central conductor Gold plated brass
Working voltage ≤250V RMS,50hz,at sea level Connection sleeve Gold plated brass
Dielectric resistance ≥ 5000MΩ Temperature range -45℃~+125℃
Installation method Welding Cable type 086/RG405

Product Show

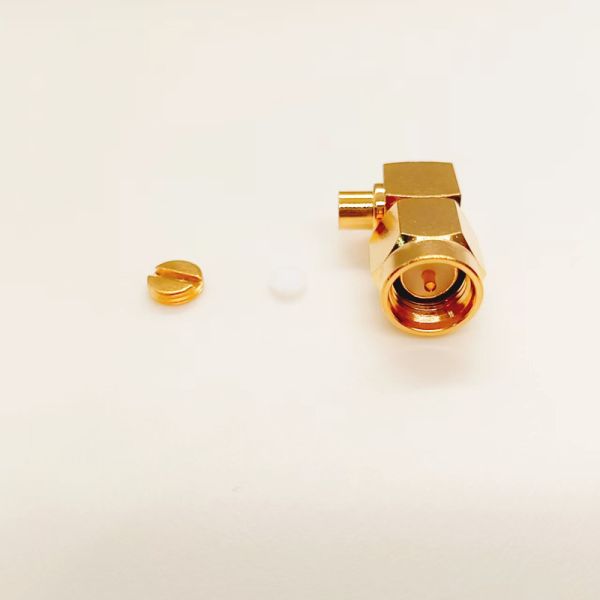

Gold Plated Brass SMA RF Connector with DC-6GHz Frequency Range and Right Angle Welded Design for RG405/086 Cable Gold Plated Brass SMA RF Connector with DC-6GHz Frequency Range and Right Angle Welded Design for RG405/086 Cable

External dimensions of the product

Gold Plated Brass SMA RF Connector with DC-6GHz Frequency Range and Right Angle Welded Design for RG405/086 Cable

Related Product Recommendation

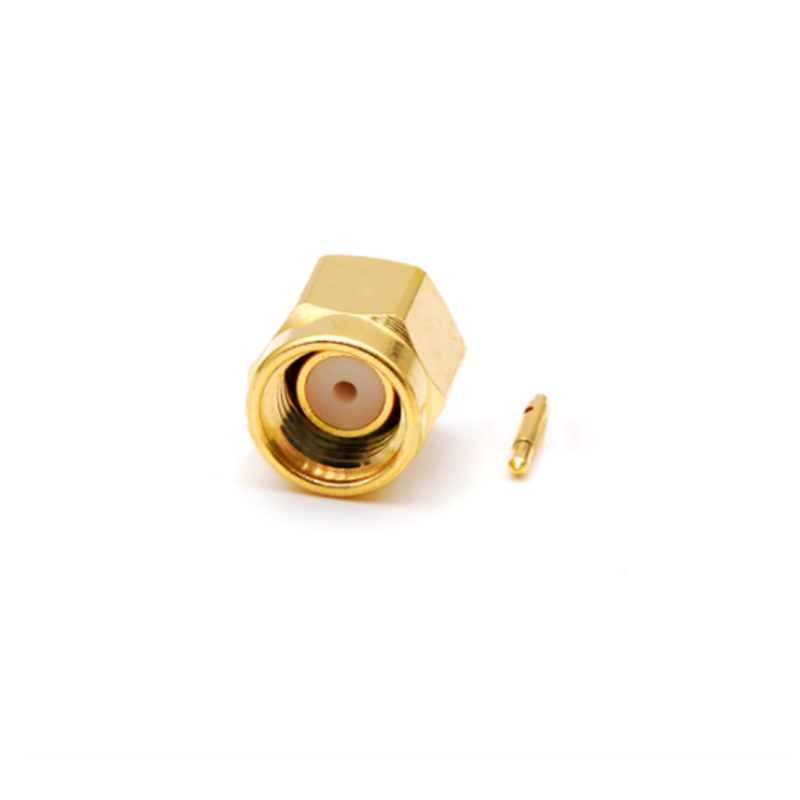

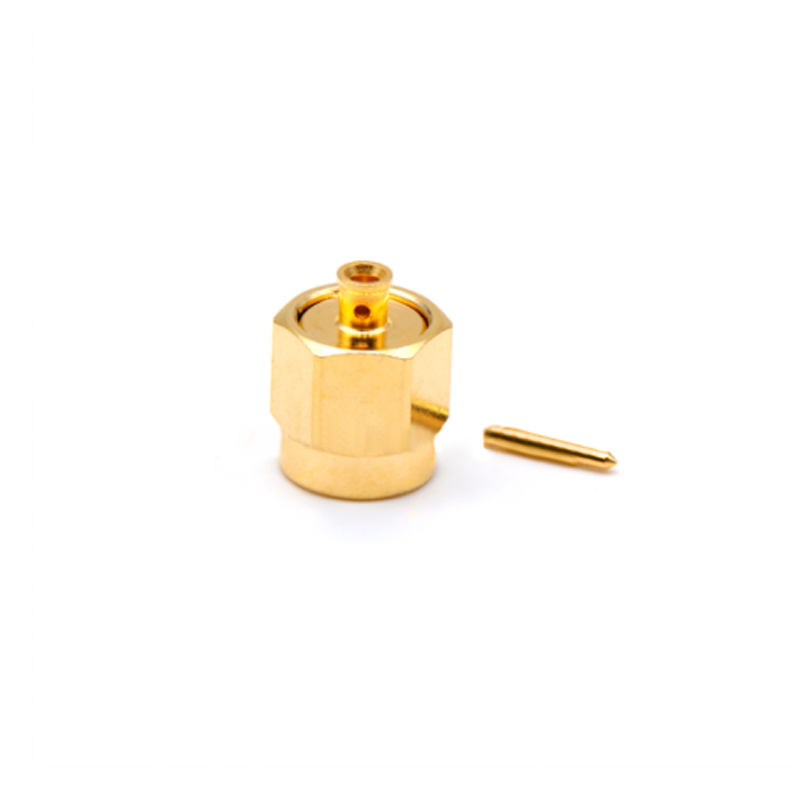

Gold Plated Brass SMA RF Connector with DC-6GHz Frequency Range and Right Angle Welded Design for RG405/086 Cable Gold Plated Brass SMA RF Connector with DC-6GHz Frequency Range and Right Angle Welded Design for RG405/086 Cable

Production Plant Area

Machining production workshop

Gold Plated Brass SMA RF Connector with DC-6GHz Frequency Range and Right Angle Welded Design for RG405/086 Cable Gold Plated Brass SMA RF Connector with DC-6GHz Frequency Range and Right Angle Welded Design for RG405/086 Cable

Precision Assembly Production Workshop

Gold Plated Brass SMA RF Connector with DC-6GHz Frequency Range and Right Angle Welded Design for RG405/086 Cable Gold Plated Brass SMA RF Connector with DC-6GHz Frequency Range and Right Angle Welded Design for RG405/086 Cable

Obtained Certification Certificate

Gold Plated Brass SMA RF Connector with DC-6GHz Frequency Range and Right Angle Welded Design for RG405/086 Cable Gold Plated Brass SMA RF Connector with DC-6GHz Frequency Range and Right Angle Welded Design for RG405/086 Cable

Customer visit

Gold Plated Brass SMA RF Connector with DC-6GHz Frequency Range and Right Angle Welded Design for RG405/086 Cable Gold Plated Brass SMA RF Connector with DC-6GHz Frequency Range and Right Angle Welded Design for RG405/086 Cable

Product Packaging

Gold Plated Brass SMA RF Connector with DC-6GHz Frequency Range and Right Angle Welded Design for RG405/086 Cable Gold Plated Brass SMA RF Connector with DC-6GHz Frequency Range and Right Angle Welded Design for RG405/086 Cable

Packaging And Shipping

Gold Plated Brass SMA RF Connector with DC-6GHz Frequency Range and Right Angle Welded Design for RG405/086 Cable
  • Standard export carton
  • As per customized specifications such as logo or others
  • According to customers' requirements
  • Delivery time:Within 24 hours for stocks, 3-4 weeks for mass production orders(based on different quantities,ODM, etc.)

FAQ

Q: Are you trading company or manufacturer?

A: Our company is a comprehensive manufacturer with 17 years of r&d, manufacturing and sales of aerospace and commercial RF microwave transmission components.

Q:What are the main products of your company?

A:Main products: RF coaxial connectors and adapters, RF cable assemblies, miniature rectangular electrical connectors and cable assemblies, coaxial waveguide converters and cable assemblies, glass insulator sealed connectors and other microwave products.

Q: Does your company accept customized products?

A: We accept ODM.

Q: Does your company provide free samples?

A: We support free samples with freight paid on delivery.

Q: What is the minimum order quantity of your company's products?

A: 200 pieces. The price is more expensive under 200 piece .

Q: Which logistics company does your company ship through?

A:Our company cooperates with international logistics companies DHL.UPS,FedexTX,TNT all year round to ensure our customers receive their goods quickly with the lowest shipping cost. There are also air and sea logistics.

Q: How long does it usually take to receive the goods?

A: Generally, 3-8 working days for international express, 5-8 working days for air freight.

Q:What payment methods does your company accept?

A: We accept L/C, T/T, Western Union, Trade Assurance (credit card &T/T)

Q: How long is your warranty?

A: The warranty period is three months.
