QMA Male Straight Connector Crimping Type For 50-7/LMR400 Coaxial Cable
QMA Male Straight Connector Crimping Type For 50-7/LMR400 Coaxial Cable
QMA Male Straight Connector Crimping Type For 50-7/LMR400 Coaxial Cable
QMA Male Straight Connector Crimping Type For 50-7/LMR400 Coaxial Cable
QMA Male Straight Connector Crimping Type For 50-7/LMR400 Coaxial Cable
QMA Male Straight Connector Crimping Type For 50-7/LMR400 Coaxial Cable
Specifications
Brand Name :
ZSX
Model Number :
QMA-C-J-7
Certification :
ISO9001
Place of Origin :
China
MOQ :
20 pcs
Price :
$1.38--$1.98(Depending on the quantity )
Payment Terms :
T/T,D/P,Western Union
Supply Ability :
1000000Pcs/Year
Delivery Time :
5-8 Days
Packaging Details :
Carton packaging
Name :
QMA Male Connector QMA-C-J-7
Gender :
Male
Boday Material :
Nickel plated brass
Insulator material :
PTFE
Working temperature :
-45℃~+125℃
VSWR :
≤ 1.25
Description

QMA Male Straight Connector Crimping Type For 50-7/LMR400 Coaxial Cable

QMA-C-J-7 is a 50Ω quick-lock RF connector, featuring a nickel-plated brass housing and beryllium copper gold-plated center contacts. It covers frequencies from DC to 6GHz, with VSWR≤1.15 and operating temperatures ranging from -40 ° C to +125 ° C. It has excellent vibration resistance and sealing performance. It is mainly used in communication base stations, antennas, radio frequency modules, test instruments and mobile communication equipment.

Product display
Product Performance Details
Product model QMA-C-J-7 Dielectric constant ≥5000MΩ
Characteristic impedance 50 ohm Body material Nickel-plated brass
Frequency range DC-6GHz Central conductor Gold-plated brass
Voltage standing wave ratio ≤1.25 Insulator material PTFE
Medium pressure resistance ≥1000V RMS ,50hz, at sea level Durability ≥500 Cycles
Contact resistance Center contact:≤3mΩ Outer contact:≤2.5mΩ Temperature range -45℃~+125℃

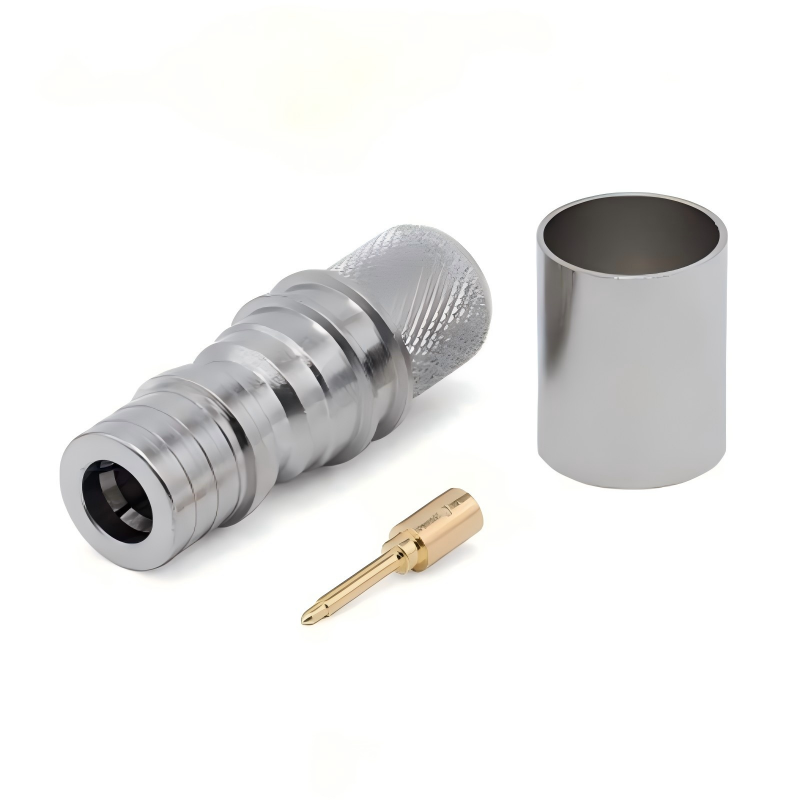

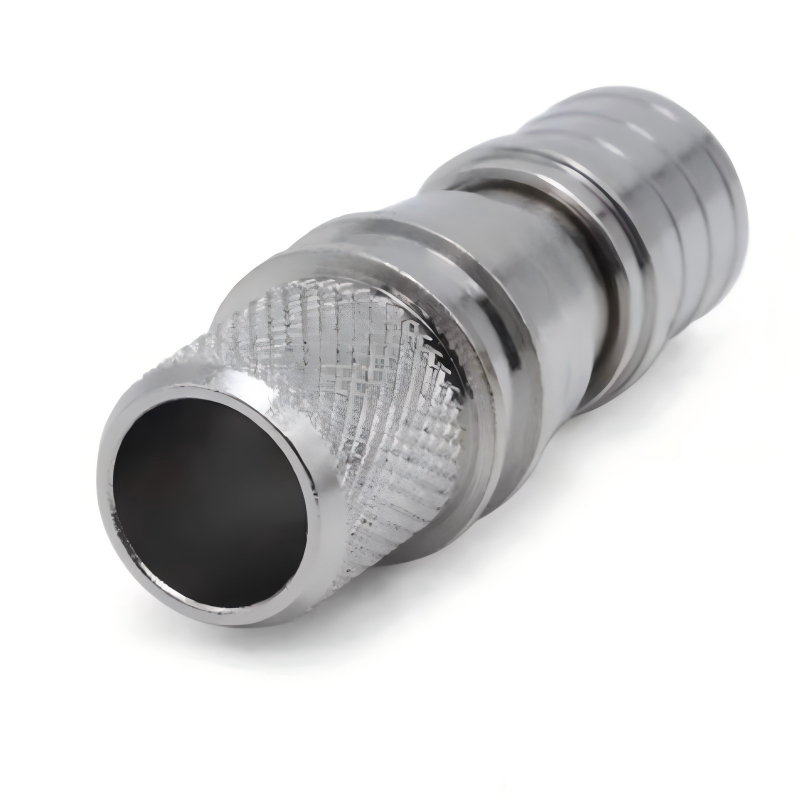

Physical product display
QMA Male Straight Connector Crimping Type For 50-7/LMR400 Coaxial Cable QMA Male Straight Connector Crimping Type For 50-7/LMR400 Coaxial Cable

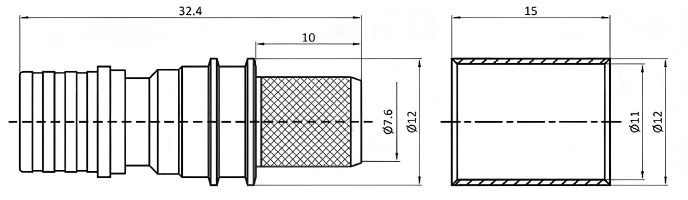

Product external dimensions
QMA Male Straight Connector Crimping Type For 50-7/LMR400 Coaxial Cable

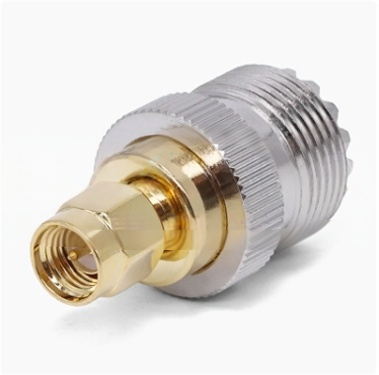

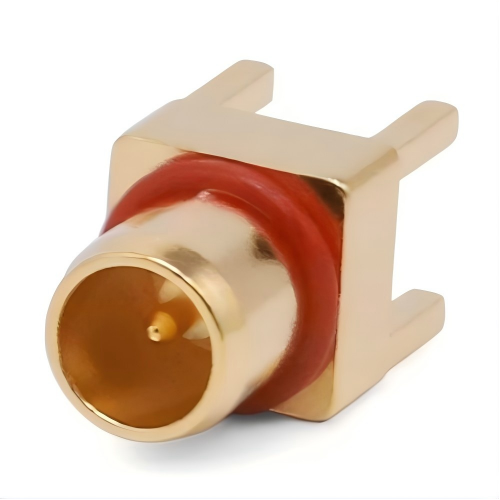

Related product recommendations
QMA Male Straight Connector Crimping Type For 50-7/LMR400 Coaxial Cable QMA Male Straight Connector Crimping Type For 50-7/LMR400 Coaxial Cable
Display of Strength
Office areaProduction Plant Area
Machining production workshop
QMA Male Straight Connector Crimping Type For 50-7/LMR400 Coaxial Cable QMA Male Straight Connector Crimping Type For 50-7/LMR400 Coaxial Cable
Precision Assembly Production Workshop
QMA Male Straight Connector Crimping Type For 50-7/LMR400 Coaxial Cable QMA Male Straight Connector Crimping Type For 50-7/LMR400 Coaxial Cable
Glass-to-metal sealed production workshop
QMA Male Straight Connector Crimping Type For 50-7/LMR400 Coaxial Cable QMA Male Straight Connector Crimping Type For 50-7/LMR400 Coaxial Cable
Obtained Certification Certificate
QMA Male Straight Connector Crimping Type For 50-7/LMR400 Coaxial Cable QMA Male Straight Connector Crimping Type For 50-7/LMR400 Coaxial Cable
Customer visit
QMA Male Straight Connector Crimping Type For 50-7/LMR400 Coaxial Cable QMA Male Straight Connector Crimping Type For 50-7/LMR400 Coaxial Cable
Product packaging
QMA Male Straight Connector Crimping Type For 50-7/LMR400 Coaxial Cable QMA Male Straight Connector Crimping Type For 50-7/LMR400 Coaxial Cable
Packaging and Shipping

QMA Male Straight Connector Crimping Type For 50-7/LMR400 Coaxial Cable
  • Standard export carton
  • As per customized specifications such as logo or others According to customers' requirements
  • Delivery time:Within 24 hours for stocks, 3-4 weeks for mass production orders. (based on different quantities,ODM, etc.)
FAQ

Q: Are you trading company or manufacturer?

A: Our company is a comprehensive manufacturer with 17 years of r&d, manufacturing and sales of military and commercial RF microwave transmission components.

Q:What are the main products of your company?

A:Main products: RF coaxial connectors and adapters, RF cable assemblies, miniature rectangular electrical connectors and cable assemblies, coaxial waveguide converters and cable assemblies, glass insulator sealed connectors and other microwave products.

Q: Does your company accept customized products?

A: We accept ODM.

Q: Does your company provide free samples?

A: We support free samples with freight paid on delivery.

Q: What is the minimum order quantity of your company's products?

A: 200 pieces. The price is more expensive under 200 piece .

Q: Which logistics company does your company ship through?

A:Our company cooperates with international logistics companies DHL.UPS,FedexTX,TNT all year round to ensure our customers receive their goods quickly with the lowest shipping cost. There are also air and sea logistics.

Q: How long does it usually take to receive the goods?

A: Generally, 3-8 working days for international express, 5-8 working days for air freight.

Q:What payment methods does your company accept?

A: We accept L/C, T/T, Western Union, Trade Assurance (credit card &T/T)

Q: How long is your warranty?

A: The warranty period is three months.
