RF Connector QMA Female Bulkhead Connector For Rg316/Rg174 Cable
RF Connector QMA Female Bulkhead Connector For Rg316/Rg174 Cable
RF Connector QMA Female Bulkhead Connector For Rg316/Rg174 Cable
RF Connector QMA Female Bulkhead Connector For Rg316/Rg174 Cable
RF Connector QMA Female Bulkhead Connector For Rg316/Rg174 Cable
RF Connector QMA Female Bulkhead Connector For Rg316/Rg174 Cable
RF Connector QMA Female Bulkhead Connector For Rg316/Rg174 Cable
RF Connector QMA Female Bulkhead Connector For Rg316/Rg174 Cable
Specifications
Brand Name :
ZSX
Model Number :
QMA-C-KY-1.5
Certification :
ISO9001
Place of Origin :
China
MOQ :
20 pcs
Price :
$1.38--$1.98(Depending on the quantity )
Payment Terms :
T/T,D/P,Western Union
Supply Ability :
1000000Pcs/Year
Delivery Time :
5-8 Days
Packaging Details :
Carton packaging
Name :
QMA Male Connector QMA-C-KY-1.5
Gender :
Female
Boday Material :
Nickel plated brass
Insulator material :
PTFE
Working temperature :
-45℃~+125℃
VSWR :
≤ 1.25
Description

RF Connector QMA Female Bulkhead Connector For Rg316/Rg174 Cable

QMA-C-KY-1.5 is a 50Ω QMA female straight RF connector for RG316/RG174/1.5mm cables. It features brass with nickel-plated body and gold-plated beryllium copper contacts, operating up to 6GHz with low VSWR, excellent anti-vibration and stability. Widely used in antennas, telecom base stations, wireless communication systems, RF modules and test equipment.

Product display
Product Performance Details
Product model QMA-C-KY-1.5 Dielectric constant ≥5000MΩ
Characteristic impedance 50 ohm Body material Nickel-plated brass
Frequency range DC-6GHz Central conductor Gold-plated brass
Voltage standing wave ratio ≤1.25 Insulator material PTFE
Medium pressure resistance ≥1000V RMS ,50hz, at sea level Durability ≥500 Cycles
Contact resistance Center contact:≤3mΩ Outer contact:≤2.5mΩ Temperature range -45℃~+125℃

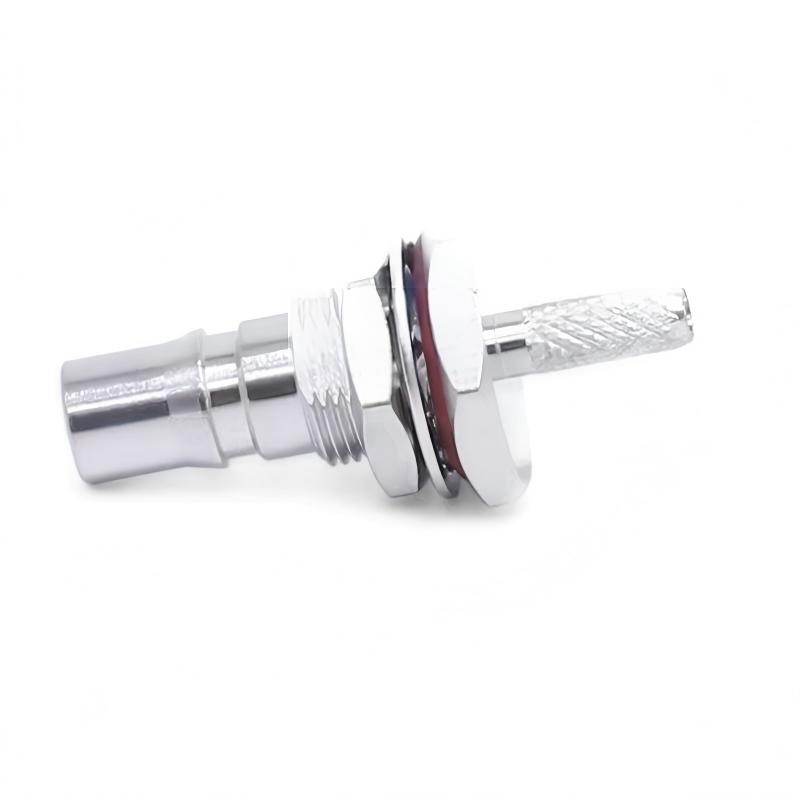

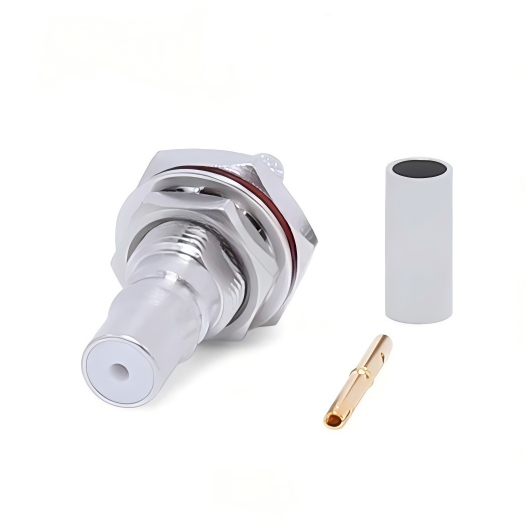

Physical product display
RF Connector QMA Female Bulkhead Connector For Rg316/Rg174 Cable RF Connector QMA Female Bulkhead Connector For Rg316/Rg174 Cable

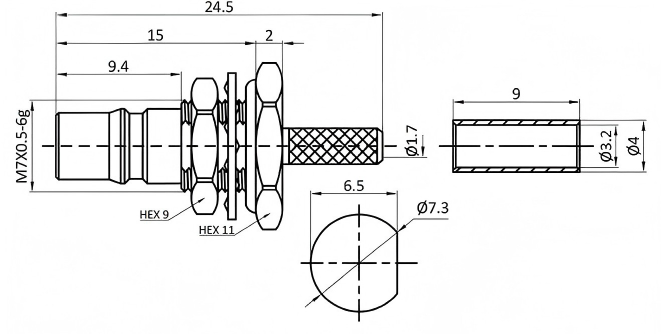

Product external dimensions
RF Connector QMA Female Bulkhead Connector For Rg316/Rg174 Cable
Related product recommendations
RF Connector QMA Female Bulkhead Connector For Rg316/Rg174 Cable RF Connector QMA Female Bulkhead Connector For Rg316/Rg174 Cable
Display of Strength
Office areaProduction Plant Area
Machining production workshop
RF Connector QMA Female Bulkhead Connector For Rg316/Rg174 Cable RF Connector QMA Female Bulkhead Connector For Rg316/Rg174 Cable
Precision Assembly Production Workshop
RF Connector QMA Female Bulkhead Connector For Rg316/Rg174 Cable RF Connector QMA Female Bulkhead Connector For Rg316/Rg174 Cable
Glass-to-metal sealed production workshop
RF Connector QMA Female Bulkhead Connector For Rg316/Rg174 Cable RF Connector QMA Female Bulkhead Connector For Rg316/Rg174 Cable
Obtained Certification Certificate
RF Connector QMA Female Bulkhead Connector For Rg316/Rg174 Cable RF Connector QMA Female Bulkhead Connector For Rg316/Rg174 Cable
Customer visit
RF Connector QMA Female Bulkhead Connector For Rg316/Rg174 Cable RF Connector QMA Female Bulkhead Connector For Rg316/Rg174 Cable
Product packaging
RF Connector QMA Female Bulkhead Connector For Rg316/Rg174 Cable RF Connector QMA Female Bulkhead Connector For Rg316/Rg174 Cable
Packaging and Shipping

RF Connector QMA Female Bulkhead Connector For Rg316/Rg174 Cable
  • Standard export carton
  • As per customized specifications such as logo or others According to customers' requirements
  • Delivery time:Within 24 hours for stocks, 3-4 weeks for mass production orders. (based on different quantities,ODM, etc.)
FAQ

Q: Are you trading company or manufacturer?

A: Our company is a comprehensive manufacturer with 17 years of r&d, manufacturing and sales of military and commercial RF microwave transmission components.

Q:What are the main products of your company?

A:Main products: RF coaxial connectors and adapters, RF cable assemblies, miniature rectangular electrical connectors and cable assemblies, coaxial waveguide converters and cable assemblies, glass insulator sealed connectors and other microwave products.

Q: Does your company accept customized products?

A: We accept ODM.

Q: Does your company provide free samples?

A: We support free samples with freight paid on delivery.

Q: What is the minimum order quantity of your company's products?

A: 200 pieces. The price is more expensive under 200 piece .

Q: Which logistics company does your company ship through?

A:Our company cooperates with international logistics companies DHL.UPS,FedexTX,TNT all year round to ensure our customers receive their goods quickly with the lowest shipping cost. There are also air and sea logistics.

Q: How long does it usually take to receive the goods?

A: Generally, 3-8 working days for international express, 5-8 working days for air freight.

Q:What payment methods does your company accept?

A: We accept L/C, T/T, Western Union, Trade Assurance (credit card &T/T)

Q: How long is your warranty?

A: The warranty period is three months.
