7/16-J-1/2S RF Connector with 50Ω Impedance Nickel-Plated Brass and PTFE Insulator for Stable Signal Transmission
7/16-J-1/2S RF Connector with 50Ω Impedance Nickel-Plated Brass and PTFE Insulator for Stable Signal Transmission
7/16-J-1/2S RF Connector with 50Ω Impedance Nickel-Plated Brass and PTFE Insulator for Stable Signal Transmission
7/16-J-1/2S RF Connector with 50Ω Impedance Nickel-Plated Brass and PTFE Insulator for Stable Signal Transmission
7/16-J-1/2S RF Connector with 50Ω Impedance Nickel-Plated Brass and PTFE Insulator for Stable Signal Transmission
7/16-J-1/2S RF Connector with 50Ω Impedance Nickel-Plated Brass and PTFE Insulator for Stable Signal Transmission
Specifications
Brand Name :
ZSX
Model Number :
7/16-J-1/2S
Certification :
ISO9001
Place of Origin :
China
MOQ :
20 pcs
Price :
$2.98 --$3.96(Depending on the quantity )
Payment Terms :
T/T,D/P,Western Union
Supply Ability :
1000000Pcs/Year
Delivery Time :
5-8 Days
Packaging Details :
Carton packaging
Name :
RF Connector Din -7/16 Connector
Gender :
Male
Boday Material :
Nickel plated brass
Insulator material :
PTFE
Working temperature :
-45℃~+125℃
VSWR :
≤ 1.13
Description

L29/DIN Male Clamp Type Connector For 1/2" Super Flexible Cable 7/16-J-1/2S Connector

7/16 Male Connector for 1/2" Super Flexible Cable, 50Ω impedance, low VSWR, stable signal transmission and reliable connection. It features easy installation, good waterproof and anti-corrosion performance, widely used in telecom base stations, antennas and RF jumper cable assemblies.

Product display
Product Performance Details
Product model 7/16-J-1/2S Dielectric constant ≥10000MΩ
Characteristic impedance 50 ohm Body material Nickel-plated brass
Frequency range DC-7.5GHz Central conductor Gold-plated brass
Voltage standing wave ratio ≤1.13 Insulator material PTFE
Medium pressure resistance ≥2500V RMS ,50hz, at sea level Durability ≥500 Cycles
Contact resistance

Center contact:≤0.4mΩ

Outer contact: ≤0.2mΩ

 Temperature range -45℃~+125℃

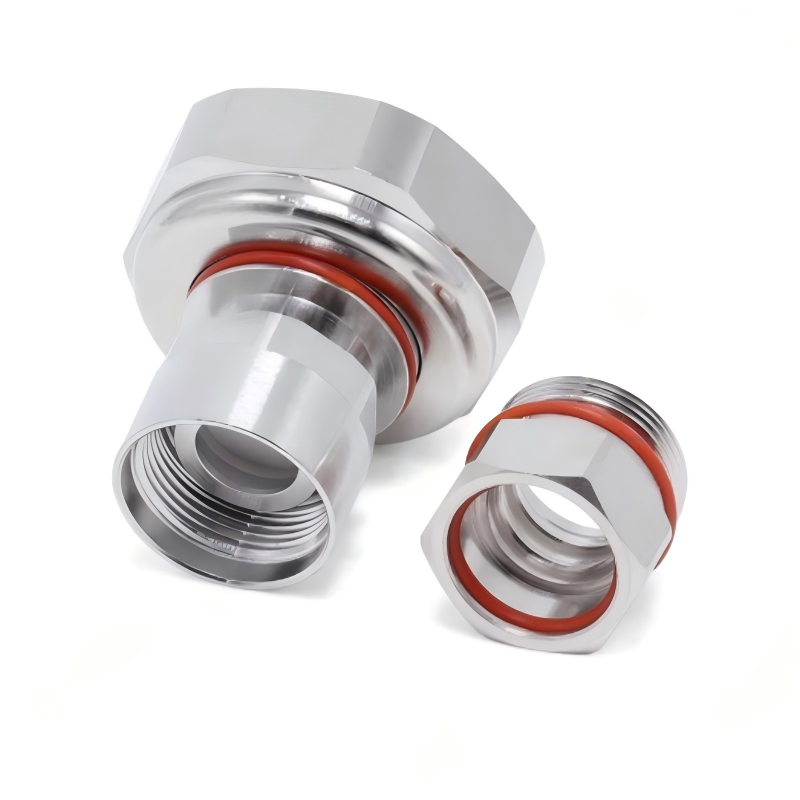

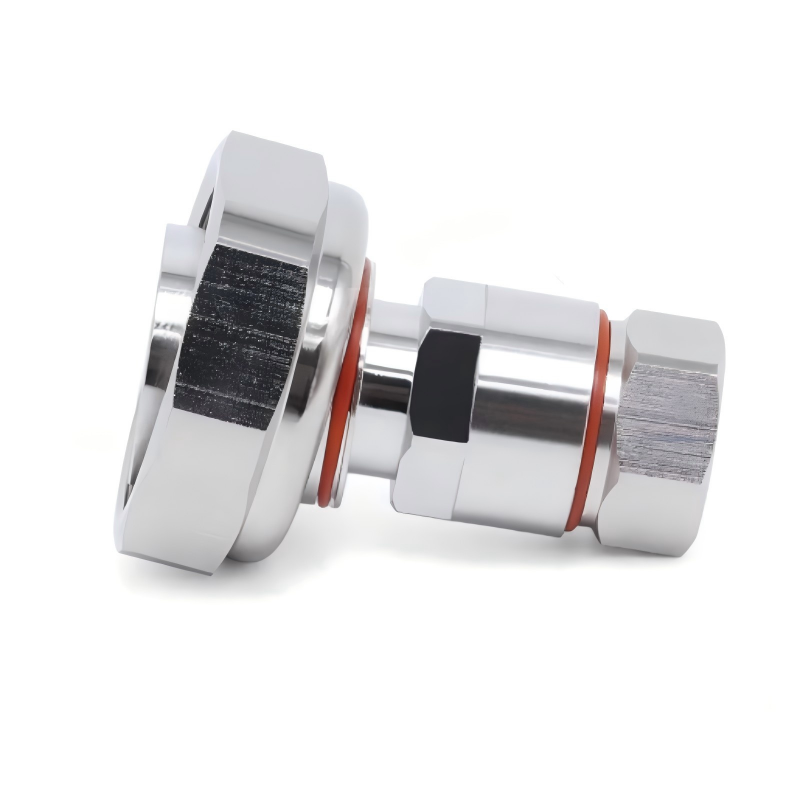

Physical product display
7/16-J-1/2S RF Connector with 50Ω Impedance Nickel-Plated Brass and PTFE Insulator for Stable Signal Transmission 7/16-J-1/2S RF Connector with 50Ω Impedance Nickel-Plated Brass and PTFE Insulator for Stable Signal Transmission

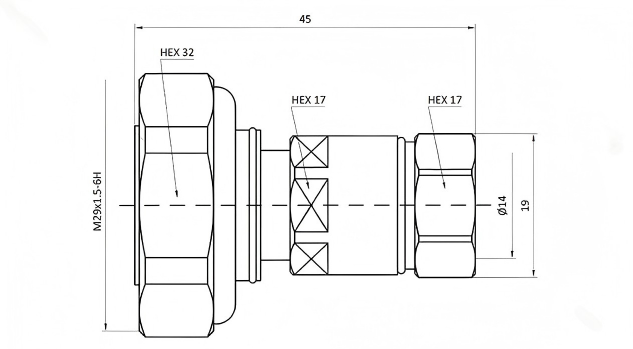

Product external dimensions
7/16-J-1/2S RF Connector with 50Ω Impedance Nickel-Plated Brass and PTFE Insulator for Stable Signal Transmission
Related product recommendations
7/16-J-1/2S RF Connector with 50Ω Impedance Nickel-Plated Brass and PTFE Insulator for Stable Signal Transmission 7/16-J-1/2S RF Connector with 50Ω Impedance Nickel-Plated Brass and PTFE Insulator for Stable Signal Transmission
Display of Strength
Office area
7/16-J-1/2S RF Connector with 50Ω Impedance Nickel-Plated Brass and PTFE Insulator for Stable Signal Transmission 7/16-J-1/2S RF Connector with 50Ω Impedance Nickel-Plated Brass and PTFE Insulator for Stable Signal Transmission
Production Plant Area
Machining production workshop
7/16-J-1/2S RF Connector with 50Ω Impedance Nickel-Plated Brass and PTFE Insulator for Stable Signal Transmission 7/16-J-1/2S RF Connector with 50Ω Impedance Nickel-Plated Brass and PTFE Insulator for Stable Signal Transmission
Precision Assembly Production Workshop
7/16-J-1/2S RF Connector with 50Ω Impedance Nickel-Plated Brass and PTFE Insulator for Stable Signal Transmission 7/16-J-1/2S RF Connector with 50Ω Impedance Nickel-Plated Brass and PTFE Insulator for Stable Signal Transmission
Glass-to-metal sealed production workshop
7/16-J-1/2S RF Connector with 50Ω Impedance Nickel-Plated Brass and PTFE Insulator for Stable Signal Transmission 7/16-J-1/2S RF Connector with 50Ω Impedance Nickel-Plated Brass and PTFE Insulator for Stable Signal Transmission
Obtained Certification Certificate
7/16-J-1/2S RF Connector with 50Ω Impedance Nickel-Plated Brass and PTFE Insulator for Stable Signal Transmission 7/16-J-1/2S RF Connector with 50Ω Impedance Nickel-Plated Brass and PTFE Insulator for Stable Signal Transmission
Customer visit
7/16-J-1/2S RF Connector with 50Ω Impedance Nickel-Plated Brass and PTFE Insulator for Stable Signal Transmission 7/16-J-1/2S RF Connector with 50Ω Impedance Nickel-Plated Brass and PTFE Insulator for Stable Signal Transmission
Product packaging
7/16-J-1/2S RF Connector with 50Ω Impedance Nickel-Plated Brass and PTFE Insulator for Stable Signal Transmission 7/16-J-1/2S RF Connector with 50Ω Impedance Nickel-Plated Brass and PTFE Insulator for Stable Signal Transmission
Packaging and Shipping
7/16-J-1/2S RF Connector with 50Ω Impedance Nickel-Plated Brass and PTFE Insulator for Stable Signal Transmission
  • Standard export carton
  • As per customized specifications such as logo or others According to customers' requirements
  • Delivery time:Within 24 hours for stocks, 3-4 weeks for mass production orders. (based on different quantities,ODM, etc.)
FAQ
Q: Are you trading company or manufacturer?
A: Our company is a comprehensive manufacturer with 17 years of r&d, manufacturing and sales of aerospace and commercial RF microwave transmission components.
Q:What are the main products of your company?
A:Main products: RF coaxial connectors and adapters, RF cable assemblies, miniature rectangular electrical connectors and cable assemblies, coaxial waveguide converters and cable assemblies, glass insulator sealed connectors and other microwave products.
Q: Does your company accept customized products?
A: We accept ODM.
Q: Does your company provide free samples?
A: We support free samples with freight paid on delivery.
Q: What is the minimum order quantity of your company's products?
A: 200 pieces. The price is more expensive under 200 piece .
Q: Which logistics company does your company ship through?
A:Our company cooperates with international logistics companies DHL.UPS,FedexTX,TNT all year round to ensure our customers receive their goods quickly with the lowest shipping cost. There are also air and sea logistics.
Q: How long does it usually take to receive the goods?
A: Generally, 3-8 working days for international express, 5-8 working days for air freight.
Q:What payment methods does your company accept?
A: We accept L/C, T/T, Western Union, Trade Assurance (credit card &T/T)
Q: How long is your warranty?
A: The warranty period is three months.
