BMA Male Connector Gold Plated Brass MIL-STD-348 Compliant RF Coaxial Connector DC-6GHz Frequency Range
BMA Male Connector Gold Plated Brass MIL-STD-348 Compliant RF Coaxial Connector DC-6GHz Frequency Range
BMA Male Connector Gold Plated Brass MIL-STD-348 Compliant RF Coaxial Connector DC-6GHz Frequency Range
BMA Male Connector Gold Plated Brass MIL-STD-348 Compliant RF Coaxial Connector DC-6GHz Frequency Range
BMA Male Connector Gold Plated Brass MIL-STD-348 Compliant RF Coaxial Connector DC-6GHz Frequency Range
BMA Male Connector Gold Plated Brass MIL-STD-348 Compliant RF Coaxial Connector DC-6GHz Frequency Range
Specifications
Brand Name :
ZSX
Model Number :
BMA-JE
Certification :
ISO9001
Place of Origin :
China
MOQ :
10 pcs
Price :
$2.56 --$3.50(Depending on the quantity )
Payment Terms :
T/T,D/P,Western Union
Supply Ability :
1000000Pcs/Year
Delivery Time :
5-8 Days
Packaging Details :
Carton packaging
Name :
BMA Connector
Gender :
Male
Boday Material :
Gold plated brass
Insulator material :
PTFE
VSWR :
≤1.2
Temperature range :
-40℃~+155℃
Description

BMA-JE BMA Male Connector Panel Socket PCB Connector BMA-JHD

BMA-JE is an ultra-small push-in (slide-in) blind mating RF coaxial connector that complies with the MIL-STD-348 interface specification. It is a BMA series standard PCB board end male (male) direct insertion installation type product.

Product display
Product Performance Details
Product model BMA-JE Dielectric constant ≥5000MΩ
Characteristic impedance 50 ohm Body material Gold-plated brass
Frequency range DC-6GHz Central conductor Gold-plated brass
Voltage standing wave ratio ≤1.2 Insulator material PTFE
Medium pressure resistance ≥1000V RMS ,50hz, at sea level Durability ≥500 Cycles
Contact resistance Center contact:≤3mΩ Outer contact:≤2mΩ Temperature range -40℃~+155℃

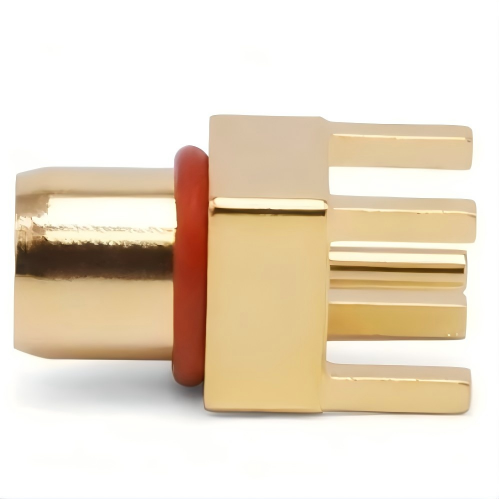

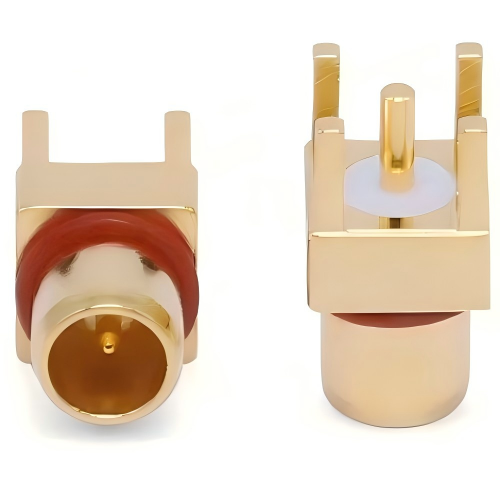

Physical product display
BMA Male Connector Gold Plated Brass MIL-STD-348 Compliant RF Coaxial Connector DC-6GHz Frequency Range BMA Male Connector Gold Plated Brass MIL-STD-348 Compliant RF Coaxial Connector DC-6GHz Frequency Range

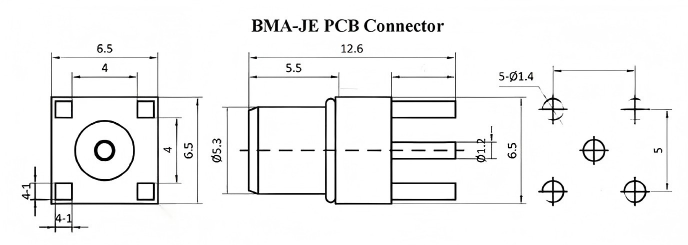

Product external dimensions
BMA Male Connector Gold Plated Brass MIL-STD-348 Compliant RF Coaxial Connector DC-6GHz Frequency Range
Related product recommendations
BMA Male Connector Gold Plated Brass MIL-STD-348 Compliant RF Coaxial Connector DC-6GHz Frequency Range BMA Male Connector Gold Plated Brass MIL-STD-348 Compliant RF Coaxial Connector DC-6GHz Frequency Range
Display of Strength
Office area
BMA Male Connector Gold Plated Brass MIL-STD-348 Compliant RF Coaxial Connector DC-6GHz Frequency Range BMA Male Connector Gold Plated Brass MIL-STD-348 Compliant RF Coaxial Connector DC-6GHz Frequency Range
Production Plant Area
Machining production workshop
BMA Male Connector Gold Plated Brass MIL-STD-348 Compliant RF Coaxial Connector DC-6GHz Frequency Range BMA Male Connector Gold Plated Brass MIL-STD-348 Compliant RF Coaxial Connector DC-6GHz Frequency Range
Precision Assembly Production Workshop
BMA Male Connector Gold Plated Brass MIL-STD-348 Compliant RF Coaxial Connector DC-6GHz Frequency Range BMA Male Connector Gold Plated Brass MIL-STD-348 Compliant RF Coaxial Connector DC-6GHz Frequency Range
Glass-to-metal sealed production workshop
BMA Male Connector Gold Plated Brass MIL-STD-348 Compliant RF Coaxial Connector DC-6GHz Frequency Range BMA Male Connector Gold Plated Brass MIL-STD-348 Compliant RF Coaxial Connector DC-6GHz Frequency Range
Obtained Certification Certificate
BMA Male Connector Gold Plated Brass MIL-STD-348 Compliant RF Coaxial Connector DC-6GHz Frequency Range BMA Male Connector Gold Plated Brass MIL-STD-348 Compliant RF Coaxial Connector DC-6GHz Frequency Range
Customer visit
BMA Male Connector Gold Plated Brass MIL-STD-348 Compliant RF Coaxial Connector DC-6GHz Frequency Range BMA Male Connector Gold Plated Brass MIL-STD-348 Compliant RF Coaxial Connector DC-6GHz Frequency Range
Product packaging
BMA Male Connector Gold Plated Brass MIL-STD-348 Compliant RF Coaxial Connector DC-6GHz Frequency Range BMA Male Connector Gold Plated Brass MIL-STD-348 Compliant RF Coaxial Connector DC-6GHz Frequency Range
Packaging and Shipping
BMA Male Connector Gold Plated Brass MIL-STD-348 Compliant RF Coaxial Connector DC-6GHz Frequency Range
  • Standard export carton
  • As per customized specifications such as logo or others According to customers' requirements
  • Delivery time:Within 24 hours for stocks, 3-4 weeks for mass production orders. (based on different quantities,ODM, etc.)
FAQ
Q: Are you trading company or manufacturer?
A: Our company is a comprehensive manufacturer with 17 years of r&d, manufacturing and sales of aerospace and commercial RF microwave transmission components.
Q:What are the main products of your company?
A:Main products: RF coaxial connectors and adapters, RF cable assemblies, miniature rectangular electrical connectors and cable assemblies, coaxial waveguide converters and cable assemblies, glass insulator sealed connectors and other microwave products.
Q: Does your company accept customized products?
A: We accept ODM.
Q: Does your company provide free samples?
A: We support free samples with freight paid on delivery.
Q: What is the minimum order quantity of your company's products?
A: 200 pieces. The price is more expensive under 200 piece .
Q: Which logistics company does your company ship through?
A:Our company cooperates with international logistics companies DHL.UPS,FedexTX,TNT all year round to ensure our customers receive their goods quickly with the lowest shipping cost. There are also air and sea logistics.
Q: How long does it usually take to receive the goods?
A: Generally, 3-8 working days for international express, 5-8 working days for air freight.
Q:What payment methods does your company accept?
A: We accept L/C, T/T, Western Union, Trade Assurance (credit card &T/T)
Q: How long is your warranty?
A: The warranty period is three months.
