Small BMA Connector 50 Ohm SMA 2 Hole Flange Connector ODM
Small BMA Connector 50 Ohm SMA 2 Hole Flange Connector ODM
Small BMA Connector 50 Ohm SMA 2 Hole Flange Connector ODM
Small BMA Connector 50 Ohm SMA 2 Hole Flange Connector ODM
Small BMA Connector 50 Ohm SMA 2 Hole Flange Connector ODM
Small BMA Connector 50 Ohm SMA 2 Hole Flange Connector ODM
Specifications
Brand Name :
ZSX
Model Number :
BMA-KFB2
Certification :
ISO9001
Place of Origin :
China
MOQ :
50
Price :
$1.18 --$1.55(Depending on the quantity )
Payment Terms :
T/T,D/P,Western Union
Supply Ability :
1000000Pcs/Year
Delivery Time :
5-8 Days
Packaging Details :
Carton packaging
Name :
BMA Connector
Gender :
Female
Boday Material :
Nickel plated brass
Insulator material :
PTFE
VSWR :
≤1.2
Temperature range :
-40℃~+155℃
Description

BMA Jack Female 2 Holes Flange Connector

BMA connector is an ultra-small blind-plug sliding type RF coaxial connector. By using blind mating, even if there is a slight misalignment, the plug can be pressed into the socket with sufficient pressure to achieve mating. Subsequently, the internal mechanical mechanism ensures a firm electrical connection and correct alignment. In terms of structural dimensions, it is SMA series. The interface adopts air interface, which is small in size. The shell is usually made of stainless steel or passivated stainless steel. The inner conductor is beryllium copper with gold plating, and the dielectric material is PTFE. It is widely used in the connection of various microwave circuits, especially suitable for blind insertion in chassis and cabinets, which is conducive to the modularization of the entire machine system such as radar. It is also often used in high-speed high-density panels and backplanes, high-speed digital signal systems, etc.
Product display
Product Performance Details
Product model BMA-KFB2 Dielectric constant ≥5000MΩ
Characteristic impedance 50 ohm Body material Nickel-plated brass
Frequency range DC-18GHz Central conductor Gold-plated brass
Voltage standing wave ratio ≤1.2 Insulator material PTFE
Medium pressure resistance ≥1000V RMS ,50hz, at sea level Durability ≥500 Cycles
Contact resistance Center contact:≤3mΩ Outer contact:≤2mΩ Temperature range -40℃~+155℃

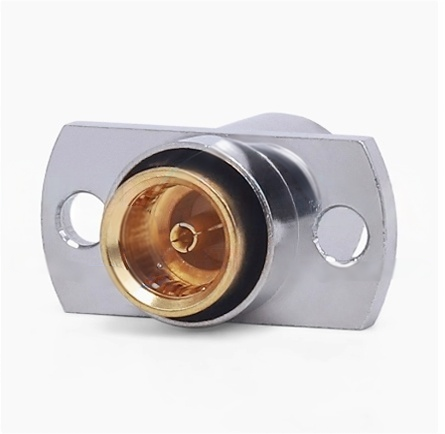

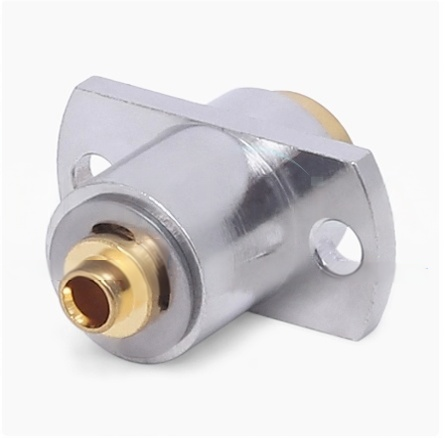

Physical product display
Small BMA Connector 50 Ohm SMA 2 Hole Flange Connector ODM Small BMA Connector 50 Ohm SMA 2 Hole Flange Connector ODM

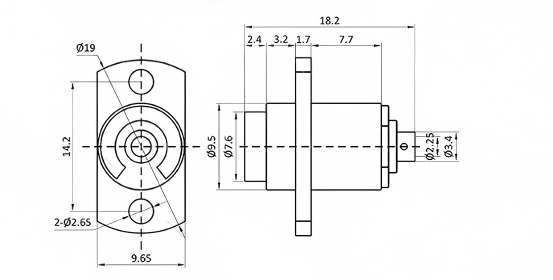

Product external dimensions
Small BMA Connector 50 Ohm SMA 2 Hole Flange Connector ODM

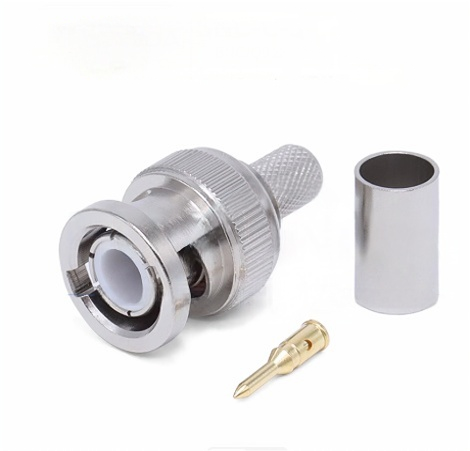

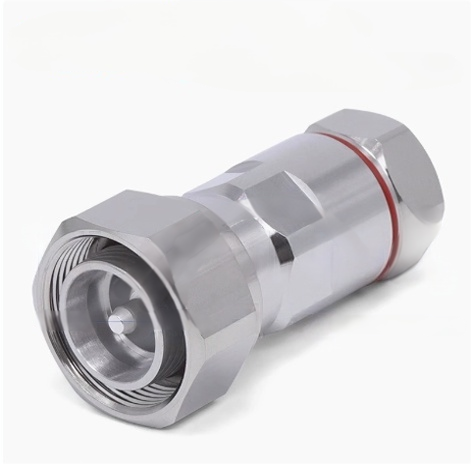

Related product recommendations
Small BMA Connector 50 Ohm SMA 2 Hole Flange Connector ODM Small BMA Connector 50 Ohm SMA 2 Hole Flange Connector ODM
Display of Strength
Office area
Small BMA Connector 50 Ohm SMA 2 Hole Flange Connector ODM Small BMA Connector 50 Ohm SMA 2 Hole Flange Connector ODM
Production Plant Area
Machining production workshop
Small BMA Connector 50 Ohm SMA 2 Hole Flange Connector ODM Small BMA Connector 50 Ohm SMA 2 Hole Flange Connector ODM
Precision Assembly Production Workshop
Small BMA Connector 50 Ohm SMA 2 Hole Flange Connector ODM Small BMA Connector 50 Ohm SMA 2 Hole Flange Connector ODM
Glass-to-metal sealed production workshop
Small BMA Connector 50 Ohm SMA 2 Hole Flange Connector ODM Small BMA Connector 50 Ohm SMA 2 Hole Flange Connector ODM
Obtained Certification Certificate
Small BMA Connector 50 Ohm SMA 2 Hole Flange Connector ODM Small BMA Connector 50 Ohm SMA 2 Hole Flange Connector ODM
Customer visit
Small BMA Connector 50 Ohm SMA 2 Hole Flange Connector ODM Small BMA Connector 50 Ohm SMA 2 Hole Flange Connector ODM
Product packaging
Small BMA Connector 50 Ohm SMA 2 Hole Flange Connector ODM Small BMA Connector 50 Ohm SMA 2 Hole Flange Connector ODM
Packaging and Shipping
Small BMA Connector 50 Ohm SMA 2 Hole Flange Connector ODM
  • Standard export carton
  • As per customized specifications such as logo or others According to customers' requirements
  • Delivery time:Within 24 hours for stocks, 3-4 weeks for mass production orders. (based on different quantities,ODM, etc.)
FAQ
Q: Are you trading company or manufacturer?
A: Our company is a comprehensive manufacturer with 17 years of r&d, manufacturing and sales of military and commercial RF microwave transmission components.
Q:What are the main products of your company?
A:Main products: RF coaxial connectors and adapters, RF cable assemblies, miniature rectangular electrical connectors and cable assemblies, coaxial waveguide converters and cable assemblies, glass insulator sealed connectors and other microwave products.
Q: Does your company accept customized products?
A: We accept ODM.
Q: Does your company provide free samples?
A: We support free samples with freight paid on delivery.
Q: What is the minimum order quantity of your company's products?
A: 200 pieces. The price is more expensive under 200 piece .
Q: Which logistics company does your company ship through?
A:Our company cooperates with international logistics companies DHL.UPS,FedexTX,TNT all year round to ensure our customers receive their goods quickly with the lowest shipping cost. There are also air and sea logistics.
Q: How long does it usually take to receive the goods?
A: Generally, 3-8 working days for international express, 5-8 working days for air freight.
Q:What payment methods does your company accept?
A: We accept L/C, T/T, Western Union, Trade Assurance (credit card &T/T)
Q: How long is your warranty?
A: The warranty period is three months.
